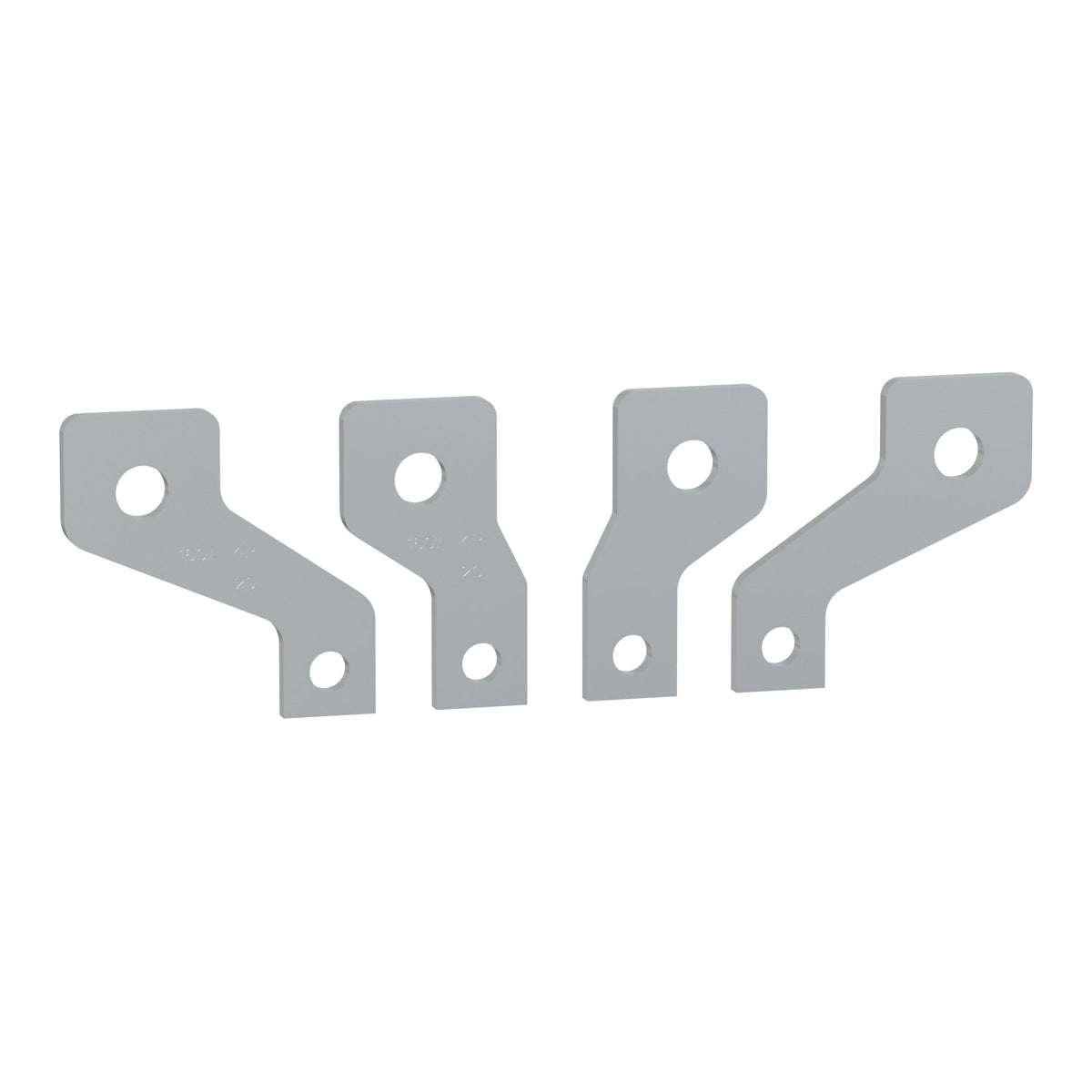

The Schneider Electric G20SPDR4P is a set of 4-pole terminal extensions, or spreaders, for the GoPact MCCB 200, rated for 160 A continuous current. Attached to the breaker's standard terminals, they increase the connection pitch from 25 mm to 45 mm to match wider busbar or cable spacing, and are made from ETP-grade copper.
Fit the G20SPDR4P when the GoPact MCCB 200 must connect to busbar or cable work spaced wider than the breaker's standard 25 mm terminal pitch - the extension bridges that gap without a custom busbar bend. The 45 mm pitch and 160 A rating are specific to this breaker frame and pole count; a 3P GoPact MCCB 200 needs the 3P version instead.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Terminal extension |
| Device application | Connection |
| Range compatibility | GoPact MCCB 200 |
| Poles description | 4P |
| Quantity | 8 |
| Mounting position | Straight |
| Localisation on device | Upstream, Downstream |
|---|---|
| [In] rated current | 160 A |
| Connection pitch | 45 mm |
| Conductor material | Copper |
| Warranty (in months) | 18 |
|---|
| Part number | G20SPDR4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 13.5 cm |
| Package 1 Weight | 480 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 90.340 kg |
| Shipping weight | 0.48 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G20SPDR4P is 853890.
G20SPDR4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
