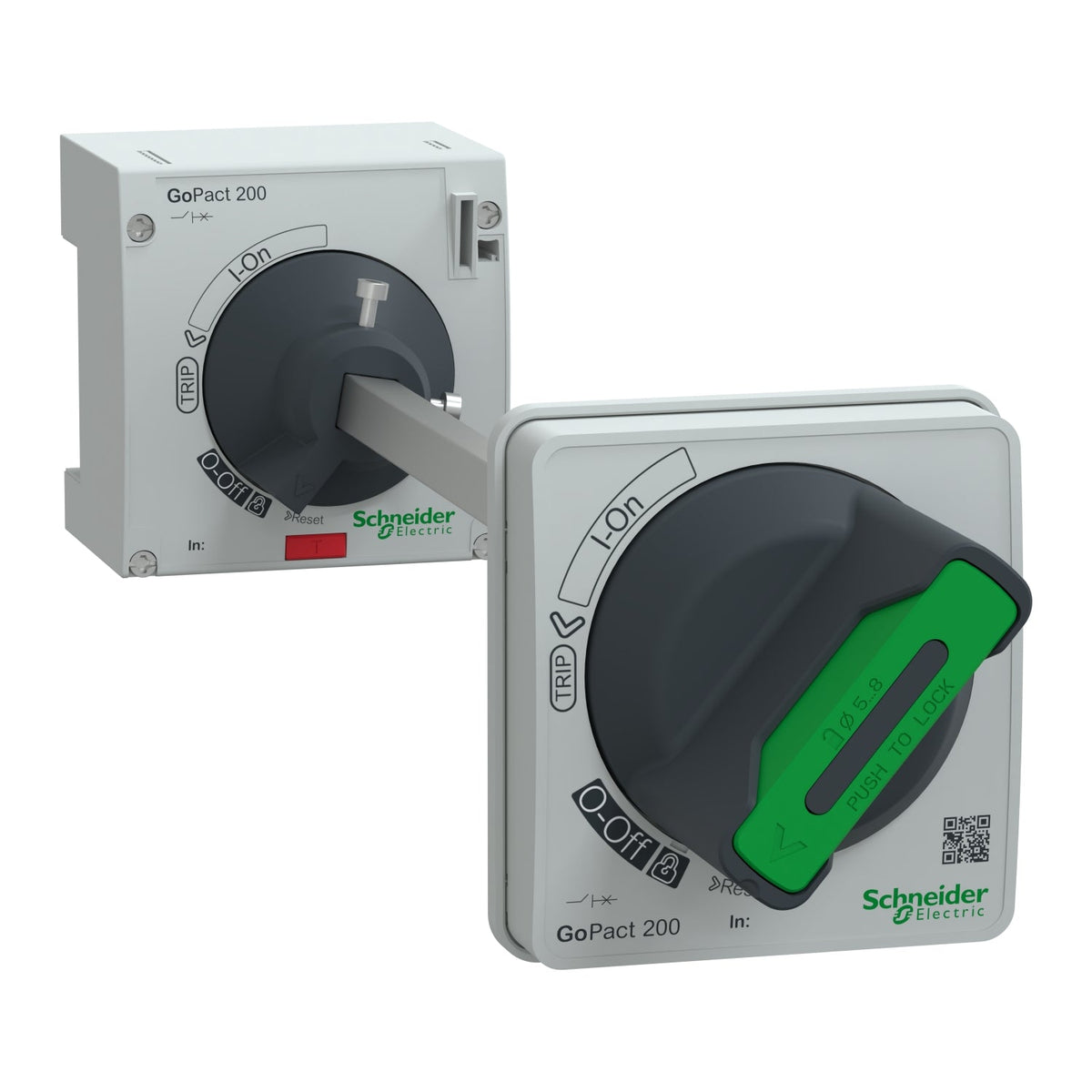

The Schneider Electric G20ROTE is an extended rotary handle for the GoPact MCCB 200, with a 250 mm shaft that lets the breaker be operated from the switchboard front panel while mounted further back in the enclosure. A breaker fitted with this handle carries IP54 degree of protection, and the handle can be padlocked in the OFF position with 1 to 3 padlocks (not supplied, 5-8 mm shackle diameter). The body is grey (RAL 7035) and the handle itself dark grey (RAL 7016).
Specify the G20ROTE when the GoPact MCCB 200 is mounted behind a switchboard door rather than at the panel face - the 250 mm shaft carries the operating spindle through to the door while keeping the breaker itself enclosed. Its IP54 rating, higher than the IP20 of the direct-mount handle, reflects the door-seal interface this extended version creates; use the direct handle instead if the breaker already sits at the panel front.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rotary handle |
| Device application | Control |
| Range compatibility | GoPact MCCB 200 |
| Rotary handle mounting style | Extended |
| Rotary handle mounting location | Front |
| Shaft length | 250 mm |
| Handle colour | Grey |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
| IP degree of protection | IP54 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | G20ROTE |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.8 cm |
| Package 1 Width | 9.6 cm |
| Package 1 Length | 28.7 cm |
| Package 1 Weight | 650 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.291 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 108 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 83.992 kg |
| Shipping weight | 0.65 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G20ROTE is 853890.
G20ROTE ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
