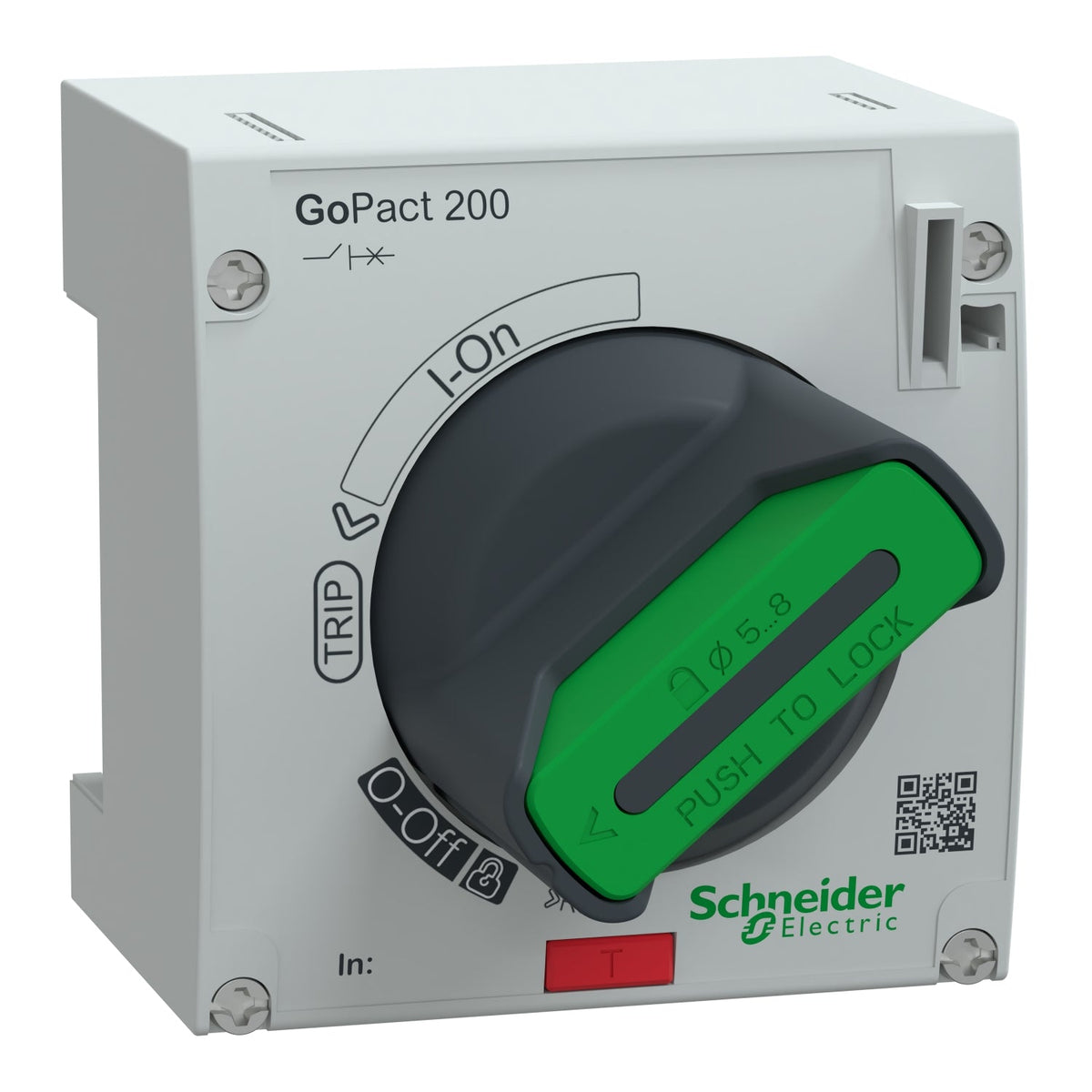

The Schneider Electric G20ROTDS is a direct rotary handle for the GoPact MCCB 200, mounted on the front face of the breaker for local manual operation. A breaker fitted with this handle carries IP20 degree of protection, and the handle can be padlocked in the OFF position with 1 to 3 padlocks (not supplied, 5-8 mm shackle diameter). The body is grey (RAL 7035) and the handle itself dark grey (RAL 7016).
Choose the G20ROTDS direct handle when the GoPact MCCB 200 sits at the front of the switchboard and operators reach the breaker directly - its IP20 rating suits an enclosed panel interior rather than an outdoor or front-of-door application. Where the breaker is mounted deeper in the panel and must be operated from the switchboard door, the extended rotary handle with its longer shaft and IP54 rating is the better fit, not this direct version.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rotary handle |
| Device application | Control |
| Range compatibility | GoPact MCCB 200 |
| Rotary handle mounting style | Direct |
| Rotary handle mounting location | Front |
| Handle colour | Grey |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
| IP degree of protection | IP20 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | G20ROTDS |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.8 cm |
| Package 1 Width | 8.9 cm |
| Package 1 Length | 8.9 cm |
| Package 1 Weight | 350 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.355 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 94.180 kg |
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G20ROTDS is 853890.
G20ROTDS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
