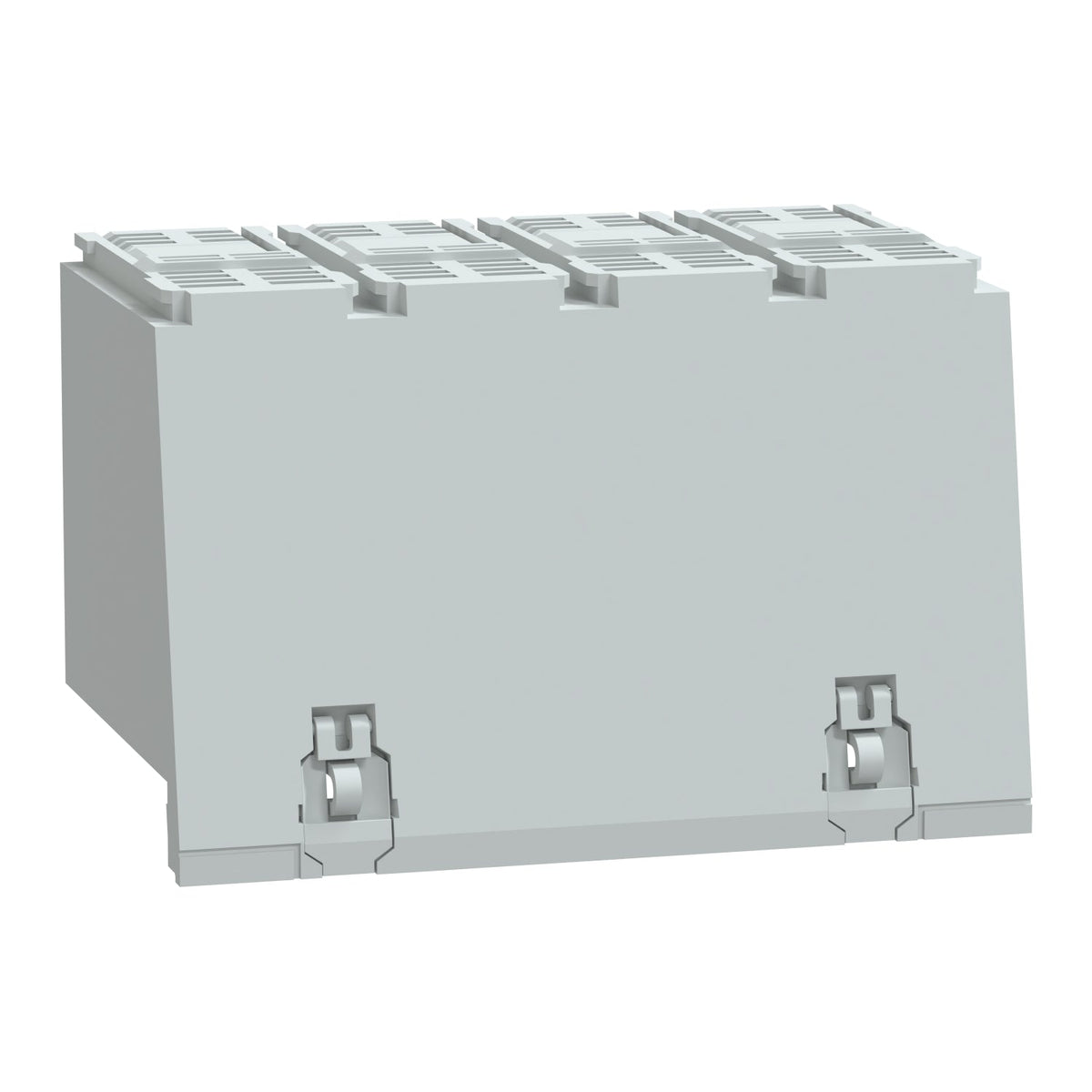

The Schneider Electric G20LTSHD4P is a 4-pole long terminal shield for the GoPact MCCB 200, used on fixed or plug-in versions fitted with spreaders or bare cable connectors. It covers the full terminal length to protect against direct contact with the power circuit, giving IP40 degree of protection to IEC 60529, and can be mounted upstream or downstream of the breaker.
Fit the G20LTSHD4P on 4-pole GoPact MCCB 200 breakers that use spreaders or bare cable connectors, where the longer shield length is needed to cover the extended terminal reach those connectors create. It is specific to the 4P configuration and the 200 frame - a GoPact MCCB 200 in the 3-pole configuration needs the matching 3P variant instead.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Long terminal shield |
| Device application | Insulation |
| Range compatibility | GoPact MCCB 200 |
| Poles description | 4P |
| Quantity | 2 |
| Localisation on device | Upstream, Downstream |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Warranty (in months) | 18 |
|---|
| Part number | G20LTSHD4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.1 cm |
| Package 1 Width | 12.1 cm |
| Package 1 Length | 16.1 cm |
| Package 1 Weight | 86 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 64 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 19.044 kg |
| Shipping weight | 0.086 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G20LTSHD4P is 853890.
G20LTSHD4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
