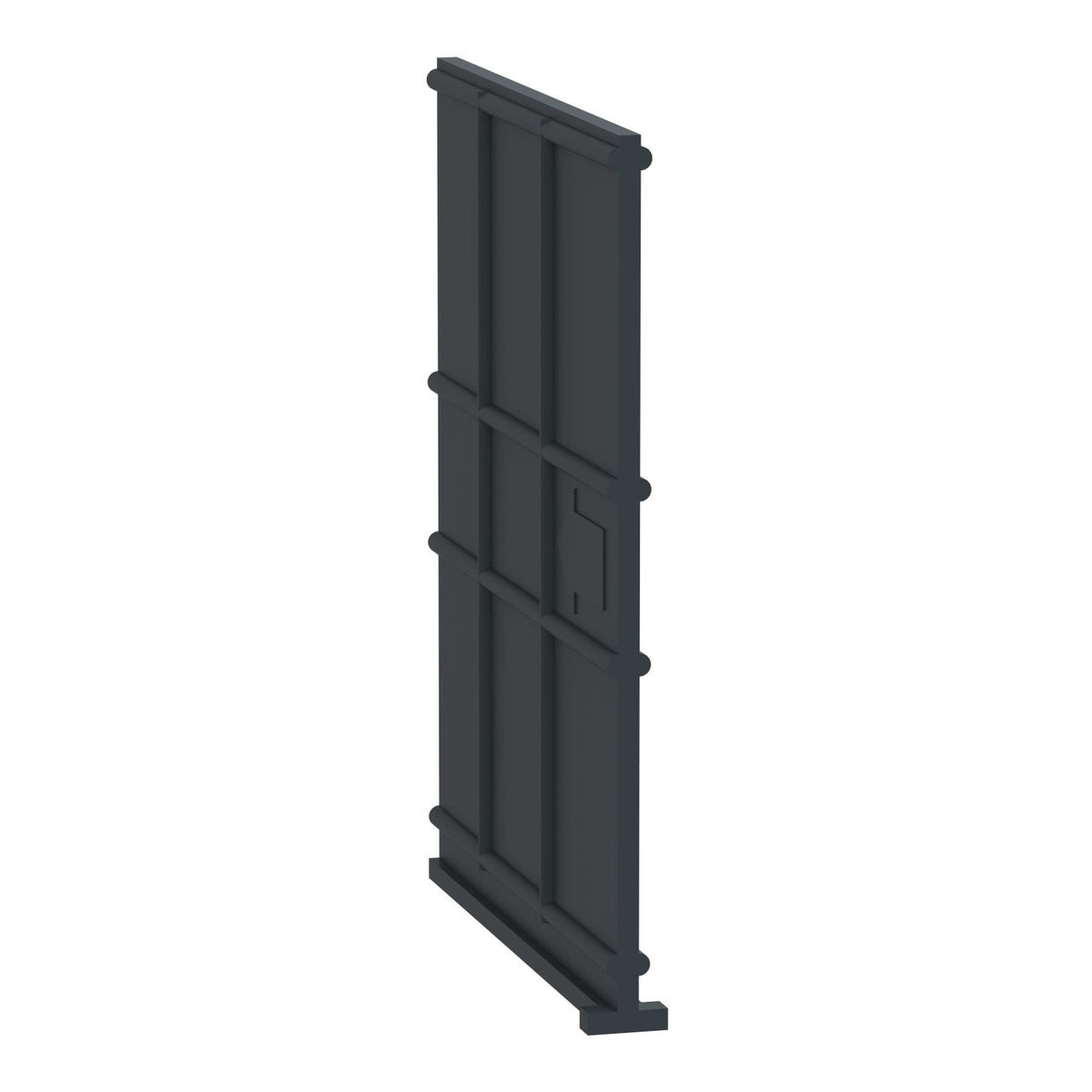

The Schneider Electric G20FASB2 is a set of 2 interphase barriers for the GoPact MCCB 200, used in both 3-pole and 4-pole versions. Each barrier measures 60 mm wide by 75 mm high and 1.5 mm thick, and clips directly onto the circuit breaker at the power-connection points for added insulation between phases.
Order the G20FASB2 as a spare or replacement set when a GoPact MCCB 200 installation needs extra phase-to-phase insulation at the power terminals, for example when conductors are routed close together. Because a set covers only 2 of the barrier positions, order multiples to cover every phase gap on a 3-pole or 4-pole breaker.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Interphase barrier |
| Device application | Insulation |
| Range compatibility | GoPact MCCB 200 |
| Poles description | 3P, 4P |
| Quantity | 2 |
| Localisation on device | Upstream, Downstream |
|---|---|
| Width | 60 mm |
| Height | 75 mm |
| thickness | 1.5 mm |
| Accessory / separate part category | Spare part |
| Warranty (in months) | 18 |
|---|
| Part number | G20FASB2 |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1 cm |
| Package 1 Width | 28 cm |
| Package 1 Length | 19.5 cm |
| Package 1 Weight | 0.15 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 24 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 384 |
| Package 3 Height | 149 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 72.6 kg |
| Shipping weight | 0.15 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G20FASB2 is 853890.
G20FASB2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
