Schneider Electric G20-25UVR415AC GoPact MCCB 200-250 UV Release 380-415 V AC Circuit Breaker Accessory

% $-47.14

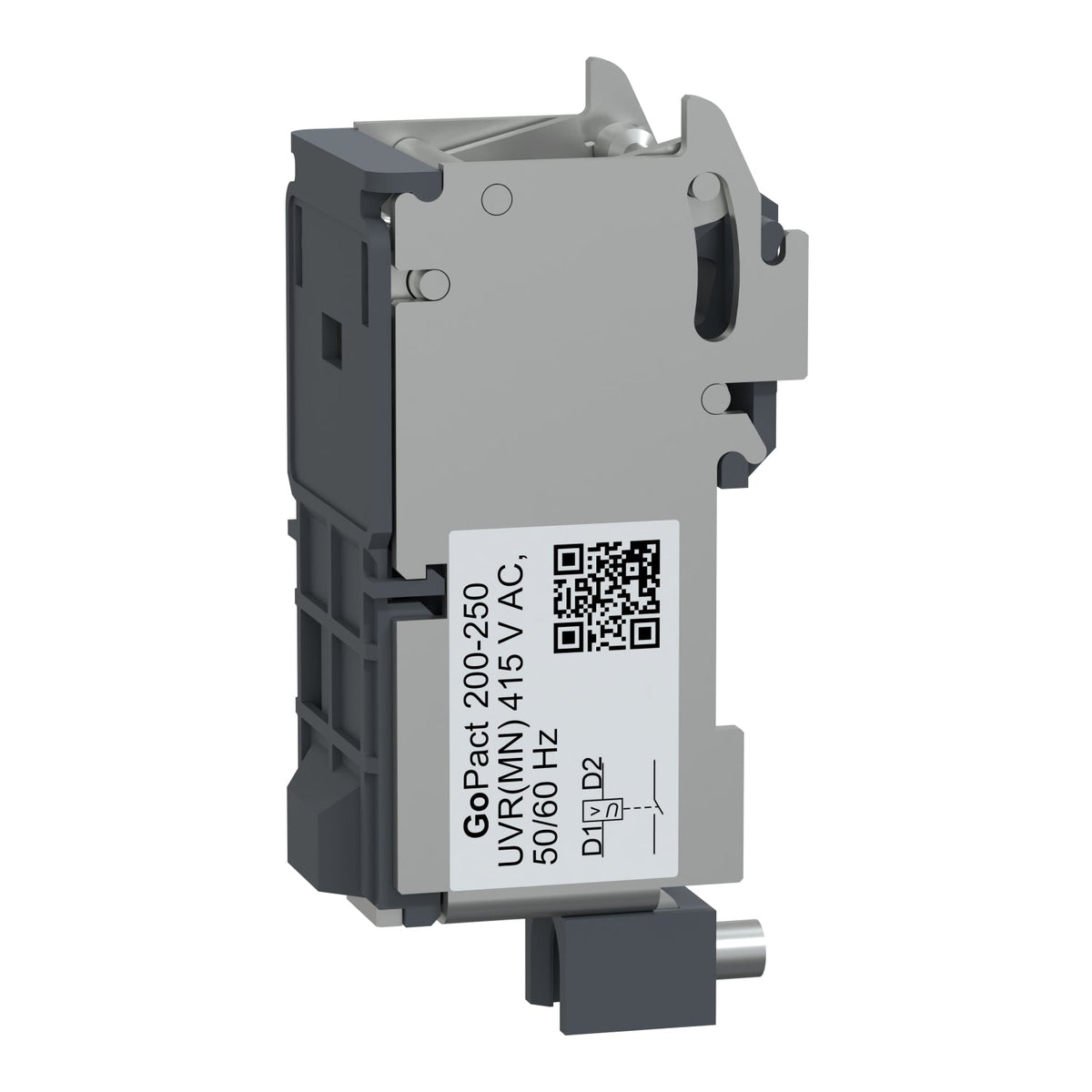

Schneider Electric G20-25UVR415AC GoPact MCCB 200-250 undervoltage release accessory
Schneider Electric G20-25UVR415AC GoPact MCCB 200-250 undervoltage release accessory

Schneider Electric G20-25UVR415AC GoPact MCCB 200-250 UV Release 380-415 V AC Circuit Breaker Accessory

Brand: Schneider Electric
Reference No: G20-25UVR415AC
Catalog No: G20-25UVR415AC
Series: GoPact MCCB
Tariff Code (HS): 853890
Rated Voltage: 415 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$47.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric G20-25UVR415AC is an MN undervoltage release built for a 415 V AC 50/60 Hz control circuit, fitting both the GoPact MCCB 200 and GoPact MCCB 250. Opening is guaranteed once the supply voltage falls below 0.35 times Un, possible but not guaranteed up to 0.7 times Un, and the breaker is held closed once the supply recovers above 0.85 times Un. Maximum response time is 25 ms.

Technical Specifications

Reference G20-25UVR415AC
Brand Schneider Electric
Range GoPact MCCB
Product / Component Type Voltage release
Device Short Name MN
Device Application Control
Compatible Breakers GoPact MCCB 200, GoPact MCCB 250
Release Type Undervoltage release
[Uc] Control Circuit Voltage 415 V AC 50/60 Hz
Threshold Tripping Voltage 0.35...0.7 Un opening, 0.85...1.1 Un closing
Max Holding Power Consumption 3.5 VA
Max Pick-up Power Consumption 5 VA
Response Time 25 ms

Selection Notes

Use the 415 V AC coil version instead of the 240 V AC G20-25UVR240AC when the panel control circuit already runs at 380/415 V AC, which removes the need for a separate step-down transformer feeding this release. Because the opening threshold tracks a percentage of Un rather than an absolute voltage, the trip point scales with the supply it is wired to, so confirm the actual control-circuit voltage before ordering.

Technical Details

Short Description
Schneider Electric G20-25UVR415AC MN undervoltage release for GoPact MCCB 200/250, 415 V AC, 25 ms response time.
Rated Voltage (VAC)
415 V AC
Catalog No
G20-25UVR415AC
Delivery Date (Days)
30 days
Model Number
MN Undervoltage Release
Tariff Code
853890
