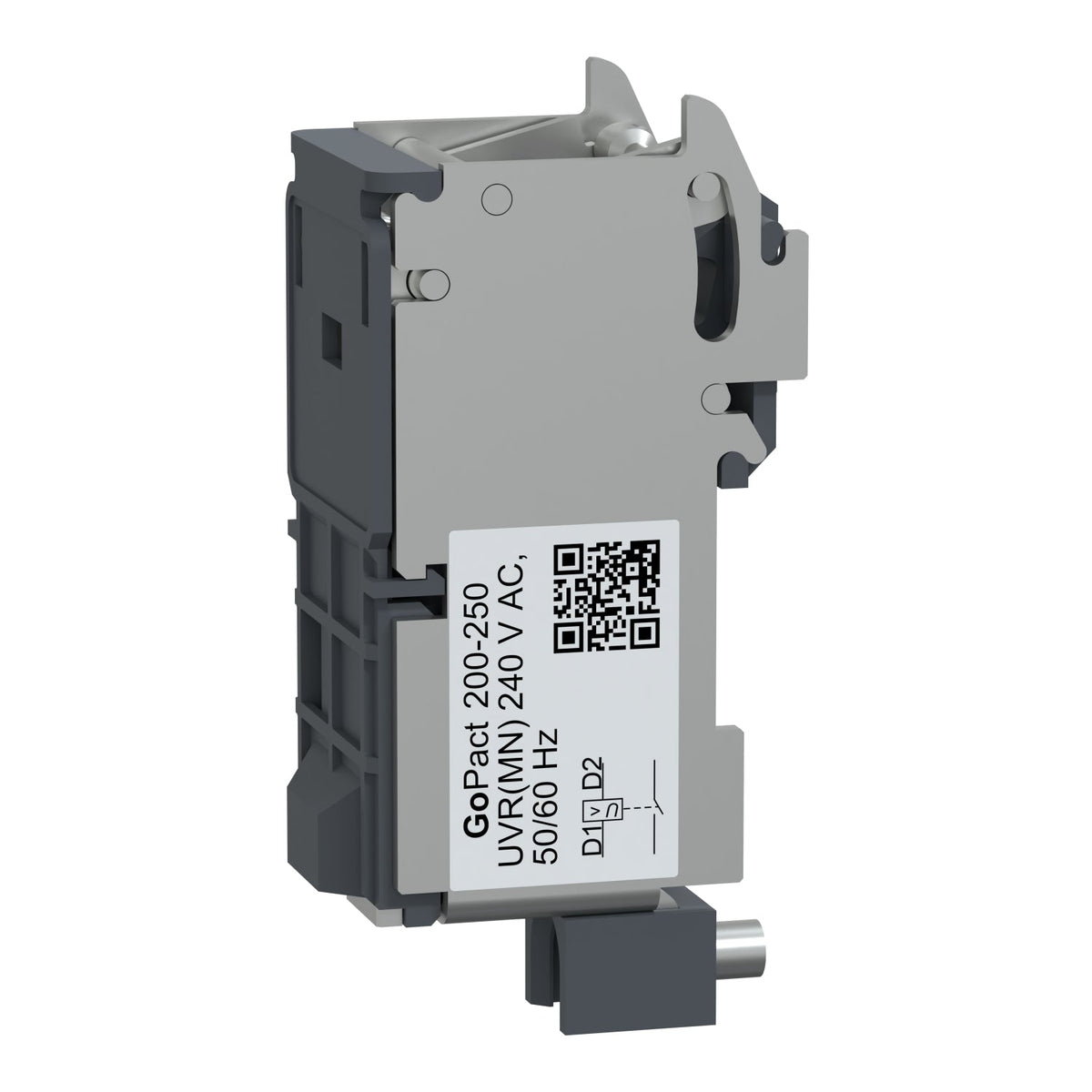

The Schneider Electric G20-25UVR240AC is an MN undervoltage release common to the GoPact MCCB 200 and GoPact MCCB 250, supplied from a 240 V AC 50/60 Hz control circuit. It opens the breaker once the supply voltage drops below 0.7 times Un, with opening guaranteed below 0.35 times Un, and holds the breaker closed above 0.85 times Un. Maximum response time is 25 ms.
Fit the G20-25UVR240AC where a GoPact MCCB 200 or 250 must drop out automatically on loss or deep sag of a 240 V AC control supply, which is common on interlocked or safety-chain circuits. The opening band between 0.35 and 0.7 times Un is a possible-but-not-guaranteed zone, so trip-time coordination studies should use the 0.35 Un guaranteed-open threshold, not the 0.7 Un upper limit.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Voltage release |
| Device short name | MN |
| Device application | Control |
| Range compatibility | GoPact MCCB 200, GoPact MCCB 250 |
| Voltage release type | Undervoltage release |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Threshold tripping voltage | 0.35...0.7 Un opening, 0.85...1.1 Un closing |
|---|---|
| Max supply holding power consumption | 3.5 VA |
| Max supply pick-up power consumption | 5 VA |
| Response time | 25 ms |
| Warranty (in months) | 18 |
|---|
| Part number | G20-25UVR240AC |
|---|---|
| Type designation | MN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 100 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.315 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 45.540 kg |
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
