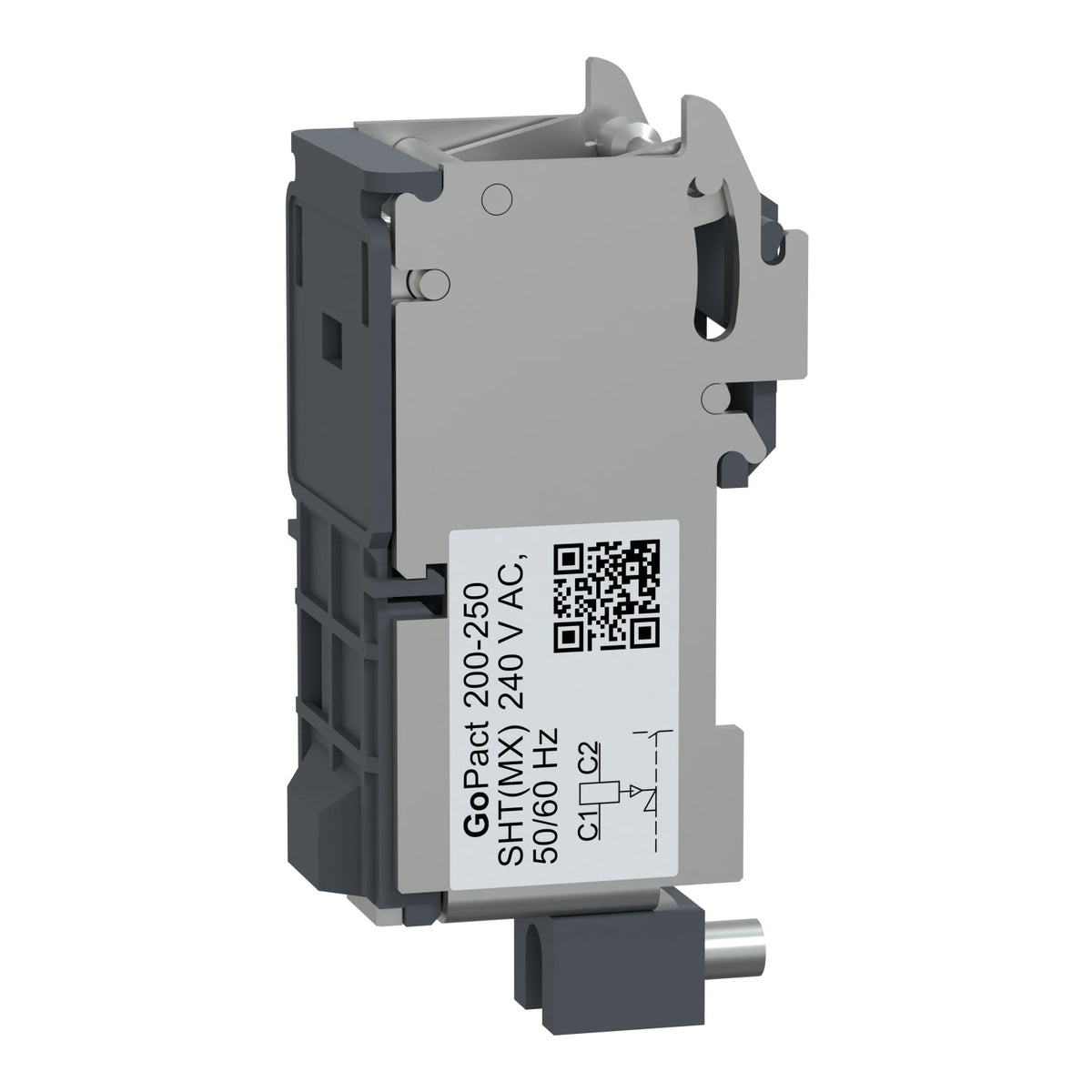

The Schneider Electric G20-25SHT240AC is an MX shunt-trip release that fits both the GoPact MCCB 200 and GoPact MCCB 250, powered from a 240 V AC 50/60 Hz control circuit. It opens the breaker on command once the supply reaches 0.7 times Un, giving a remote-trip signal independent of the main power circuit. Maximum response time is 25 ms.
Choose the G20-25SHT240AC when the GoPact MCCB 200 or 250 needs to be opened remotely on command from a protection relay, emergency-stop circuit or BMS, rather than through loss of supply voltage. Its 240 V AC coil only opens the breaker when energized above 0.7 times Un, so it complements rather than replaces an undervoltage release where the trip condition is a voltage drop.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Voltage release |
| Device short name | MX |
| Device application | Control |
| Range compatibility | GoPact MCCB 200, GoPact MCCB 250 |
| Voltage release type | Shunt trip |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Threshold tripping voltage | 0.7...1.1 Un opening |
|---|---|
| Max supply pick-up power consumption | 5 VA |
| Response time | 25 ms |
| Warranty (in months) | 18 |
|---|
| Part number | G20-25SHT240AC |
|---|---|
| Type designation | MX |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 100 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.315 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 45.540 kg |
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
