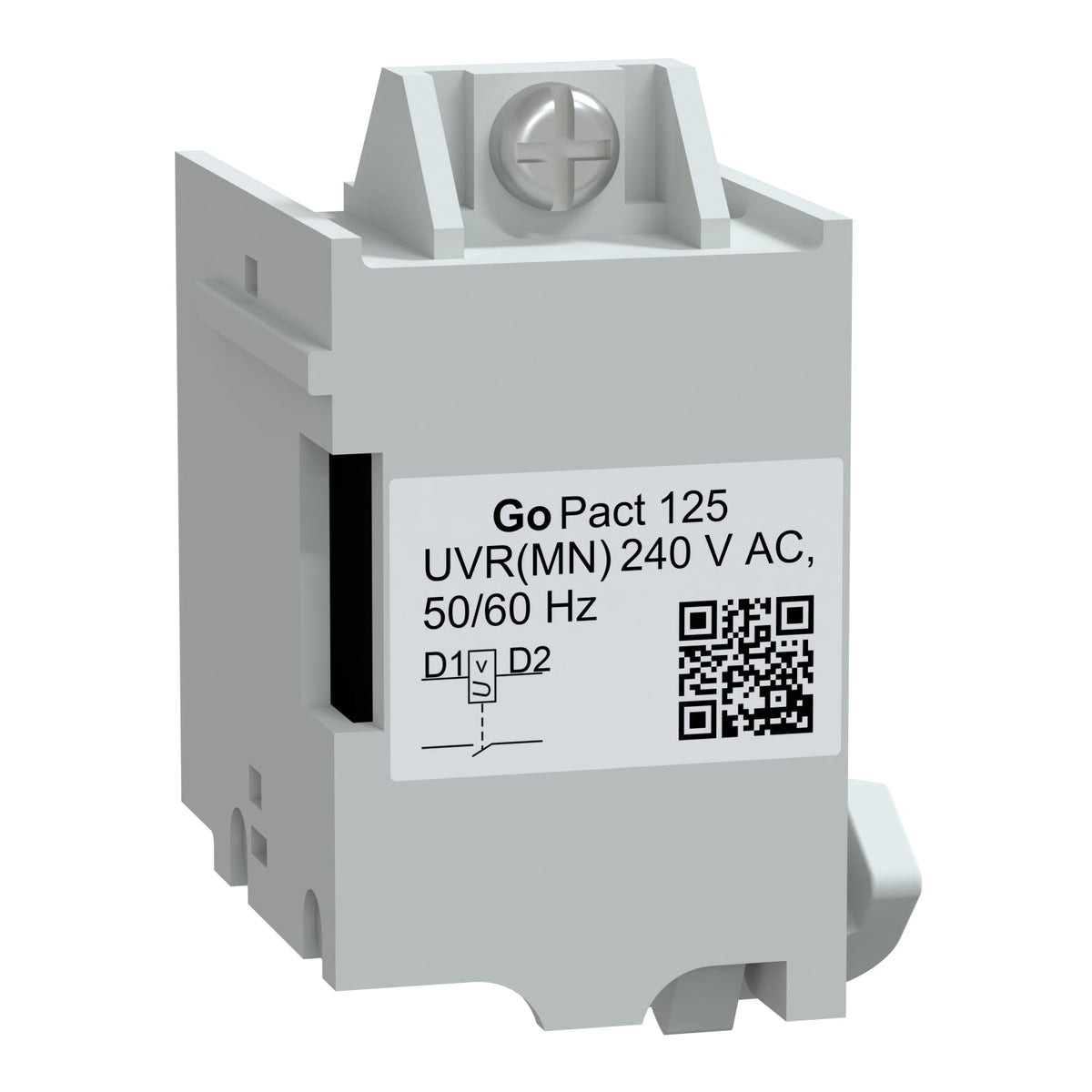

The Schneider Electric G12UVR230AC is an MN undervoltage release for GoPact MCCB 125 moulded case circuit breakers, rated 240 V AC 50/60 Hz control voltage. It opens the breaker when its supply voltage drops below 35% of its rated operational voltage Un, with a response time of 25 ms; closing is ensured only once the supply is back above 85% Un.
G12UVR230AC is the fail-safe counterpart to the GoPact MCCB 125 MX shunt trip: the breaker trips automatically if its 240 V AC control supply is lost or sags below 35% Un, so it suits circuits where loss of control power must open the breaker rather than leave it closed. Opening is possible but not guaranteed between 35% and 70% Un, and does not occur above 70% Un; the breaker only re-closes once the supply recovers above 85% Un.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Voltage release |
| Device short name | MN |
| Device application | Control |
| Range compatibility | GoPact MCCB 125 |
| Voltage release type | Undervoltage release |
| [Uc] control circuit voltage | 240 V AC 50/60 Hz |
| Threshold tripping voltage | 0.35...0.7 Un opening, 0.85...1.1 Un closing |
|---|---|
| Max supply holding power consumption | 3.5 VA |
| Max supply pick-up power consumption | 5 VA |
| Response time | 25 ms |
| Warranty (in months) | 18 |
|---|
| Part number | G12UVR230AC |
|---|---|
| Type designation | MN |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 900 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.115 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 42.34 kg |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
