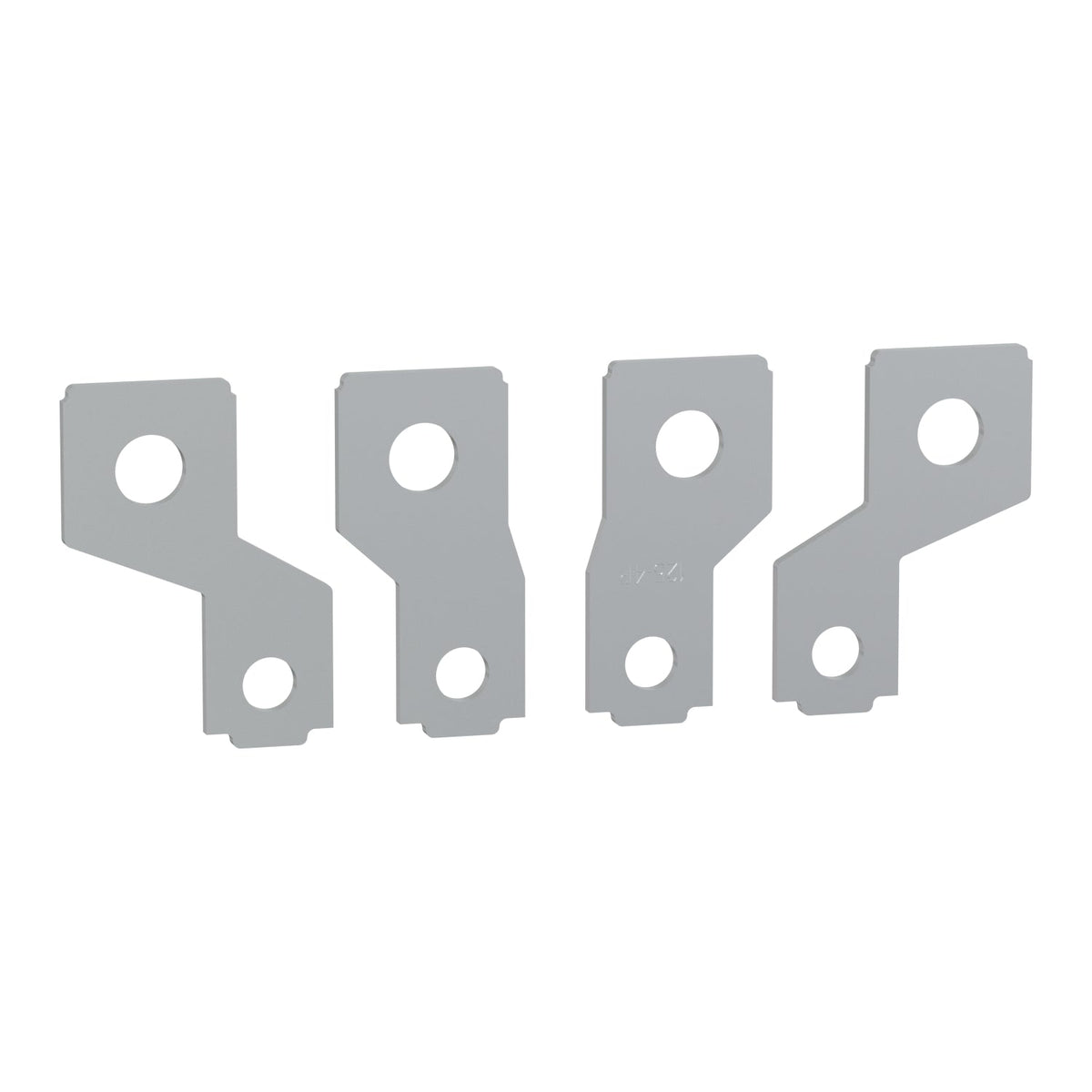

The Schneider Electric G12SPDR4P is a set of 4-pole terminal extension spreaders for GoPact MCCB 125 moulded case circuit breakers, rated 125 A. The copper spreaders attach to the breaker's standard terminals to increase the power-connection pitch from 25 mm to 35 mm.
G12SPDR4P widens the busbar or cable-lug spacing from the breaker's native 25 mm pitch to 35 mm, which matters when the panel's bus system or incoming cable lugs cannot fit the tighter standard spacing. The 8-piece set covers one 4-pole breaker on both the upstream and downstream connection; the 3-pole spreader set is a separate reference. ETP-grade copper keeps the conductivity equivalent to the breaker's own terminals at the full 125 A rating.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Terminal extension |
| Device application | Connection |
| Range compatibility | GoPact MCCB 125 |
| Poles description | 4P |
| Quantity | 8 |
| Mounting position | Straight |
| Localisation on device | Upstream, Downstream |
|---|---|
| [In] rated current | 125 A |
| Connection pitch | 35 mm |
| Conductor material | Copper |
| Warranty (in months) | 18 |
|---|
| Part number | G12SPDR4P |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 13.5 cm |
| Package 1 Weight | 400 g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 160 |
| Package 2 Height | 60 cm |
| Package 2 Width | 60 cm |
| Package 2 Length | 80 cm |
| Package 2 Weight | 77.540 kg |
| Shipping weight | 0.4 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G12SPDR4P is 853890.
G12SPDR4P ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
