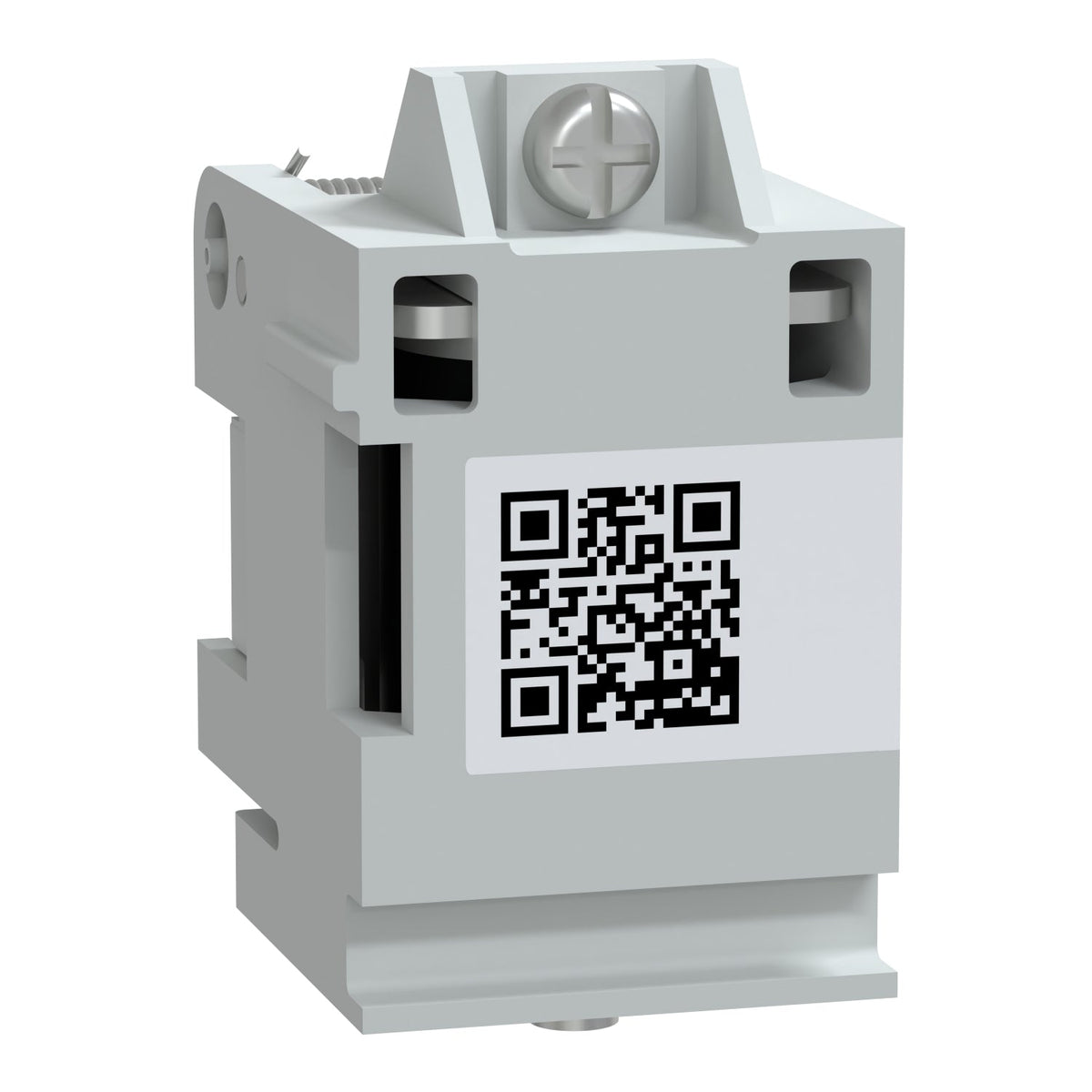

The Schneider Electric G12SHT415AC is an MX shunt trip release for GoPact MCCB 125 moulded case circuit breakers, rated 110-415 V AC 50/60 Hz control voltage. It opens the breaker once its supply voltage rises above 70% of its rated operational voltage, with a response time of 25 ms.
G12SHT415AC covers the full 110-415 V AC control range on a single reference, which spans most low-voltage control circuits used in a panel without needing separate SKUs per voltage band. It is wired for emergency-off or remote-opening duty wherever an operator or an upstream protection relay needs to trip the breaker from outside the enclosure, tripping once the supply voltage exceeds 70% of Un.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Voltage release |
| Device short name | MX |
| Device application | Control |
| Range compatibility | GoPact MCCB 125 |
| Voltage release type | Shunt trip |
| [Uc] control circuit voltage | 110...415 V AC 50/60 Hz |
| Threshold tripping voltage | 0.7...1.1 Un opening |
|---|---|
| Max supply pick-up power consumption | 5 VA |
| Response time | 25 ms |
| Warranty (in months) | 18 |
|---|
| Part number | G12SHT415AC |
|---|---|
| Type designation | MX |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.5 cm |
| Package 1 Width | 8.5 cm |
| Package 1 Length | 4.8 cm |
| Package 1 Weight | 900 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.115 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 320 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 42.34 kg |
| Shipping weight | 0.9 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe rated operational voltage of MX is 110–415 V AC.
The tariff (HS) code on file for MX is 853890.
MX ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
