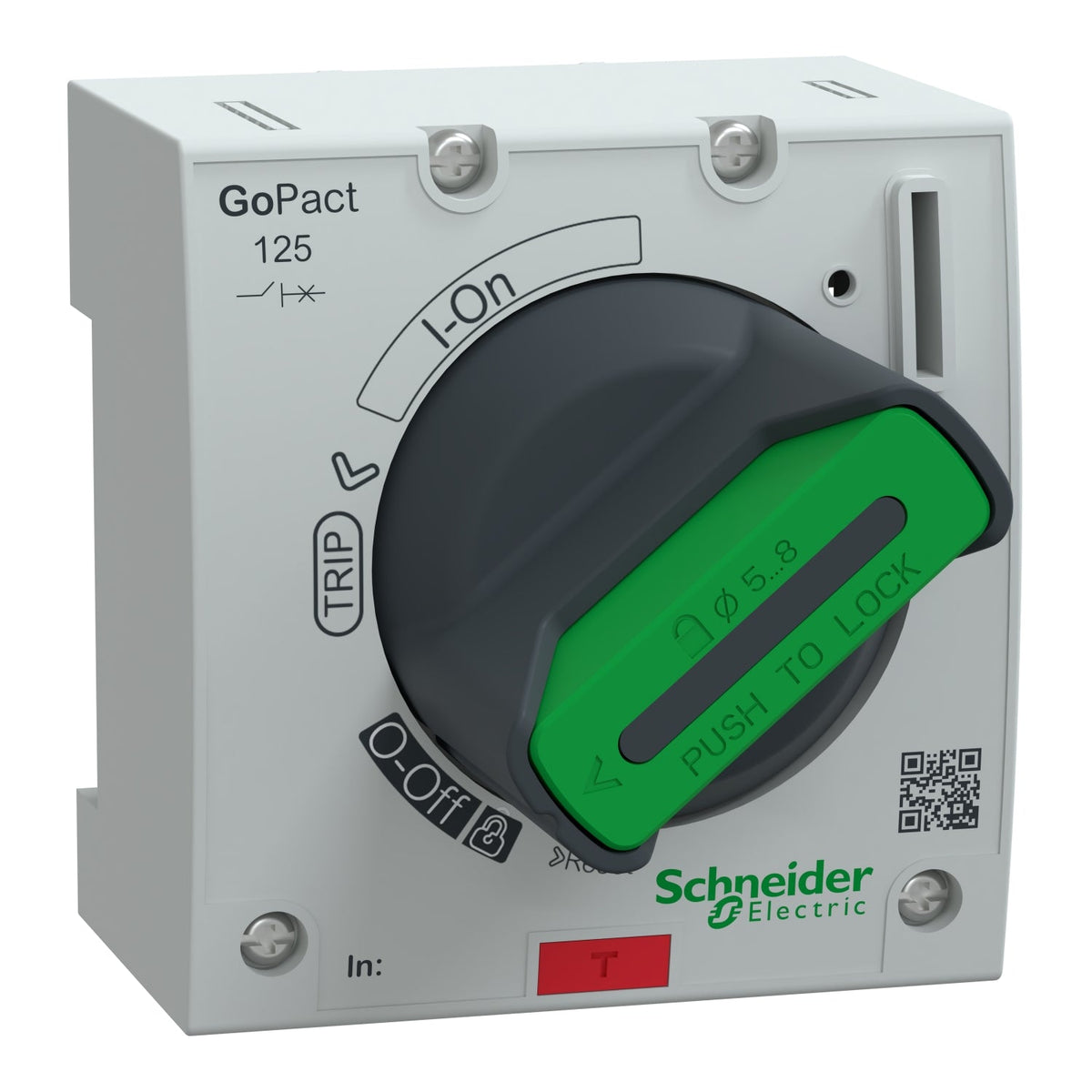

The Schneider Electric G12ROTDS is a direct rotary handle for GoPact MCCB 125 moulded case circuit breakers, installed on the device front face. It gives IP20 degree of protection, padlocks in the OFF position with 1 to 3 padlocks, and has a grey (RAL 7035) body with a dark grey (RAL 7016) handle.
G12ROTDS is the direct-mount rotary handle for GoPact MCCB 125, fixed flush on the breaker's own front face; choose it over the extended version when the switchboard door sits close enough to reach the breaker directly. IP20 is lower than the extended handle's IP54, so this direct version suits panel interiors that do not need dust or splash protection at the handle. It padlocks in the OFF position with up to 3 padlocks for lockout-tagout.
| Range of product | GoPact MCCB |
|---|---|
| Product or component type | Rotary handle |
| Device application | Control |
| Range compatibility | GoPact MCCB 125 |
| Rotary handle mounting style | Direct |
| Rotary handle mounting location | Front |
| Handle colour | Grey |
| Rotary handle padlocking | Padlock in OFF position, 1 to 3 padlocks |
| IP degree of protection | IP20 |
|---|
| Warranty (in months) | 18 |
|---|
| Part number | G12ROTDS |
|---|---|
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.8 cm |
| Package 1 Width | 8.9 cm |
| Package 1 Length | 8.9 cm |
| Package 1 Weight | 310 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.995 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 60 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 88.420 kg |
| Shipping weight | 0.31 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
No documents are on file for this part yet.
Ask us for the datasheetThe tariff (HS) code on file for G12ROTDS is 853890.
G12ROTDS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
