Schneider Electric A9XMSB11 EcoStruxure I/O Smart Link Modbus RS485 11-Channel Energy Meter Accessory

% $-286.62

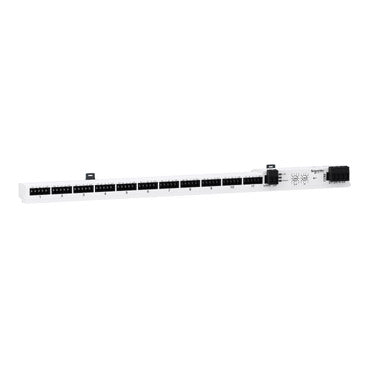

Schneider Electric A9XMSB11 EcoStruxure I/O Smart Link Modbus RS485 module
Schneider Electric A9XMSB11 EcoStruxure I/O Smart Link Modbus RS485 module

Schneider Electric A9XMSB11 EcoStruxure I/O Smart Link Modbus RS485 11-Channel Energy Meter Accessory

Brand: Schneider Electric
Reference No: A9XMSB11
Series: EcoStruxure
Tariff Code (HS): 903039
Communication: Modbus RTU, RS485
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$286.62

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric A9XMSB11 EcoStruxure I/O Smart Link is a DIN-rail communication module that aggregates up to 11 wired Acti9 auxiliaries -- iACT24, iATL24, iOF+SD24 and Ti24 -- onto one Modbus RTU RS485 bus, transferring breaker status and basic energy data from the panel to a PLC or network-monitoring system over a self-adaptable 9600-19200 baud link.

Technical Specifications

SKU A9XMSB11
Brand Schneider Electric
Range Acti9 EcoStruxure
Device I/O Smart Link
Connected devices Up to 11 wired devices, 1 group of 11 digital channels
Application Load control, breaker status monitoring, basic energy metering
Communication Modbus RTU/RS485 server, 4800/9600/19200 bps, SUB-D 9
Modbus address range 1-99
Supply voltage 24 V DC +/- 20 %
Maximum supply current 1.5 A
Digital I/O per channel 2 inputs + 1 output
Input type Current sink, 24 V DC +/- 20 % at 2.5 mA
Output type Logic current source, 24 V DC, 100 mA
Local signalling 1 LED communication (yellow), 1 LED status (green/orange/red)
Mounting DIN rail, horizontal or vertical
IP rating IP20
IK rating IK06
Pollution degree 3
Operating temperature -25 to 60 C (50 C max if mounted vertically)
Dimensions 359 x 22.5 x 42 mm
Weight 188 g

Certifications & Standards

  • IEC 61010-2-201
  • IEC 61010-1

Selection Notes

Use the A9XMSB11 when more than a handful of Acti9 contactors, impulse relays or RCDs need status reporting but a full panel-server gateway is not justified -- it condenses 11 wired auxiliaries onto a single RS485 drop instead of wiring each one back to a PLC input card. It must be paired with a Master SmartLink SI B over the same RS485 bus; where wireless reporting is preferred instead of hard-wired auxiliaries, a PowerTag sensor is the better fit.

Technical Details

Short Description
EcoStruxure I/O Smart Link, 11-channel Modbus RS485 module for Acti9 auxiliaries.
Mounting Type
DIN rail
Protection Type
IP20
Delivery Date (Days)
30 days
Model Number
I/O Smart Link
Tariff Code
903039
