- Part number
- A9XMC1D3
- Model no
- PowerTag C IO 230V
Description
About the PowerTag C IO 230V
About the PowerTag C IO 230V

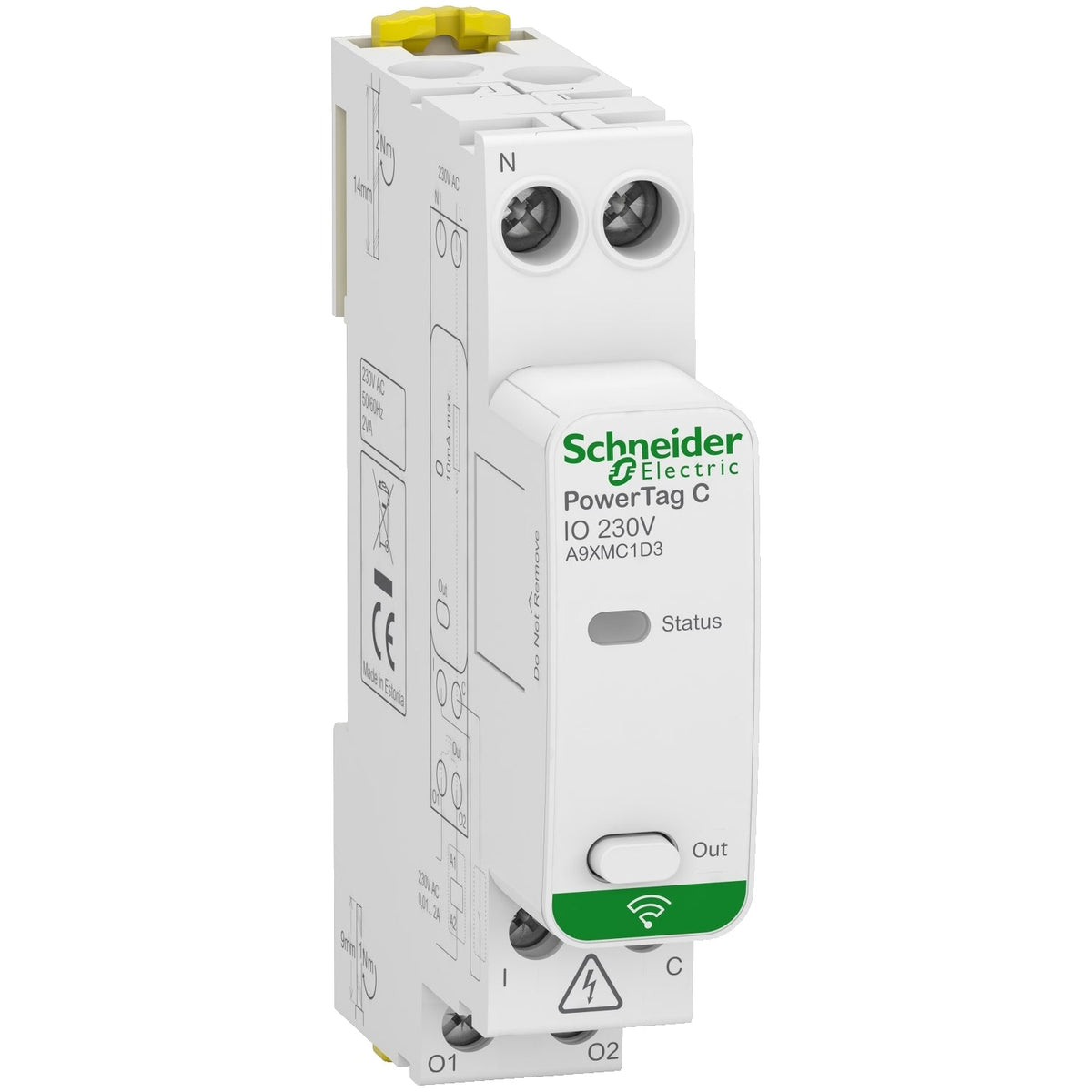

The Schneider Electric A9XMC1D3 PowerTag Control IO 230 V is a wireless-communication input and output module that monitors one dry-contact circuit and reports its status to a PowerTag Link or Wiser IP concentrator over a 2.4 GHz radio link, with one digital input and one configurable NO/NC relay output for load control.
Certifications & Standards
- CE
- IEC 61010-1
- IEC 61010-2-201
- IEC 61326-1
- IEC 62479
- ETSI EN 300 328
- ETSI EN 301 489-1
- ETSI EN 301 489-17
Selection Notes
Choose the A9XMC1D3 when a circuit needs remote on/off control or dry-contact status reporting but does not need energy metering -- it pairs with Acti9 impulse relays and contactors over the same PowerTag Link or Wiser IP concentrator already used for PowerTag Energy sensors, so both can share one gateway. Where actual energy, current or voltage readings are required instead of a simple contact state, a PowerTag Energy sensor is the correct part, not this control module.
Specification
Full specification
Main 7
| Range | PowerTag |
|---|---|
| Product or component type | Input and ouput module |
| Device short name | PowerTag C IO 230V |
| Product name | PowerTag Control |
| Concentrator compatibility | Acti9 PowerTag Link C, Wiser IP module, Acti9 PowerTag Link, Acti9 PowerTag Link HD |
| Range compatibility | Acti9 impulse relay, Acti9 contactor, Acti9 iACTs remote indication auxiliary, Acti9 iATLs remote indication auxiliary |
| Communication mode | Radio frequency 2.4…2.4835 GHz IEEE 802.15.4 |
Complementary 30
| [Us] rated supply voltage | 230 V AC (+/- 20 %) |
|---|---|
| Network frequency | 50/60 Hz |
| Power consumption in VA | 2 VA |
| Digital input number | 1 |
| Input type | Dry contact 230 V AC 2 mA |
| Voltage state 1 guaranteed | >= 164 V for digital input |
| Voltage state 0 guaranteed | <= 40 V for digital input |
| Current state 1 guaranteed | >= 2 mA (digital input) |
| Current state 0 guaranteed | <= 0.5 mA (digital input) |
| Digital output number | 1 |
| Output type | Dry contact 230 V 0.01...2 A AC |
| Discrete output type | Configurable relay logic |
| Output function | NO/NC programmable |
| Mechanical durability | 100000 cycles for output |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Local signalling | Green, orange and red LED for product status |
| Impulse duration | 300 ms by default - 0 ms, + 300 ms |
| Time between 2 impulse | 100 ms minimum - tolerance: - 0 ms, + 300 ms |
| Colour | White (RAL 9003) |
| 9 mm pitches | 2 |
| Height | 85 mm |
| Material | PA6 GF30 |
| Width | 18 mm |
| Depth | 62 mm |
| Net weight | 80 g |
| Connections - terminals | Tunnel type terminals (top) - 1 cable(s) 1…16 mm² (18 AWG...16 AWG) - rigid, Tunnel type terminals (top) - 1 cable(s) 0.5…10 mm² (21 AWG...8 AWG) - flexible, Tunnel type terminals (bottom) - 1 cable(s) 1…6 mm² (18 AWG...10 AWG) - rigid, Tunnel type terminals (bottom) - 1 cable(s) 0.5…4 mm² (21 AWG...12 AWG) - flexible, Tunnel type terminals (bottom) - 1 cable(s) 0.5…4 mm² (21 AWG...12 AWG) - flexible with ferrule, Tunnel type terminals (bottom) - 2 cable(s) 1.5…2.5 mm² (16 AWG...14 AWG) - rigid, Tunnel type terminals (bottom) - 2 cable(s) 1.5…2.5 mm² (16 AWG...14 AWG) - flexible |
| Wire stripping length | 14 mm for top connection, 9 mm for bottom connection |
| Tightening torque | Power supply: 2 N.m top, Digital input/output: 1 N.m bottom |
| Standards | EN/IEC 61010-1, ETSI EN 300 328, EN/IEC 62479, ETSI EN 301 489-17, ETSI EN 301 489-1, EN/IEC 61010-2-201, EN/IEC 61326-1 |
Environment 9
| IP degree of protection | IP20 casing: conforming to IEC 60529, IP40 front face: conforming to IEC 60529 |
|---|---|
| Pollution degree | 3 |
| Overvoltage category | III conforming to IEC 61010-1 |
| IK degree of protection | IK05 |
| Relative humidity | 0…93 % at 40 °C conforming to IEC 60068-2-78 |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Fire resistance | 960 °C / 30 s conforming to UL 94 V0 |
Show all 70 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | A9XMC1D3 |
|---|---|
| Type designation | PowerTag C IO 230V |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.800 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 11.500 cm |
| Package 1 Weight | 116.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.506 kg |
| Shipping weight | 0.08 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for A9XMC1D3
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- EN/IEC 61010-1
- ETSI EN 300 328
- EN/IEC 62479
- ETSI EN 301 489-17
- ETSI EN 301 489-1
- EN/IEC 61010-2-201
- EN/IEC 61326-1
Quick answers
Questions about the PowerTag C IO 230V
Which supply voltage is PowerTag C IO 230V rated for?
The rated operational voltage of PowerTag C IO 230V is 230 V AC.
What is the HS code of PowerTag C IO 230V for customs?
The tariff (HS) code on file for PowerTag C IO 230V is 853890.
Where does PowerTag C IO 230V ship from, and how fast?
PowerTag C IO 230V ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
