Schneider Electric A9MEM3355 Acti9 iEM3355 Energy Meter 125 A Direct Modbus Multi-Tariff MID Energy Meter

% $-276.72

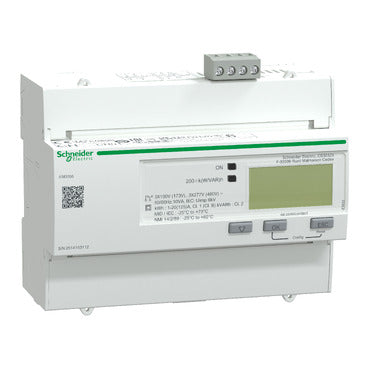

Schneider Electric A9MEM3355 iEM3355 Energy Meter 125 A direct
Schneider Electric A9MEM3355 iEM3355 Energy Meter 125 A direct

Schneider Electric A9MEM3355 Acti9 iEM3355 Energy Meter 125 A Direct Modbus Multi-Tariff MID Energy Meter

Brand: Schneider Electric
Reference No: A9MEM3355
Series: Acti9 iEM3000
Tariff Code (HS): 903039
Rated Current: 125 A
Rated Voltage: 100-277 V / 173-480 V
Communication: Modbus RTU, RS485, screw terminal block
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$276.72

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric A9MEM3355 is an Acti9 iEM3355 DIN-rail energy meter rated for 125 A via direct connection, covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active and reactive energy, power, current and voltage, provides a programmable digital I/O pair, and communicates over Modbus RTU, with MID certification for 4-tariff sub-billing.

Technical Specifications

SKU A9MEM3355
GTIN 3606480696428
Brand Schneider Electric
Range Acti9 iEM3000
Device iEM3355
Input type Direct connection
Line rated current 125 A
Rated voltage 100-277 V / 173-480 V AC
Network frequency 50 Hz / 60 Hz
Accuracy class Class 1 active energy (IEC 62053-21), Class 1 active energy (IEC 61557-12), Class B active energy (EN 50470-3)
Measured values Active and reactive energy, active and reactive power, current, voltage (four-quadrant)
Tariff input 4 tariff schedules
Communication Modbus RTU, RS485, screw terminal block
Digital I/O 1 programmable digital input, 1 programmable digital output (pulse capable, 5-40 V DC @ 50 mA)
Display LCD
Mounting Clip-on, DIN rail
Overvoltage category III
IP rating IP40 front panel / IP20 body
Pollution degree 2
Operating temperature -25 to 55 C (MID) / -25 to 70 C (IEC)
Dimensions 126 x 103.2 x 69.3 mm
Weight 260 g

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • EAC
  • RCM
  • MID
  • NMI
  • IEC 61010-1
  • IEC 61557-12
  • EN 50470-3

Selection Notes

Pick the A9MEM3355 over the A9MEM3350 when the 125 A feeder needs MID certification for contractual sub-billing, four tariff schedules and four-quadrant measurement, not just partial metering; the shared 125 A direct-connect rating keeps wiring identical between the two.

Technical Details

Short Description
Acti9 iEM3355 energy meter, 125 A direct connection, Modbus RTU, MID sub-billing certified.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
100-277 V / 173-480 V
Mounting Type
DIN rail
Protection Type
IP40 front / IP20 body
Delivery Date (Days)
30 days
Model Number
iEM3355
Tariff Code
903039
