Schneider Electric A9MEM3350 Acti9 iEM3350 Energy Meter 125 A Direct Modbus Energy Meter

% $-256.91

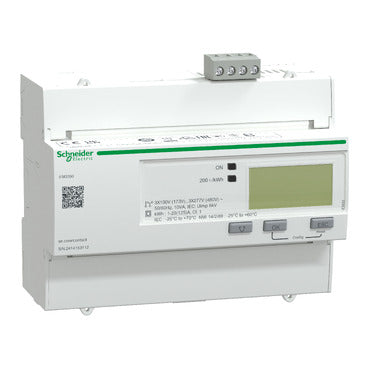

Schneider Electric A9MEM3350 iEM3350 Energy Meter 125 A direct
Schneider Electric A9MEM3350 iEM3350 Energy Meter 125 A direct

Schneider Electric A9MEM3350 Acti9 iEM3350 Energy Meter 125 A Direct Modbus Energy Meter

Brand: Schneider Electric
Reference No: A9MEM3350
Series: Acti9 iEM3000
Tariff Code (HS): 903039
Rated Current: 125 A
Rated Voltage: 100-277 V / 173-480 V
Communication: Modbus RTU, RS485, screw terminal block
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$256.91

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric A9MEM3350 is an Acti9 iEM3350 DIN-rail energy meter rated for 125 A via direct connection, covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active energy, current, voltage, active power, provides no digital inputs or outputs, and communicates over Modbus RTU, RS485, screw terminal block.

Technical Specifications

SKU A9MEM3350
GTIN 3606480696411
Brand Schneider Electric
Range Acti9 iEM3000
Device iEM3350
Input type Direct connection
Line rated current 125 A
Rated voltage 100-277 V / 173-480 V AC
Network frequency 50 Hz / 60 Hz
Accuracy class Class 1 active energy (IEC 62053-21), Class 1 active energy (IEC 61557-12)
Measured values Active energy, current, voltage, active power
Communication Modbus RTU, RS485, screw terminal block
Display LCD
Mounting Clip-on, DIN rail
Overvoltage category III
IP rating IP40 front panel / IP20 body
Pollution degree 2
Operating temperature -25 to 70 C (IEC)
Dimensions 126 x 103.2 x 69.3 mm
Weight 260 g

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • EAC
  • NMI
  • IEC 61010-1
  • IEC 61557-12

Selection Notes

Pick the A9MEM3350 for a 125 A direct-connect feeder needing Modbus RS485 readout for partial metering without MID certification; choose the A9MEM3355 instead when the circuit requires MID sub-billing or four-quadrant measurement.

Technical Details

Short Description
Acti9 iEM3350 energy meter, 125 A direct connection, Modbus RTU, not MID certified.
Rated Current (Ampere)
125 A
Rated Voltage (VAC)
100-277 V / 173-480 V
Mounting Type
DIN rail
Protection Type
IP40 front / IP20 body
Delivery Date (Days)
30 days
Model Number
iEM3350
Tariff Code
903039
