- Part number
- A9MEM3250
- Model no
- iEM3250
Description
About the iEM3250
About the iEM3250

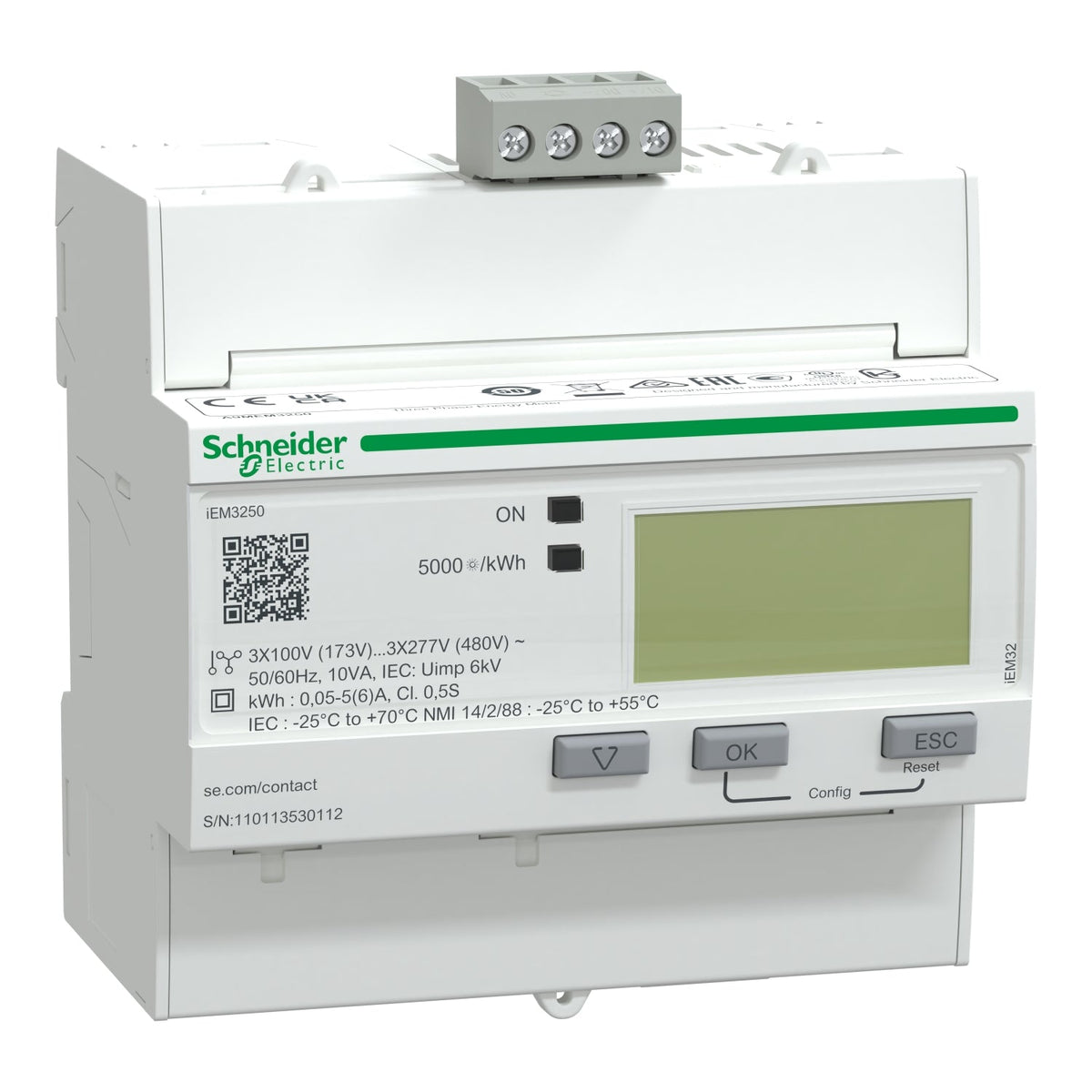

The Schneider Electric A9MEM3250 is an Acti9 iEM3250 DIN-rail energy meter rated for 1 A / 5 A (CT) via CT connection (1 A / 5 A secondary), covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active energy, current, voltage, active power, provides no digital inputs or outputs, and communicates over Modbus RTU, RS485, screw terminal block.
Certifications & Standards
- CE
- UKCA
- cULus
- EAC
- NMI
- IEC 61010-1
- IEC 61557-12
Selection Notes
Pick the A9MEM3250 for partial metering or sub-billing above 63 A where Modbus RS485 readout is needed but MID legal-metrology certification is not; it is not MID-certified, so use the A9MEM3255 instead for contractual sub-billing that requires MID.
Specification
Full specification
Main 5
| Range | Acti9 |
|---|---|
| range of product | Acti9 iEM3000 |
| Product or Component Type | Energy meter |
| Device short name | iEM3250 |
| Market segment | Buildings small building cost management: billing: main incomer, Buildings small building cost management: billing: sub feeder, Buildings small building cost management: billing: panelboard, Buildings medium building cost management: billing: main incomer, Buildings medium building cost management: billing: sub feeder, Buildings medium building cost management: billing: panelboard, Buildings large building cost management: billing: main incomer, Buildings large building cost management: billing: sub feeder, Buildings large building cost management: billing: panelboard, Buildings multi-site cost management: billing: main incomer, Buildings multi-site cost management: billing: sub feeder, Buildings multi-site cost management: billing: panelboard, Data center cost management: billing, Healthcare cost management: billing, Industry cost management: billing, Buildings small building cost management: cost allocation: main incomer, Buildings small building cost management: cost allocation: sub feeder, Buildings small building cost management: cost allocation: panelboard, Buildings medium building cost management: cost allocation: main incomer, Buildings medium building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: panelboard, Buildings large building cost management: cost allocation: main incomer, Buildings large building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: panelboard, Buildings multi-site cost management: cost allocation: main incomer, Buildings multi-site cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: panelboard, Data center cost management: cost allocation, Healthcare cost management: cost allocation, Industry cost management: cost allocation |
Complementary 26
| Poles description | 3P, 3P + N, 1P + N |
|---|---|
| Type of measurement | Active energy, Current, Voltage, Active power |
| Device Application | Sub billing, Partial meter |
| Accuracy class | Class 0.5S active energy IEC 62053-22, Class 0.5S active energy IEC 61557-12 |
| input type | Current transformer 1 A or 5 A |
| Line Rated Current | 5 A, 1 A |
| Rated voltage | 100…277 V, 173…480 V |
| Network Frequency | 50 Hz, 60 Hz |
| Technology Type | Electronic |
| Display Type | LCD display |
| Sampling rate | 32 samples/cycle |
| Measurement current | 1…32767000 mA |
| Maximum value measured | 99999999 MWh |
| Communication port protocol | Modbus RTU 9.6, 19.2 and 38.4 kbauds even/odd or none 4000 V |
| Communication port support | Screw terminal block RS485 |
| Local signalling | Green indicator light power ON, Yellow flashing LED accuracy checking, Yellow indicator light communications are active on the Modbus port (Modbus) |
| Number of inputs | 0 |
| Number of Outputs | 0 |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Connections - terminals | Current circuit screw terminals 0.009 in² (6 mm²), Voltage circuit screw terminals 0.004 in² (2.5 mm²) |
| Overvoltage category | III |
| Standards | BS EN 61557-12:2021, IEC 61557-12:2021, EN 61557-12:2021, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11:2020, IEC 62052-11:2020, EN 62052-11:2020, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62053-22:2020, IEC 62053-22:2020, EN 62052-22, BS EN 62052-31:2015, IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, ANSI C12.20 |
| Product certifications | CE IEC 61010-1 safety), CE EN 61557-12 power monitor), CE EN/IEC 61326-1 EMC), UKCA BS EN 61010-1 safety), UKCA BS EN 61557-12 power monitor), UKCA BS EN 61326-1 EMC), CULus UL 61010-1 safety), CULus EN 61010-1 safety), EAC sub-meter), KZ NMI M 6-1, KZ, NMI NMI M 6-1 |
| Market Segment | Small commercial, Residential |
| Compatibility code | IEM3250 |
Environment 11
| IP degree of protection | IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529 |
|---|---|
| Pollution degree | 2 |
| Relative humidity | 5…95 % 122 °F (50 °C) |
| Ambient air temperature for operation | -13…158 °F (-25…70 °C) - IEC |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | < 9842.52 ft (3000 m) |
| Color | White |
| 9 mm pitches | 10 |
| Width | 3.5 in (90 mm) |
| Height | 3.7 in (95 mm) |
| Depth | 2.7 in (69 mm) |
Show all 56 specifications ↓ Show less ↑14 more values in Identification, Contractual warranty, Logistics.
Identification 8
| Part number | A9MEM3250 |
|---|---|
| Type designation | iEM3250 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
| EAN | 3606480481567 |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 5
| Country of origin | CN |
|---|---|
| Shipping weight | 0.348 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for A9MEM3250
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- UKCA
- EAC
- BS EN 61557-12:2021
- IEC 61557-12:2021
- EN 61557-12:2021
- BS EN 61326-1
- IEC 61326-1
- EN 61326-1
- BS EN 62052-11:2020
- IEC 62052-11:2020
- EN 62052-11:2020
- BS EN 62053-21
- IEC 62053-21
- EN 62053-21
Quick answers
Questions about the iEM3250
What is the rated current of iEM3250?
The rated current of iEM3250 is 1 A.
Which supply voltage is iEM3250 rated for?
The rated operational voltage of iEM3250 is 100–277 – 173–480 V AC.
What is the HS code of iEM3250 for customs?
The tariff (HS) code on file for iEM3250 is 902830.
What is the EAN of iEM3250?
The EAN (GTIN) of iEM3250 is 3606480481567.
Where does iEM3250 ship from, and how fast?
iEM3250 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
