- Part number
- A9MEM3215
- Model no
- iEM3215
Description
About the iEM3215
About the iEM3215

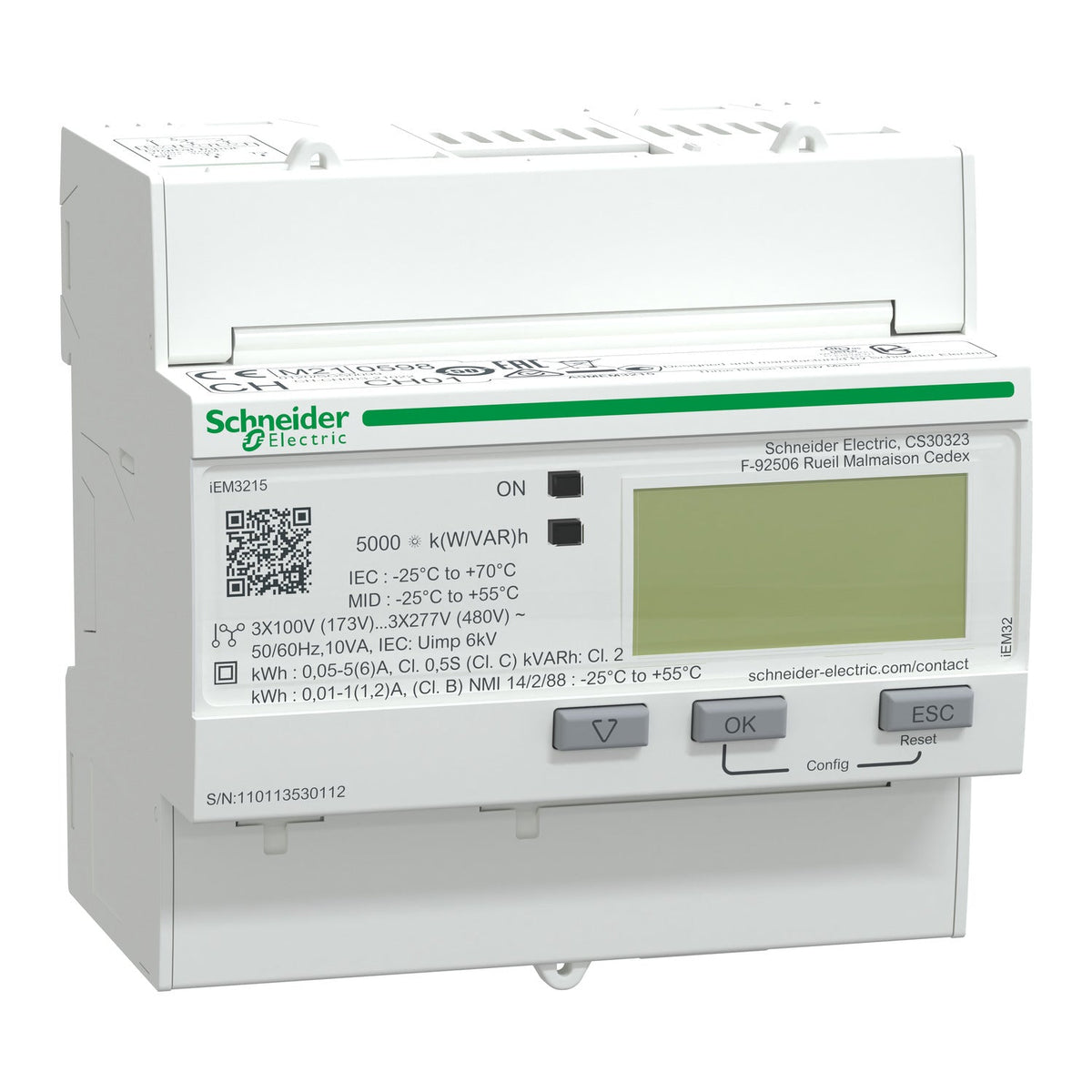

The Schneider Electric A9MEM3215 is an Acti9 iEM3215 DIN-rail energy meter rated for 1 A / 5 A (CT) via CT connection (1 A / 5 A secondary), covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active energy, provides 2 digital inputs (tariff control), and has no communication port, with MID certification for 4-tariff sub-billing.
Certifications & Standards
- CE
- UKCA
- cULus
- EAC
- RCM
- MID
- NMI
- IEC 61010-1
- IEC 61557-12
- EN 50470-3
Selection Notes
Pick the A9MEM3215 over the A9MEM3210 when the CT-fed sub-billing point needs up to four tariff schedules through its two digital inputs; like the A9MEM3210 it has no communication port, so a Modbus (A9MEM3255) or BACnet (A9MEM3265) CT variant is the choice for remote readout.
Specification
Full specification
Main 5
| Range | Acti9 |
|---|---|
| range of product | Acti9 iEM3000 |
| Product or component type | Energy meter |
| Device short name | iEM3215 |
| Market segment | Buildings small building cost management: billing: main incomer, Buildings small building cost management: billing: sub feeder, Buildings small building cost management: billing: panelboard, Buildings medium building cost management: billing: main incomer, Buildings medium building cost management: billing: sub feeder, Buildings medium building cost management: billing: panelboard, Buildings large building cost management: billing: main incomer, Buildings large building cost management: billing: sub feeder, Buildings large building cost management: billing: panelboard, Buildings multi-site cost management: billing: main incomer, Buildings multi-site cost management: billing: sub feeder, Buildings multi-site cost management: billing: panelboard, Data center cost management: billing, Healthcare cost management: billing, Industry cost management: billing, Buildings small building cost management: cost allocation: main incomer, Buildings small building cost management: cost allocation: sub feeder, Buildings small building cost management: cost allocation: panelboard, Buildings medium building cost management: cost allocation: main incomer, Buildings medium building cost management: cost allocation: sub feeder, Buildings medium building cost management: cost allocation: panelboard, Buildings large building cost management: cost allocation: main incomer, Buildings large building cost management: cost allocation: sub feeder, Buildings large building cost management: cost allocation: panelboard, Buildings multi-site cost management: cost allocation: main incomer, Buildings multi-site cost management: cost allocation: sub feeder, Buildings multi-site cost management: cost allocation: panelboard, Data center cost management: cost allocation, Healthcare cost management: cost allocation, Industry cost management: cost allocation |
Complementary 27
| Poles description | 3P + N, 1P + N, 3P |
|---|---|
| Type of measurement | Active energy |
| Device application | Multi-tariff, Sub billing |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22, Class 0.5S active energy conforming to IEC 61557-12, Class C active energy conforming to EN 50470-3 |
| input type | Current transformer 1 A or 5 A |
| [In] rated current | 1 A, 5 A |
| Rated voltage | 100…277 V, 173…480 V |
| Network frequency | 50 Hz, 60 Hz |
| Technology type | Electronic |
| Display type | LCD display |
| Sampling rate | 32 samples/cycle |
| Measurement current | 1…32767000 mA |
| Maximum value measured | 99999999 MWh |
| tariff input | Tariff (4) |
| Communication port protocol | - |
| Communication port support | - |
| Local signalling | Green indicator light: power ON, Yellow flashing LED: accuracy checking |
| Number of inputs | 2 digital 0...5 V/11...40 V 24 V DC |
| Number of outputs | 0 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Connections - terminals | Current circuit: screw terminals 6 mm² cable(s), Voltage circuit: screw terminals 2.5 mm² cable(s) |
| Overvoltage category | III |
| Standards | BS EN 61557-12:2021, IEC 61557-12:2021, EN 61557-12:2021, BS EN 61326-1, IEC 61326-1, EN 61326-1, BS EN 62052-11:2020, IEC 62052-11:2020, EN 62052-11:2020, BS EN 62053-21, IEC 62053-21, EN 62053-21, BS EN 62052-22, IEC 62053-22:2020, EN 62052-22, BS EN 62052-23, IEC 62053-23:2020, EN 62052-23, BS EN 62052-31:2015, IEC 62052-31:2015, EN 62052-31:2015, BS EN 61010-1:2010, EN 61010-1:2010, IEC 61010-1:2010, UL 61010-1:2010, BS EN 61010-2-30, IEC 61010-2-30, EN 61010-2-30, UL 61010-2-30, BS EN 50470-3, EN 50470-3, BS EN 50470-1, EN 50470-1, ANSI C12.20 |
| Product certifications | CE conforming to IEC 61010-1 (safety), CE conforming to EN 61557-12 (power monitor), CE conforming to EN/IEC 61326-1 (EMC), UKCA conforming to BS EN 61010-1 (safety), UKCA conforming to BS EN 61557-12 (power monitor), UKCA conforming to BS EN 61326-1 (EMC), CULus conforming to UL 61010-1 (safety), CULus conforming to EN 61010-1 (safety), EAC conforming to EN 50470-3 (sub-meter), RCM conforming to EN 62052 (sub-meter), KZ conforming to EN 50470-3 (sub-meter), METAS conforming to EN 50470-1 (sub-meter), MID conforming to EN 50470-3 (sub-meter), MID conforming to EN 50470-1 (sub-meter), NMI conforming to NMI M 6-1 |
| Market segment | Small commercial, Residential |
| Compatibility code | IEM3215 |
Environment 11
| IP degree of protection | IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529 |
|---|---|
| Pollution degree | 2 |
| Relative humidity | 5…95 % at 50 °C |
| Ambient air temperature for operation | -25…70 °C - IEC |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | < 3000 m |
| Colour | White |
| 9 mm pitches | 10 |
| Width | 90 mm |
| Height | 95 mm |
| Depth | 69 mm |
Show all 67 specifications ↓ Show less ↑24 more values in Identification, Contractual warranty, Logistics.
Identification 7
| Part number | A9MEM3215 |
|---|---|
| Type designation | iEM3215 |
| Brand | Schneider Electric |
| Condition | New, factory sealed |
| Source | Schneider Electric and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Active, in production |
Contractual warranty 1
| Warranty (in months) | 18 |
|---|
Logistics 16
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 342.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.747 kg |
| Shipping weight | 0.342 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for A9MEM3215
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- UL
- CE
- UKCA
- EAC
- BS EN 61557-12:2021
- IEC 61557-12:2021
- EN 61557-12:2021
- BS EN 61326-1
- IEC 61326-1
- EN 61326-1
- BS EN 62052-11:2020
- IEC 62052-11:2020
- EN 62052-11:2020
- BS EN 62053-21
- IEC 62053-21
- EN 62053-21
Quick answers
Questions about the iEM3215
What is the rated current of iEM3215?
The rated current of iEM3215 is 1 A.
Which supply voltage is iEM3215 rated for?
The rated operational voltage of iEM3215 is 100–277 – 173–480 V AC.
What is the HS code of iEM3215 for customs?
The tariff (HS) code on file for iEM3215 is 902830.
Where does iEM3215 ship from, and how fast?
iEM3215 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
