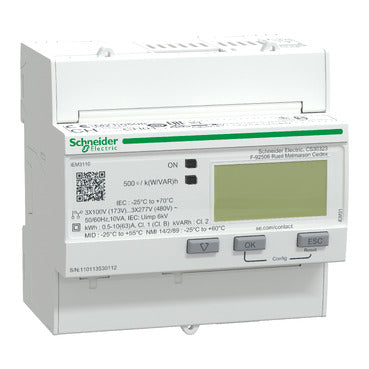

Schneider Electric A9MEM3110 Acti9 iEM3110 Energy Meter 63 A Direct Pulse Output MID Energy Meter

% $-160.33
Schneider Electric A9MEM3110 iEM3110 Energy Meter 63 A direct
Schneider Electric A9MEM3110 iEM3110 Energy Meter 63 A direct

Schneider Electric A9MEM3110 Acti9 iEM3110 Energy Meter 63 A Direct Pulse Output MID Energy Meter

Brand: Schneider Electric
Reference No: A9MEM3110
Series: Acti9 iEM3000
Tariff Code (HS): 903039
Rated Current: 63 A
Rated Voltage: 100-277 V / 173-480 V
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$160.33

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Schneider Electric A9MEM3110 is an Acti9 iEM3110 DIN-rail energy meter rated for 63 A via direct connection, covering 1P+N, 3P and 3P+N networks from 100-277 V or 173-480 V at 50/60 Hz. It measures active energy, provides 1 pulse output (energy reading), and has no communication port, with MID certification for sub-billing.

Technical Specifications

SKU A9MEM3110
GTIN 3606480481499
Brand Schneider Electric
Range Acti9 iEM3000
Device iEM3110
Input type Direct connection
Line rated current 63 A
Rated voltage 100-277 V / 173-480 V AC
Network frequency 50 Hz / 60 Hz
Accuracy class Class 1 active energy (IEC 62053-21), Class 1 active energy (IEC 61557-12), Class B active energy (EN 50470-3)
Measured values Active energy
Digital I/O 1 pulse output (energy reading)
Display LCD
Mounting Clip-on, DIN rail
Overvoltage category III
IP rating IP40 front panel / IP20 body
Pollution degree 2
Operating temperature -25 to 55 C (MID) / -25 to 70 C (IEC)
Dimensions 90 x 95 x 69 mm
Weight 260 g

Certifications & Standards

  • CE
  • UKCA
  • cULus
  • EAC
  • RCM
  • MID
  • NMI
  • IEC 61010-1
  • IEC 61557-12
  • EN 50470-3

Selection Notes

Pick the A9MEM3110 for a sub-billing or partial-metering point at or below 63 A where a simple pulse output is enough to feed an existing data logger; it has no communication port, so choose the Modbus (A9MEM3155) or BACnet (A9MEM3165) variant instead if the installation needs to report into a building-management system.

Technical Details

Short Description
Acti9 iEM3110 energy meter, 63 A direct connection, pulse output, MID sub-billing certified.
Rated Current (Ampere)
63 A
Rated Voltage (VAC)
100-277 V / 173-480 V
Mounting Type
DIN rail
Protection Type
IP40 front / IP20 body
Delivery Date (Days)
30 days
Model Number
iEM3110
Tariff Code
903039
