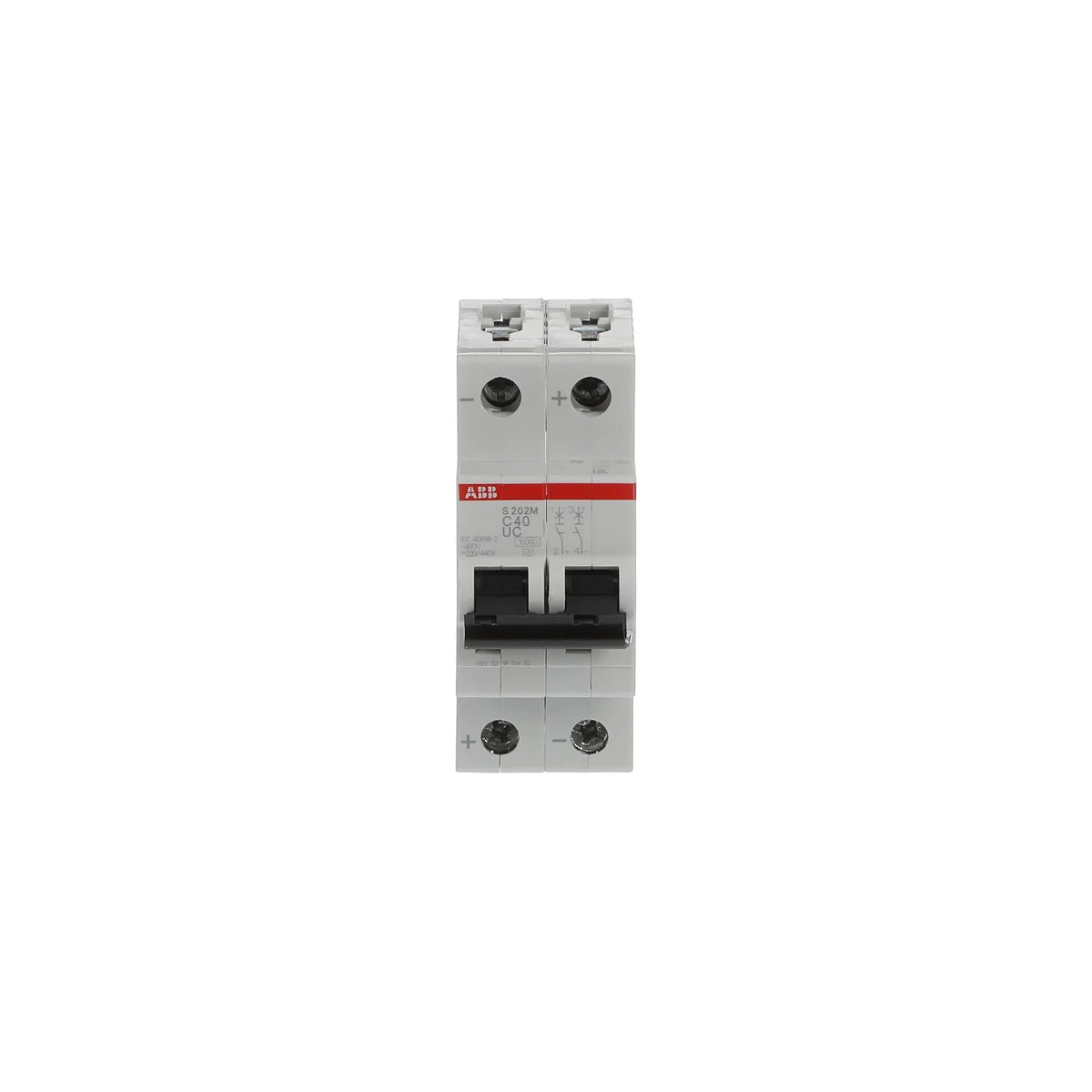

ABB 2CDS272061R0404 S202M-C40UC 2P 40A 10kA C-Curve Miniature Circuit Breaker MCB

The ABB S202M-C40UC (SKU: 2CDS272061R0404) is a 2-pole 40A miniature circuit breaker (MCB) from the S200MUC series, delivering a 10 kA breaking capacity with a Type C tripping characteristic for reliable overcurrent and short-circuit protection in industrial and commercial control panels. Compact at 35mm × 88mm × 69mm and weighing just 0.25 kg, this MCB is certified to IEC/EN 60898-2 and UL1077, making it suitable for global deployment.

Technical Specifications

Certifications & Standards

• IEC 60898-2: International standard for circuit breakers for overcurrent protection in household and similar installations (AC/DC)
• EN 60898-2: European harmonised standard for circuit breakers, AC and DC applications
• IEC/EN 60898-2: Combined IEC and EN compliance for circuit breakers in household and similar installations
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers for industrial applications
• IEC 60898-1400: Circuit breaker standard, 400V rated voltage variant
• IEC 60898-1440: Circuit breaker standard, 440V rated voltage variant
• IEC 60898-2400: DC circuit breaker standard, 400V variant
• IEC 60898-2440: DC circuit breaker standard, 440V variant
• IEC 60947-2440: Industrial circuit breaker standard, 440V variant
• IEC 60068-2: Environmental testing — climatic and mechanical durability
• EN 45555: General methods for the assessment of the ability of energy-related products to be repaired, reused, and recycled
• EN 60664: Insulation coordination for equipment within low-voltage systems
• EN 60898-2: European harmonised circuit breaker standard for AC and DC use
• EN 60947-2: European standard for low-voltage industrial circuit breakers
• UL 1077: UL standard for supplementary protectors for use in electrical equipment (North America)
• CSA: Canadian Standards Association certification for North American market compliance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH regulation (EC) No 1907/2006 on chemical substances
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
