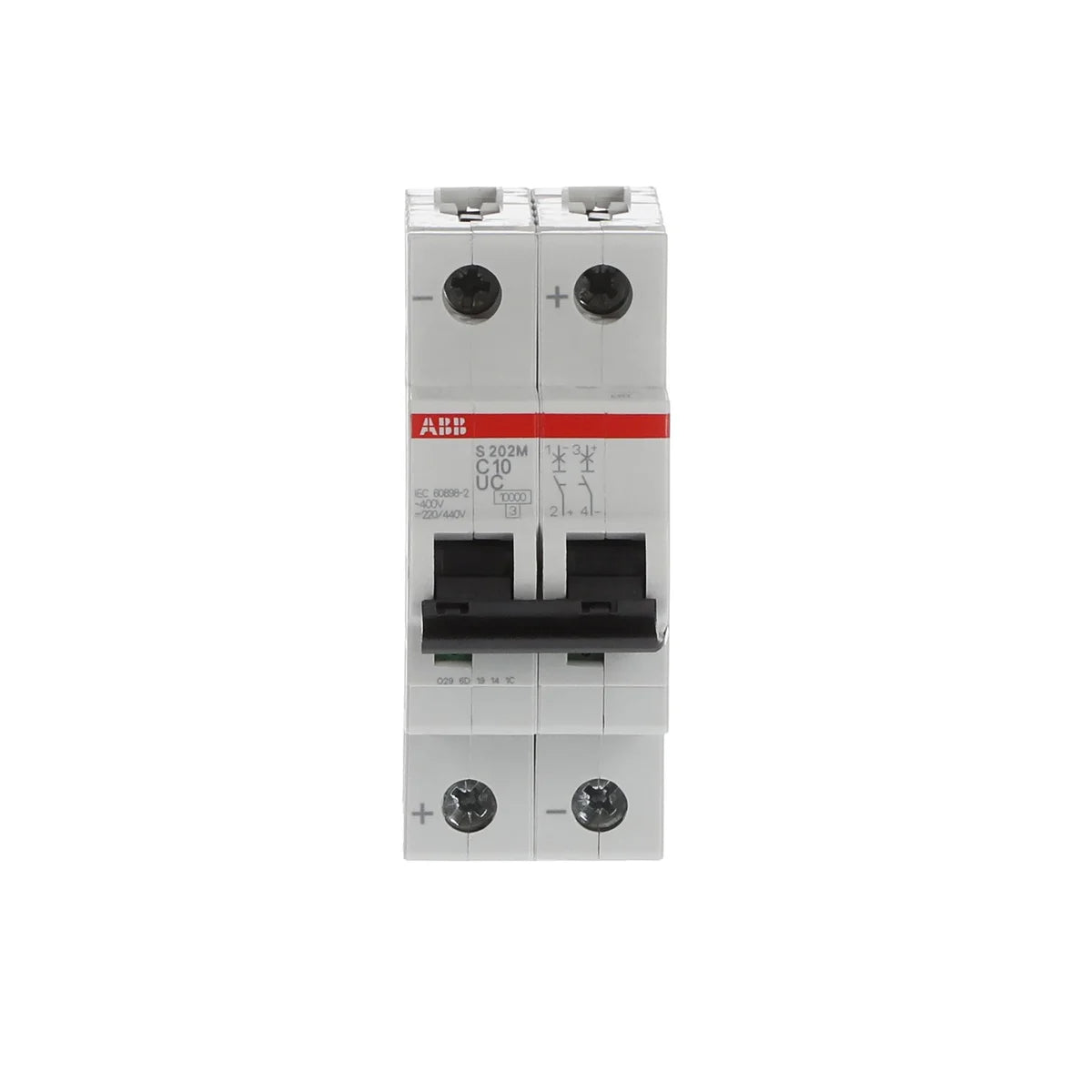

ABB 2CDS272061R0104 S202M-C10UC 2P 10A 10kA C-Curve Miniature Circuit Breaker

The ABB S202M-C10UC miniature circuit breaker (SKU: 2CDS272061R0104) is a 2-pole, 10 A, 10 kA breaking-capacity MCB from the System Pro M / S200MUC series, engineered for reliable overcurrent protection in industrial control panels and commercial electrical installations. With a C-curve trip characteristic, the S202M-C10UC is optimally suited for protecting resistive and moderate inductive loads. Its compact DIN-rail footprint (35 × 88 × 69 mm) and 234 g weight make it easy to integrate into space-constrained enclosures.

Technical Specifications

Certifications & Standards

• IEC 60898-2: Circuit breakers for overcurrent protection — AC/DC household and similar installations
• EN 60898-2: European harmonised standard for household and similar circuit breakers (DC applications)
• IEC/EN 60664-1440: Insulation coordination for equipment within low-voltage systems, 1440 V rating
• IEC/EN 60898-2: Combined IEC/EN designation for DC circuit-breaker performance requirements
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers for industrial use
• IEC 60898-1400: IEC performance standard at 400 V rating
• IEC 60898-1440: IEC performance standard at 1440 V rating
• IEC 60898-2400: IEC DC circuit-breaker standard at 400 V
• IEC 60898-2440: IEC DC circuit-breaker standard at 440 V
• IEC 60947-2440: Industrial circuit-breaker standard at 440 V
• IEC 60068-2: Environmental testing — mechanical and climatic test methods
• EN 45555: General methods for the assessment of the ability of energy-related products to be repaired, reused and recycled
• EN 60664-1440: European insulation coordination standard, 1440 V
• EN 60898-2: European standard for DC miniature circuit breakers
• EN 60947-2: European low-voltage switchgear and controlgear standard for circuit breakers
• UL 1077: Supplementary protectors for use in electrical equipment (North American market)
• CSA: Canadian Standards Association certification for North American compliance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical safety
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
