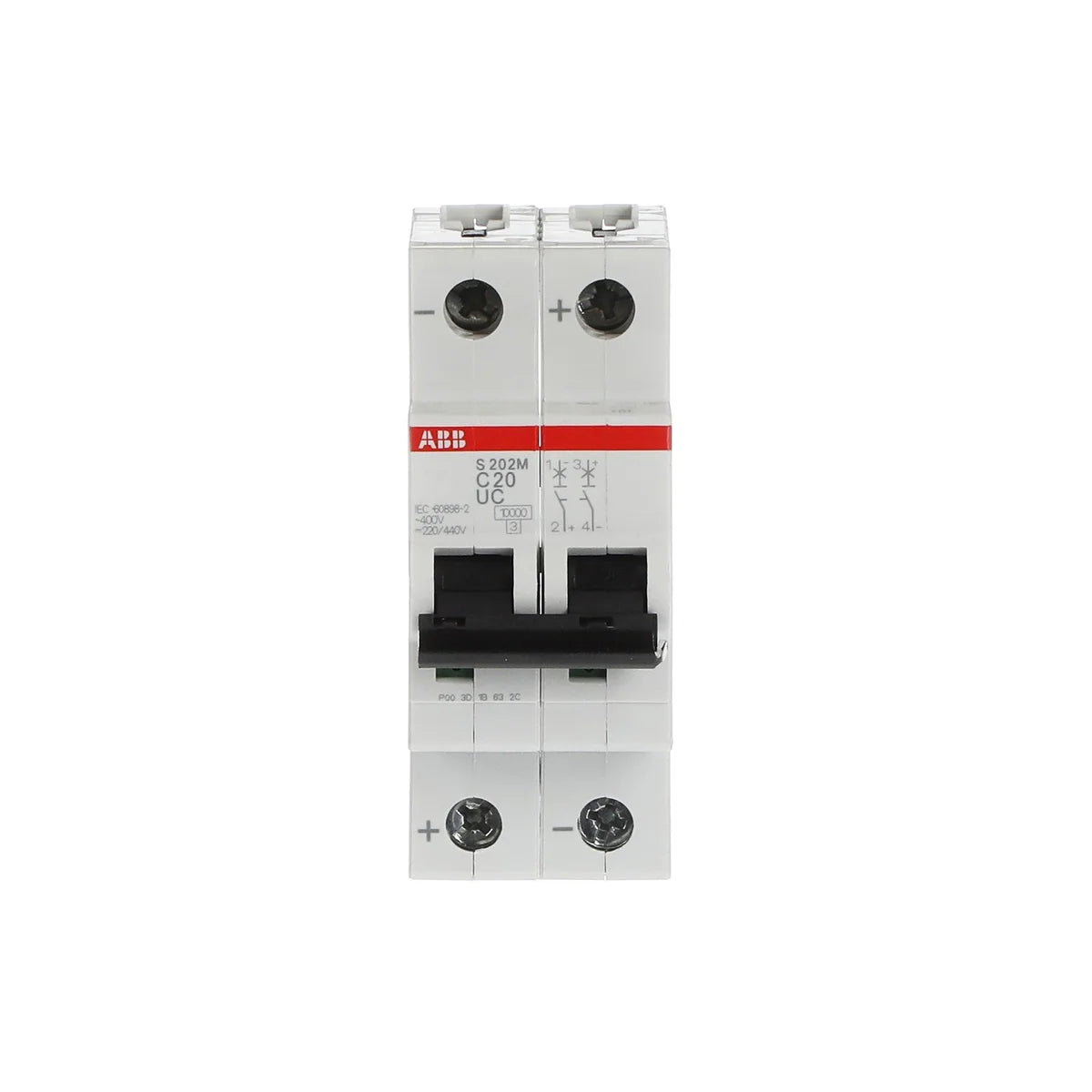

ABB 2CDS272061R0204 S202M-C20UC 2P 20A 10kA System Pro M Miniature Circuit Breaker
Other ratings in ABB S200
All 11 ratings ↓
| Motor power kW | Rated current In (A) | Part number | Stock | Price |
|---|---|---|---|---|
| 10 | 2CDS272061R0104 | Critical stock | $99.07 | |
| 16 | 2CDS272061R0164 | Low stock | $99.07 | |
| 20 | 2CDS272061R0204This part | In stock | $99.07 | |
| 25 | 2CDS272061R0254 | In stock | $99.07 | |
| 40 | 2CDS272061R0404 | Critical stock | $128.80 |
Description
About the S202M-C20UC
About the S202M-C20UC
The ABB S202M-C20UC (SKU: 2CDS272061R0204) is a 2-pole 20A miniature circuit breaker from the System Pro M series, delivering 10 kA breaking capacity and certified to IEC 60898-2, UL1077, and CSA standards. Engineered for demanding industrial and commercial installations, the S202M-C20UC provides reliable overcurrent and short-circuit protection in control panels, distribution boards, and automation systems across a wide range of applications.
Certifications & Standards
- IEC 60898-2: International standard for circuit-breakers for overcurrent protection in AC and DC household and similar installations
- EN 60898-2: European harmonised standard equivalent to IEC 60898-2
- IEC/EN 60664-1440: Insulation coordination for equipment within low-voltage systems (1440 V rated)
- IEC/EN 60898-2: Combined IEC/EN compliance for AC and DC circuit-breaker performance
- IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit-breakers industrial standard
- IEC 60898-1400: Circuit-breaker standard at 1400 V rated insulation voltage
- IEC 60898-1440: Circuit-breaker standard at 1440 V rated insulation voltage
- IEC 60898-2400: Circuit-breaker standard at 2400 V rated insulation voltage
- IEC 60898-3440: Circuit-breaker standard at 3440 V rated insulation voltage
- IEC 60947-2440: Industrial circuit-breaker at 2440 V rated insulation voltage
- IEC 60068-2: Environmental testing — climatic and mechanical robustness
- EN 45555: General methods for the assessment of the ability to recover resources from electrical and electronic equipment
- EN 60664-1440: European standard for insulation coordination at 1440 V
- EN 60898-2: European harmonised circuit-breaker performance standard
- EN 60947-2: European standard for low-voltage industrial circuit-breakers
- UL 1077: UL standard for supplementary protectors for use in electrical equipment (North America)
- CSA: Canadian Standards Association certification for North American market compliance
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Waste Electrical and Electronic Equipment Directive compliant
Specification
Full specification
Technical 22
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
|---|---|
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V DC) 25 kA, (230 V AC) 15 kA, (400 V AC) 15 kA, (440 V AC) 10 kA, (440 V DC) 10 kA, (230 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V DC) 20 kA |
| Power Supply Connection | Please Note Polarity of Device |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Options Provided | Universal current |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | Please note polarity of device |
| Connecting Capacity | Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
Electrical 11
| Tripping Characteristic | C |
|---|---|
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC, acc. to IEC 60898-1 440 V DC, acc. to IEC 60898-2 400 V AC, acc. to IEC 60898-2 440 V DC, acc. to IEC 60947-2 440 V AC, acc. to IEC 60947-2 440 V DC |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC, Maximum (Incl. Tolerance) 500 V DC, Minimum 12 V AC, Minimum 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 20 A |
| Rated Short-Circuit Capacity | (AC) 10 kA, (230 V AC) 10 kA, (253 V AC) 10 kA, (400 V AC) 10 kA, (440 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA |
| Rated Frequency (f) | 50 / 60 Hz, DC |
| Power Loss | 4.52 W, at Rated Operating Conditions per Pole 2.26 W |
| Overvoltage Category | III |
Design 1
| Housing Material | Insulation Group I, RAL 7035 |
|---|
Show all 81 specifications ↓ Show less ↑47 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.
Identification 11
| Part number | 2CDS272061R0204 |
|---|---|
| Type designation | S202M-C20UC |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614433023 |
| ETIM class | EC000042 |
| eCl@ss | 27141901 |
| Package Level 1 Units | carton 5 piece |
| Package Level 1 Gross Weight | 1.24 kg |
Technical UL/CSA 4
| Maximum Operating Voltage UL/CSA | 480Y/277 V AC, 500 V DC |
|---|---|
| Interrupting Rating acc. to UL1077 | (220 V AC) 10 kA, (277 V AC) 6 kA, (440 V DC) 10 kA, (480Y / 277 V AC) 10 kA, (500 V DC) 10 kA |
| Connecting Capacity UL/CSA | Busbar 14-8 AWG, Conductor 14-4 AWG |
| Tightening Torque UL/CSA | 25 in·lb |
Material Compliance 6
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
|---|---|
| RoHS Date | 20260312 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20260312 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
Environmental 7
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
|---|---|
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
Dimensions 7
| Width in Number of Modular Spacings | 2 |
|---|---|
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.24 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
Installation 2
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|---|---|
| Mounting Position | any |
External Classifications and Standards 6
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
|---|---|
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| Standards | IEC/EN 60898-2, IEC/EN 60947-2 |
| Certification Agency | EN, IEC |
| Standardization Body | EN, IEC |
Logistics 4
| Shipping weight | 1.3 kg |
|---|---|
| Ships from | Türkiye |
| Dispatch | 13 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 2CDS272061R0204
No documents are on file for this part yet.
Ask us for the datasheet
Other ratings
All 11 ratings in ABB S200
ABB ABB S200 series page →
| Motor power | Rated current | Part number | Model no | Stock | Dispatch | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 2 A | 2CDS272061R0024 | S202M-C2UC | In stock | $133.75 | |||
| 3 A | 2CDS272061R0034 | S202M-C3UC | Low stock | $130.33 | |||
| 4 A | 2CDS272061R0044 | S202M-C4UC | Low stock | $118.88 | |||
| 6 A | 2CDS272061R0064 | S202M-C6UC | In stock | $118.88 | |||
| 10 A | 2CDS272061R0104 | S202M-C10UC | Critical stock | $99.07 | |||
| 16 A | 2CDS272061R0164 | S202M-C16UC | Low stock | $99.07 | |||
| 20 A | 2CDS272061R0204 This part | S202M-C20UC | In stock | $99.07 | |||
| 25 A | 2CDS272061R0254 | S202M-C25UC | In stock | $99.07 | |||
| 40 A | 2CDS272061R0404 | S202M-C40UC | Critical stock | $128.80 | |||
| 50 A | 2CDS272061R0504 | S202M-C50UC | Low stock | $148.60 | |||
| 63 A | 2CDS272061R0634 | S202M-C63UC | In stock | $168.43 |
Certifications
Certifications and standards
- CSA
- RoHS
- IEC/EN 60898-2
- IEC/EN 60947-2
Quick answers
Questions about the S202M-C20UC
What is the rated current of S202M-C20UC?
The rated current of S202M-C20UC is 20 A.
What is the HS code of S202M-C20UC for customs?
The tariff (HS) code on file for S202M-C20UC is 853620.
What is the EAN of S202M-C20UC?
The EAN (GTIN) of S202M-C20UC is 4013614433023.
Where does S202M-C20UC ship from, and how fast?
S202M-C20UC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
