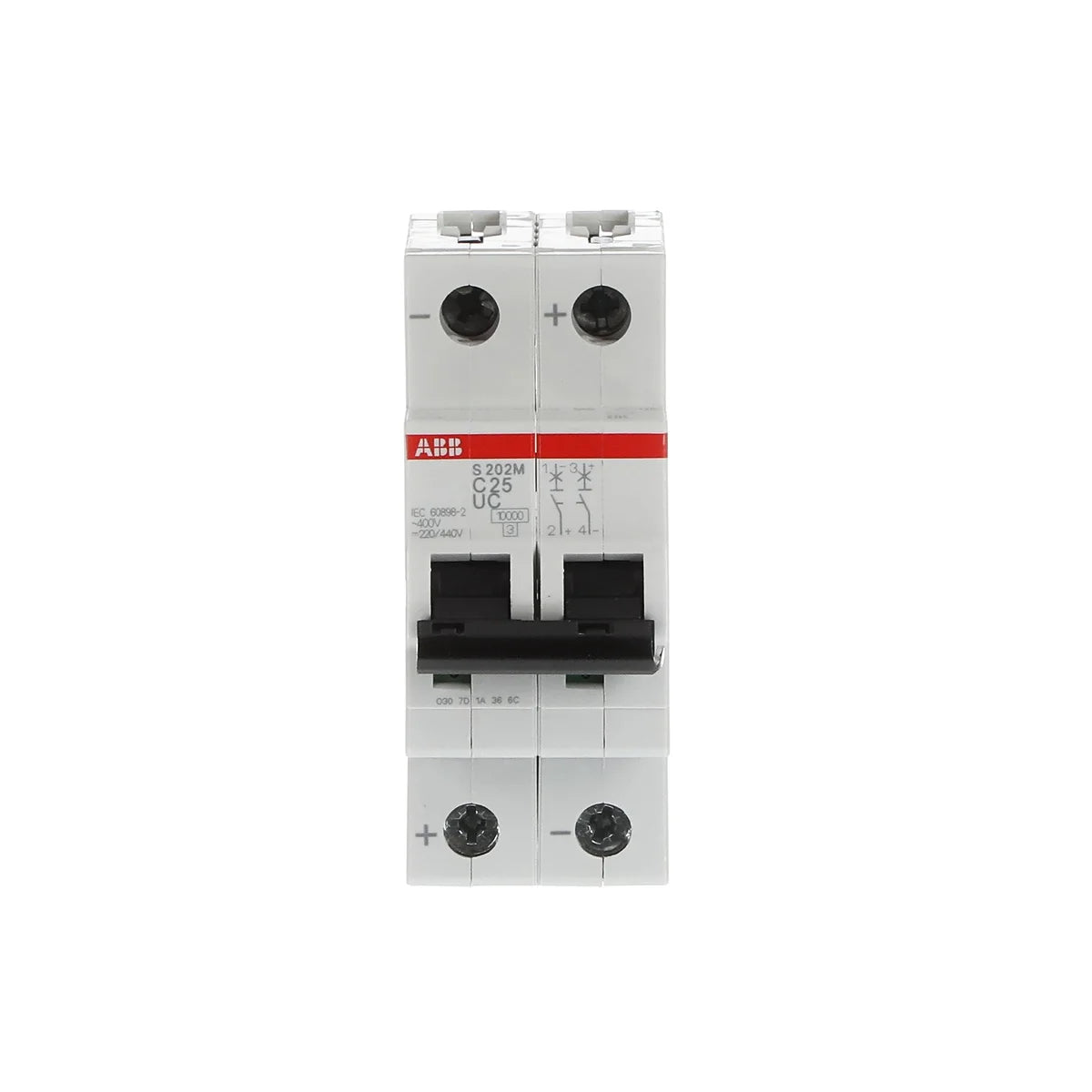

ABB 2CDS272061R0254 S202M-C25UC 2P 25A 10kA System Pro M Miniature Circuit Breaker

The ABB S202M-C25UC (SKU: 2CDS272061R0254) is a 2-pole 25A miniature circuit breaker (MCB) from the System Pro M series, delivering 10 kA breaking capacity for reliable overcurrent protection in commercial and industrial installations. Designed to IEC/EN 60898-2 and IEC/EN 60947-2 standards, the S202M-C25UC provides dependable short-circuit and overload protection with a compact DIN rail footprint of 35 mm × 88 mm × 69 mm and a weight of just 0.24 kg.

Technical Specifications

Certifications & Standards

• IEC 60898-2: International standard for circuit breakers for AC and DC use in household and similar installations
• EN 60898-2: European harmonised standard for circuit breakers for AC and DC domestic use
• IEC/EN 60898-2: Combined IEC and EN certification for AC/DC circuit breaker performance
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers for industrial applications
• IEC 60898-1400: Circuit breaker standard variant (400 V AC rating)
• IEC 60898-1440: Circuit breaker standard variant (440 V AC rating)
• IEC 60898-2400: DC circuit breaker standard variant (400 V DC rating)
• IEC 60898-2440: DC circuit breaker standard variant (440 V DC rating)
• IEC 60947-2440: Industrial circuit breaker standard at 440 V
• IEC 60068-2: Environmental testing standard for durability and climatic performance
• EN 45555: General methods for assessing the energy-related aspects of networked standby
• EN 60664: Insulation coordination for equipment within low-voltage supply systems
• EN 60898-2: European standard for circuit breakers for AC and DC household installations
• EN 60947-2: European standard for low-voltage industrial circuit breakers
• CSA: Canadian Standards Association certification for North American market compliance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Compliant with EU REACH Regulation (EC) No 1907/2006 on chemical substances
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive 2012/19/EU
