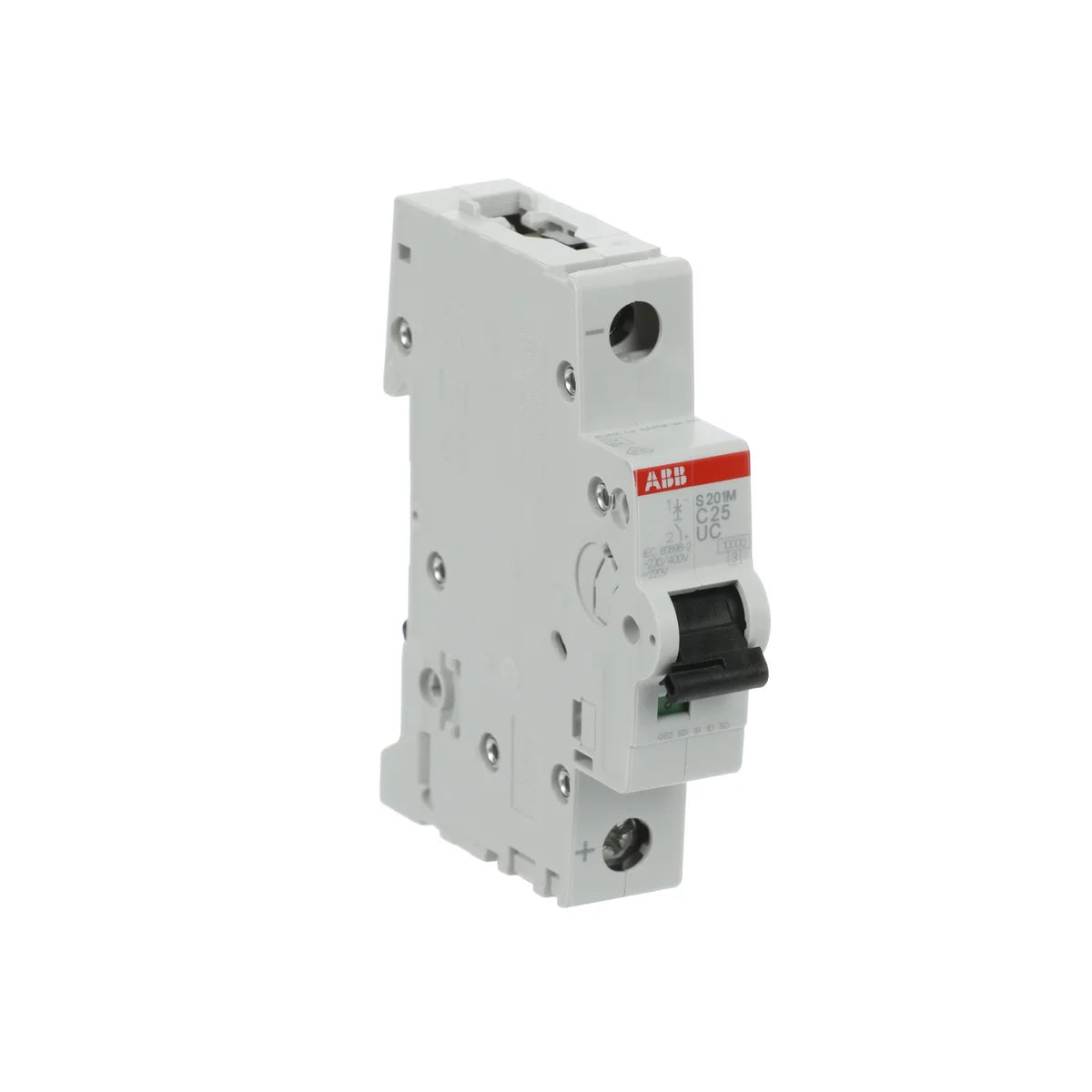

ABB 2CDS271061R0254 S201M-C25UC 1P 25A 10kA Type C Miniature Circuit Breaker

The ABB S201M-C25UC (SKU: 2CDS271061R0254) is a 1-pole, 25 A Type C miniature circuit breaker from the S200MUC series, designed for reliable overcurrent and short-circuit protection on DIN rail-mounted distribution boards. With a breaking capacity of 10 kA, the S201M-C25UC delivers robust performance suitable for commercial and industrial electrical installations where dependable modular circuit protection is essential.

Technical Specifications

Applications & Use Cases

• Commercial Buildings: Branch circuit protection in office, retail, and hospitality distribution boards.
• Industrial Panels: Overcurrent and short-circuit protection for control panels and machine circuits requiring a Type C trip characteristic.
• Modular Distribution Systems: DIN rail integration into modular enclosures for flexible, expandable electrical distribution.
• Motor & Transformer Loads: Type C curve suits loads with moderate inrush currents such as small motors, transformers, and fluorescent lighting.

Frequently Asked Questions

What does the Type C trip curve mean for the S201M-C25UC?

A Type C characteristic means the MCB trips instantaneously when the fault current is between 5× and 10× the rated current (25 A). This makes the S201M-C25UC well suited to loads with moderate inrush currents such as small motors and transformers, while still providing fast protection against serious short-circuit events.

What is the breaking capacity of the S201M-C25UC?

The S201M-C25UC has a rated ultimate short-circuit breaking capacity (Icu) of 10 kA, providing robust protection in circuits where fault currents could reach significant levels.

Is the S201M-C25UC compatible with ABB auxiliary accessories?

The S200MUC series is designed to accept a range of ABB snap-on accessories including auxiliary contacts, alarm contacts, and shunt/undervoltage releases, enabling flexible configuration for your distribution board.

What DIN rail width is required?

The S201M-C25UC mounts on a standard 35 mm DIN rail (EN 60715), consistent with all ABB S200-series miniature circuit breakers.
