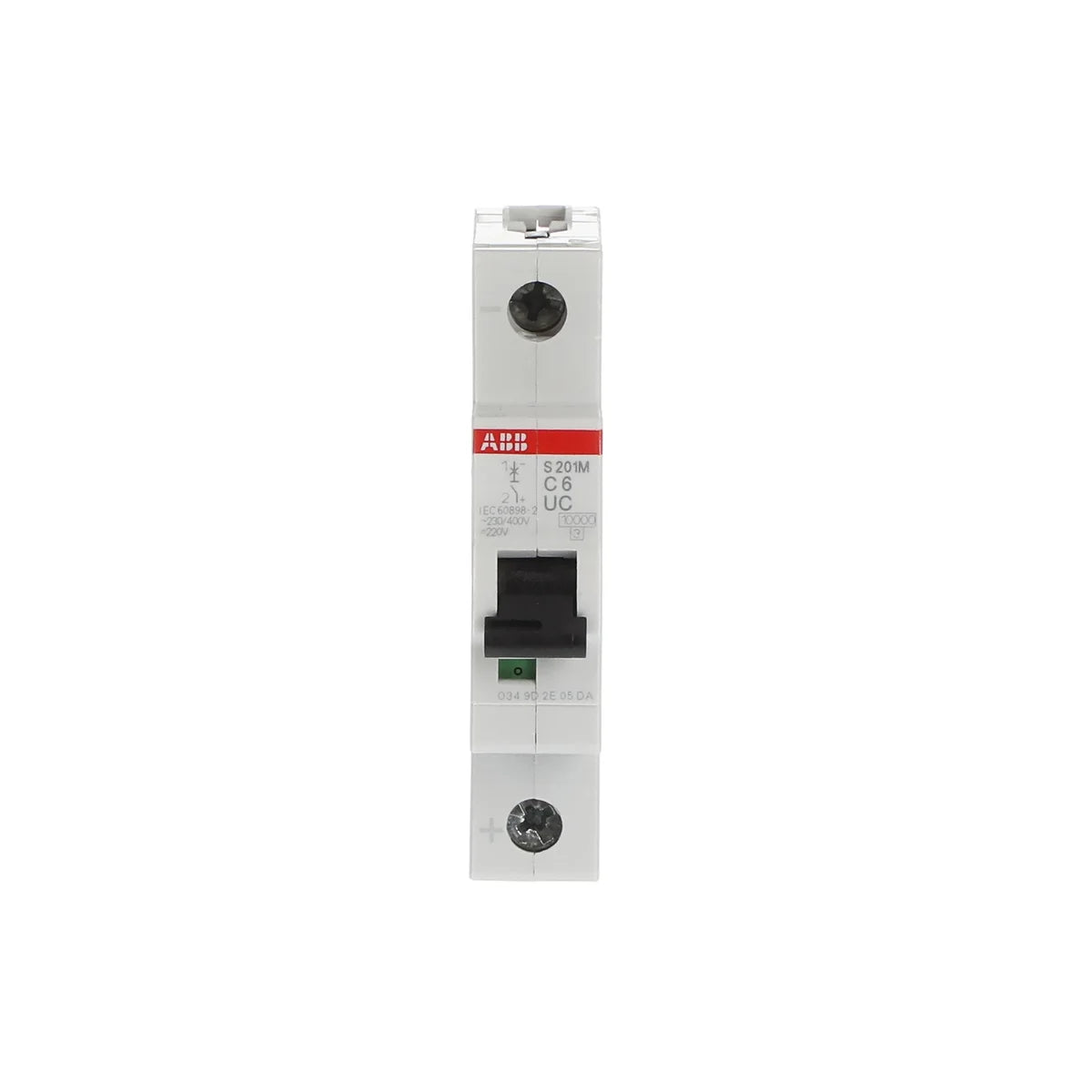

ABB 2CDS271061R0064 S201M-C6UC 1P 6A 10kA C-Curve Miniature Circuit Breaker

The ABB S201M-C6UC (SKU: 2CDS271061R0064) is a 1-pole, 6 A, C-curve miniature circuit breaker from the S200MUC series, rated at 10 kA breaking capacity and certified to IEC/EN 60898-2. Designed for AC applications in industrial control panels and distribution boards, the S201M-C6UC delivers reliable overcurrent and short-circuit protection in a compact 17.5 mm wide DIN-rail mount housing.

Technical Specifications

Certifications & Standards

• IEC 60898-2: International standard for circuit breakers for overcurrent protection for household and similar installations (AC/DC)
• EN 60898-2: European harmonised standard equivalent to IEC 60898-2
• IEC/EN 60898-2: Combined IEC and EN compliance for household and similar circuit breakers
• IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers for industrial applications
• IEC 60898-1220: IEC 60898-1 test condition variant 220 V
• IEC 60898-1230: IEC 60898-1 test condition variant 230 V
• IEC 60898-2220: IEC 60898-2 test condition variant 220 V
• IEC 60898-2230: IEC 60898-2 test condition variant 230 V
• IEC 60947-2253: IEC 60947-2 test condition variant 253 V
• IEC 60947-2220: IEC 60947-2 test condition variant 220 V
• IEC 60068-2: Environmental testing — standard for climatic and mechanical robustness
• EN 45555: General methods for the assessment of the ability to recover, reuse, and recycle energy-related products
• EN 60664: Insulation coordination for equipment within low-voltage supply systems
• EN 60898-2: European standard for circuit breakers in AC and DC applications
• EN 60947-2: European standard for low-voltage industrial circuit breakers
• CSA: Canadian Standards Association certification for North American market compliance
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: EU chemical safety regulation compliance (SVHC substances)
• WEEE: Waste Electrical and Electronic Equipment Directive compliance for responsible disposal

Applications & Use Cases

• Overcurrent and short-circuit protection in residential and commercial distribution boards
• Industrial control panels requiring compact 17.5 mm single-pole protection
• Automation cabinets where AC circuit protection is needed at 6 A load levels
• Protection of lighting circuits, small motor feeders, and instrumentation supply lines
• Applications demanding dual compliance with IEC 60898-2 and IEC/EN 60947-2
