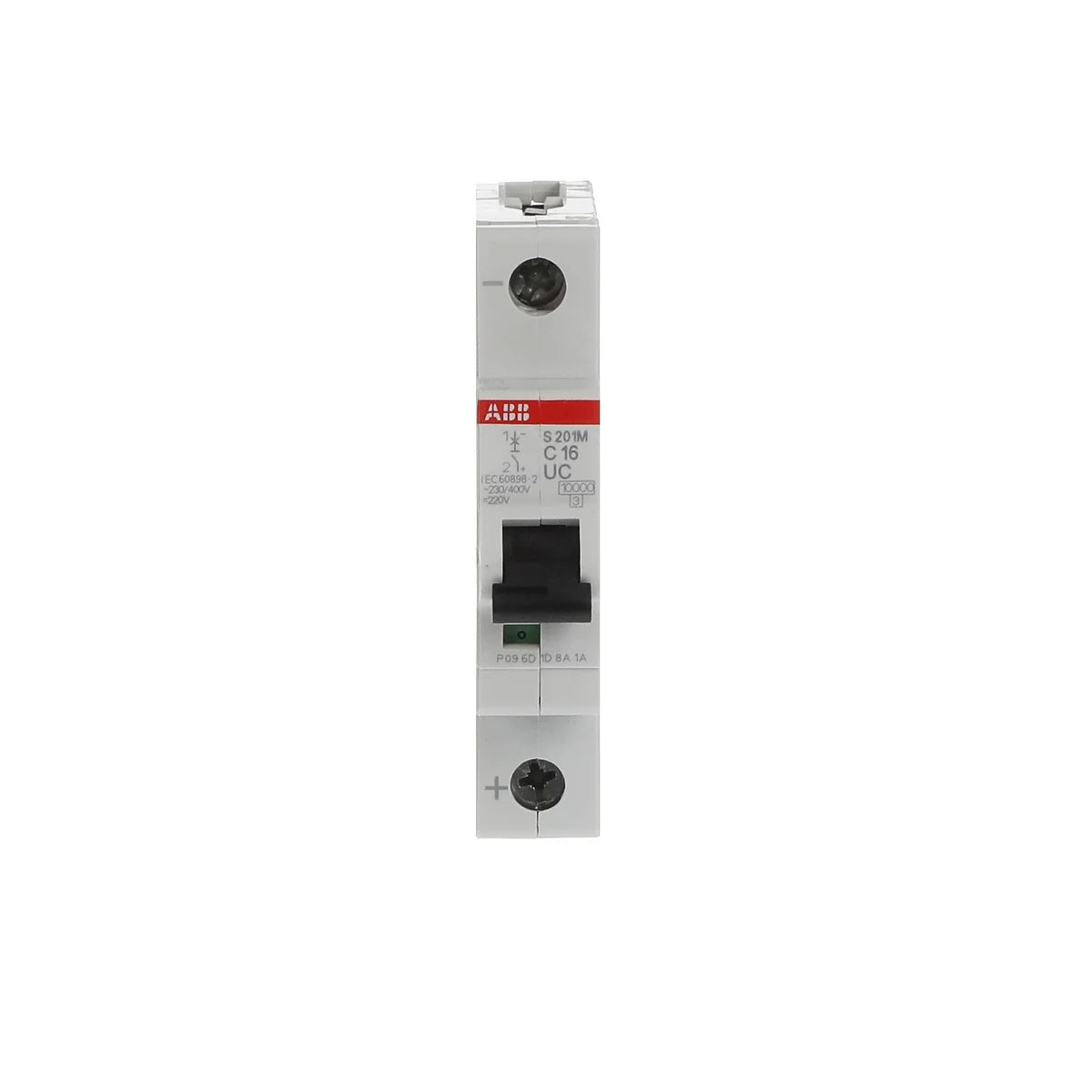

ABB 2CDS271061R0164 S201M-C16UC 1P 16A 10kA C-Curve Miniature Circuit Breaker MCB

The ABB S201M-C16UC (SKU: 2CDS271061R0164) is a 1-pole 16A miniature circuit breaker (MCB) from the S200MUC series, delivering a 10 kA breaking capacity and C-curve tripping characteristic for reliable overcurrent and short-circuit protection in industrial and commercial control panels. Compact at just 17.5 mm wide, the S201M-C16UC mounts directly on standard DIN rail and complies with both IEC/EN 60898-2 and IEC/EN 60947-2, making it suitable for AC and DC distribution systems alike.

Technical Specifications

Certifications & Standards

• IEC 60898-2: International standard for household and similar installations — AC and DC circuit breakers
• EN 60898-2: European harmonised standard equivalent to IEC 60898-2
• IEC/EN 60898-2: Combined IEC and EN compliance for AC/DC miniature circuit breakers
• IEC/EN 60947-2: Industrial low-voltage switchgear and controlgear — circuit breakers
• IEC 60898-1220: Additional IEC 60898-1 test condition compliance
• IEC 60898-1230: Additional IEC 60898-1 test condition compliance
• IEC 60898-2220: Additional IEC 60898-2 test condition compliance
• IEC 60898-2230: Additional IEC 60898-2 test condition compliance
• IEC 60947-2253: Additional IEC 60947-2 test condition compliance
• IEC 60947-2220: Additional IEC 60947-2 test condition compliance
• IEC 60068-2: Environmental testing standard for robustness and reliability
• EN 45555: General methods for the assessment of the ability to recover software-related parameters
• EN 60664: Insulation coordination for equipment within low-voltage systems
• EN 60898-2: European standard for AC/DC miniature circuit breakers
• EN 60947-2: European standard for low-voltage industrial circuit breakers
• CSA: Canadian Standards Association certification for North American markets
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: EU chemical safety regulation compliance
• WEEE: Waste Electrical and Electronic Equipment Directive compliance
• CE: European Conformity marking for the European Economic Area

Applications & Use Cases

• Overcurrent and short-circuit protection in residential, commercial, and industrial distribution boards
• Control panel protection in automation and industrial machinery
• DC circuit protection in photovoltaic (PV) and battery storage systems (IEC/EN 60898-2 UC rating)
• Final circuit protection for lighting, socket outlets, and general loads up to 16 A
• DIN rail-mounted installations requiring a slim 17.5 mm wide single-pole breaker
