Part number
2CDS271061R0024
Model no
S201M-C2UC
$38.24 Low stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

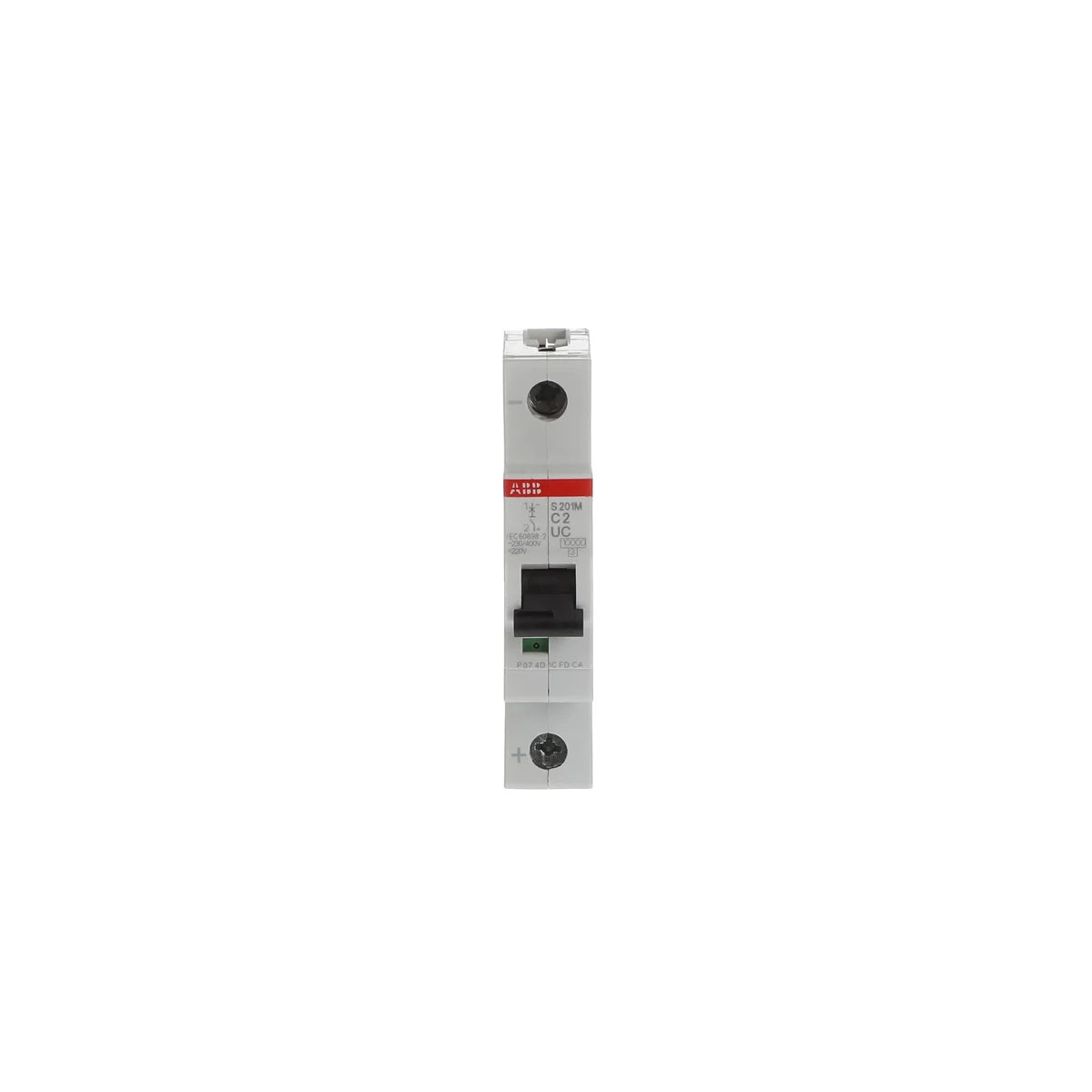

ABB 2CDS271061R0024 S201M-C2UC 1P 2A 10kA C-Curve Miniature Circuit Breaker

Rated current
2 A
Poles
1P
Breaking capacity
(110) 20 kA
EAN
4013614430725
Other ratings in ABB S200 All 8 ratings ↓
Neighbouring ratings in the same series
Motor power kW Rated current In (A) Part number Stock Price
2 2CDS271061R0024This part Low stock $38.24
3 2CDS271061R0034 In stock $59.92
4 2CDS271061R0044 On request $53.25
6 2CDS271061R0064 In stock $53.25
16 2CDS271061R0164 In stock $28.31
Description

About the S201M-C2UC

The ABB S201M-C2UC miniature circuit breaker (SKU 2CDS271061R0024) is a 1-pole, 2 A, C-curve MCB from the S200MUC series, rated for a breaking capacity of 10 kA and certified to IEC/EN 60898-2 for reliable overcurrent protection in AC systems. Compact at 17.5 mm wide, the S201M-C2UC is engineered for installation in space-constrained control panels, distribution boards, and industrial automation enclosures where high-performance circuit protection is essential.

Certifications & Standards

  • IEC 60898-2: International standard for circuit breakers for overcurrent protection in AC/DC household and similar installations
  • EN 60898-2: European adoption of IEC 60898-2 for circuit breakers in household and similar installations
  • IEC/EN 60664-1440: Insulation coordination for equipment within low-voltage systems (1440 V rating)
  • IEC/EN 60898-2: Combined IEC and EN compliance for AC/DC miniature circuit breakers
  • IEC/EN 60947-2: Low-voltage switchgear and controlgear — circuit breakers (industrial standard)
  • IEC 60898-1220: Circuit breaker performance standard at 220 V rating level
  • IEC 60898-2220: Circuit breaker standard — AC/DC, 220 V application
  • IEC 60947-2253: Industrial circuit breaker standard at 253 V application
  • IEC 60947-2220: Industrial circuit breaker standard at 220 V application
  • IEC 60068-2: Environmental testing — climatic and mechanical durability
  • EN 45555: General methods for the assessment of the ability of energy-related products to be repaired, reused, remanufactured and recycled
  • EN 60664-1440: European standard for insulation coordination in low-voltage systems (1440 V)
  • EN 60898-2: European standard for miniature circuit breakers for AC/DC applications
  • EN 60947-2: European standard for low-voltage circuit breakers — industrial use
  • UL 1077: UL standard for supplementary protectors for use in electrical equipment
  • CSA: Canadian Standards Association certification for electrical safety
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
  • CE: Conforms to applicable European Union directives for the CE marking

Applications & Use Cases

  • Overcurrent and short-circuit protection in industrial control panels and distribution boards
  • Branch circuit protection in automation and control enclosures
  • >
  • Protection of sensitive electronic equipment and instrumentation in AC installations
  • Building automation and HVAC control panel circuit protection
  • Machine tool and industrial machinery control circuits requiring compact, high-breaking-capacity MCBs
Specification

Full specification

81 values · Last verified 30 Oct 2026

Technical 22

Dielectric Test Voltage 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu) (110 V DC) 20 kA, (220 V DC) 10 kA, (230 V AC) 10 kA, (253 V AC) 10 kA, (230 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics) (110 V DC) 10 kA
Power Supply Connection Please Note Polarity of Device
Contact Position Indication Red ON / Green OFF
Energy Limiting Class 3
Electrical Endurance 20000 AC cycle
Mechanical Endurance 20000 cycle
Number of Protected Poles 1
Number of Poles 1P
Tightening Torque 2.8 N·m
Screw Terminal Type Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking I / O
Actuator Material Insulation Group II, Black, Sealable
Options Provided Universal current
Recommended Screw Driver Pozidriv 2
Accessories Available Yes
Remarks Please note polarity of device
Connecting Capacity Busbar 10/10 mm², Flexible with Ferrule 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Flexible 0.75 ... 25 mm², Rigid 0.75 ... 35 mm², Stranded 0.75 ... 35 mm²
Installation Size acc. to DIN 43880 1
Terminal Type Screw Terminals
Actuator Type Toggle

Electrical 11

Tripping Characteristic C
Rated Operational Voltage acc. to IEC 60898-1 220 V DC, acc. to IEC 60898-1 230 V AC, acc. to IEC 60898-2 220 V DC, acc. to IEC 60898-2 230 V AC, acc. to IEC 60947-2 253 V AC, acc. to IEC 60947-2 220 V DC
Operational Voltage Maximum (Incl. Tolerance) 250 V DC, Maximum (Incl. Tolerance) 253 V AC, Minimum 12 V AC, Minimum 12 V DC
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp) 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV
Input Voltage Type AC/DC
Rated Current (In) 2 A
Rated Short-Circuit Capacity (AC) 10 kA, (220 V DC) 10 kA, (230 / 400 V AC) 10 kA, (230 V AC) 10 kA, (253 V DC) 10 kA, (230 V) 10 kA, (400 V) 10 kA
Rated Frequency (f) 50 / 60 Hz, DC
Power Loss 1.45 W, at Rated Operating Conditions per Pole 1.45 W
Overvoltage Category III

Design 1

Housing Material Insulation Group I, RAL 7035
Show all 81 specifications ↓ Show less ↑47 more values in Identification, Technical UL/CSA, Material Compliance, Environmental, Dimensions, Installation, External Classifications and Standards, Logistics.

Identification 11

Part number 2CDS271061R0024
Type designation S201M-C2UC
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614430725
ETIM class EC000042
eCl@ss 27141901
Package Level 1 Units carton 10 piece
Package Level 1 Gross Weight 1.21 kg

Technical UL/CSA 4

Maximum Operating Voltage UL/CSA 250 V DC, 480Y/277 V AC
Interrupting Rating acc. to UL1077 (110 V DC) 10 kA, (220 V AC) 10 kA, (250 V DC) 10 kA, (253 V AC) 6 kA, (480Y / 277 V AC) 10 kA
Connecting Capacity UL/CSA Busbar 14-8 AWG, Conductor 14-4 AWG
Tightening Torque UL/CSA 25 in·lb

Material Compliance 6

RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 20260312
REACH Information False - does not contain substances > 0.1 mass percentage
REACH Date 20260312
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Environmental 7

Ambient Air Temperature Operation -25 ... +55 °C, Storage -40 ... +70 °C
Reference Ambient Air Temperature 30 °C
Degree of Protection IP20, Enclosure with Cover IP40
Pollution Degree 3
Environmental Conditions 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 %
Resistance to Vibrations 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27 25g 2 shocks 13 ms

Dimensions 7

Width in Number of Modular Spacings 1
Product Net Width 17.5 mm
Product Net Height 85 mm
Product Net Depth / Length 69 mm
Product Net Weight 0.117 kg
Pole Net Weight 0.125 kg
Built-In Depth (t2) 69 mm

Installation 2

Mounting on DIN Rail TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position any

External Classifications and Standards 6

ETIM 10 EC000042 - Miniature circuit breaker (MCB)
UNSPSC 39121603
eClass V11.0 : 27141901
Standards IEC/EN 60898-2, IEC/EN 60947-2
Certification Agency EN, IEC
Standardization Body EN, IEC

Logistics 4

Shipping weight 1.3 kg
Ships from Türkiye
Dispatch 17 Nov
Stock Low stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 2CDS271061R0024

No documents are on file for this part yet.

Ask us for the datasheet
Other ratings

All 8 ratings in ABB S200

ABB ABB S200 series page →
Other ratings in the same series
Motor power Rated current Part number Model no Stock Dispatch Price Add to cart
2 A 2CDS271061R0024 This part S201M-C2UC Low stock $38.24
3 A 2CDS271061R0034 S201M-C3UC In stock $59.92
4 A 2CDS271061R0044 S201M-C4UC On request — $53.25 Quote
6 A 2CDS271061R0064 S201M-C6UC In stock $53.25
16 A 2CDS271061R0164 S201M-C16UC In stock $28.31
20 A 2CDS271061R0204 S201M-C20UC Critical stock $28.31
25 A 2CDS271061R0254 S201M-C25UC In stock $28.31
32 A 2CDS271061R0324 S201M-C32UC On request — $35.40 Quote
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • IEC/EN 60898-2
  • IEC/EN 60947-2
Quick answers

Questions about the S201M-C2UC

What is the rated current of S201M-C2UC?

The rated current of S201M-C2UC is 2 A.

What is the HS code of S201M-C2UC for customs?

The tariff (HS) code on file for S201M-C2UC is 853620.

What is the EAN of S201M-C2UC?

The EAN (GTIN) of S201M-C2UC is 4013614430725.

Where does S201M-C2UC ship from, and how fast?

S201M-C2UC ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
