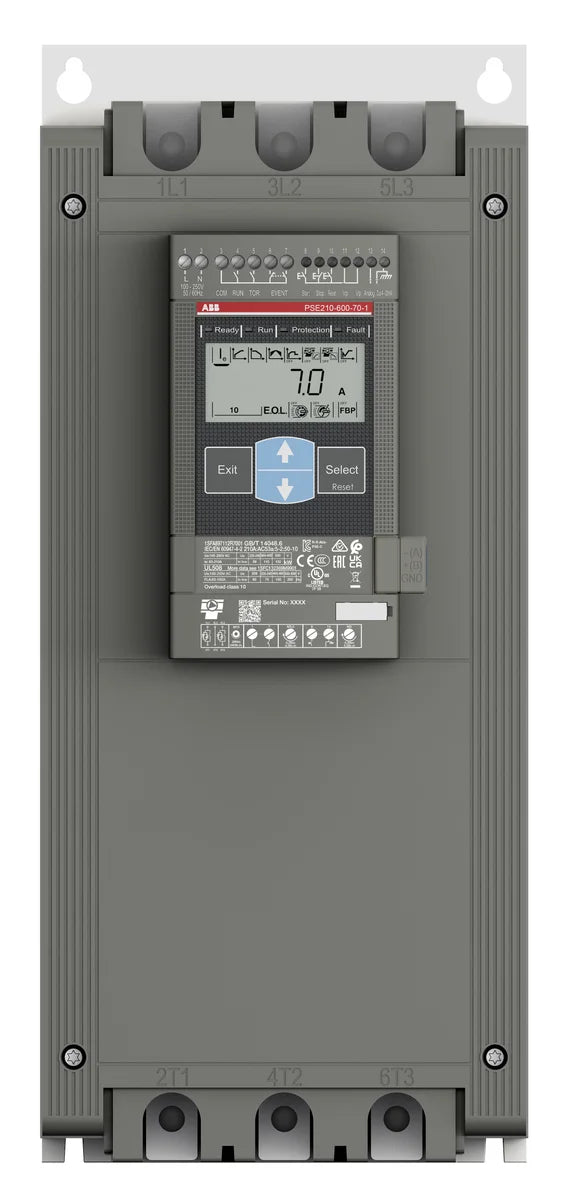

ABB 1SFA897112R7001 PSE210-600-70-1 210A 3P 208-600V AC Soft Starter

The ABB PSE210-600-70-1 soft starter (SKU 1SFA897112R7001) is a 3-pole, 210 A solid-state motor soft starter from the ABB PSE series, rated for 208–600 V AC supply voltage and suitable for up to 110 kW motor loads. Designed for industrial motor control applications, the PSE210-600-70-1 delivers smooth motor acceleration and deceleration, reducing mechanical stress and extending drive-train service life. With a control voltage range of 110–250 V and a compact 11.2 kg construction, this unit integrates readily into standard control panels and motor control centres.

Technical Specifications

Certifications & Standards

• RoHS II: Compliant with the EU Restriction of Hazardous Substances Directive (recast), confirming restriction of harmful materials in electrical equipment
• REACh: Compliant with EU REACH regulation on registration, evaluation, authorisation and restriction of chemicals
• IEC 60529: Tested and rated in accordance with the international standard for degrees of protection provided by enclosures
• IEC 60947-1: Designed and tested in accordance with IEC 60947-1, the general rules for low-voltage switchgear and controlgear
• CSA: Certified by the Canadian Standards Association for the North American market
• CCC: China Compulsory Certification, confirming compliance for sale and use in the Chinese market
• CE: Carries the CE mark, confirming conformity with applicable EU health, safety, and environmental protection legislation

Applications & Use Cases

• Controlled soft-start and soft-stop of heavy-duty AC induction motors in pumps, fans, compressors, and conveyors
• Motor control centres (MCCs) and industrial control panels requiring reduced inrush current on start-up
• HVAC and building services applications with large fan or pump motors
• Process industries including water treatment, mining, and manufacturing where mechanical shock on motor start must be minimised
• Applications demanding broad supply voltage compatibility across global 208–600 V AC infrastructure
