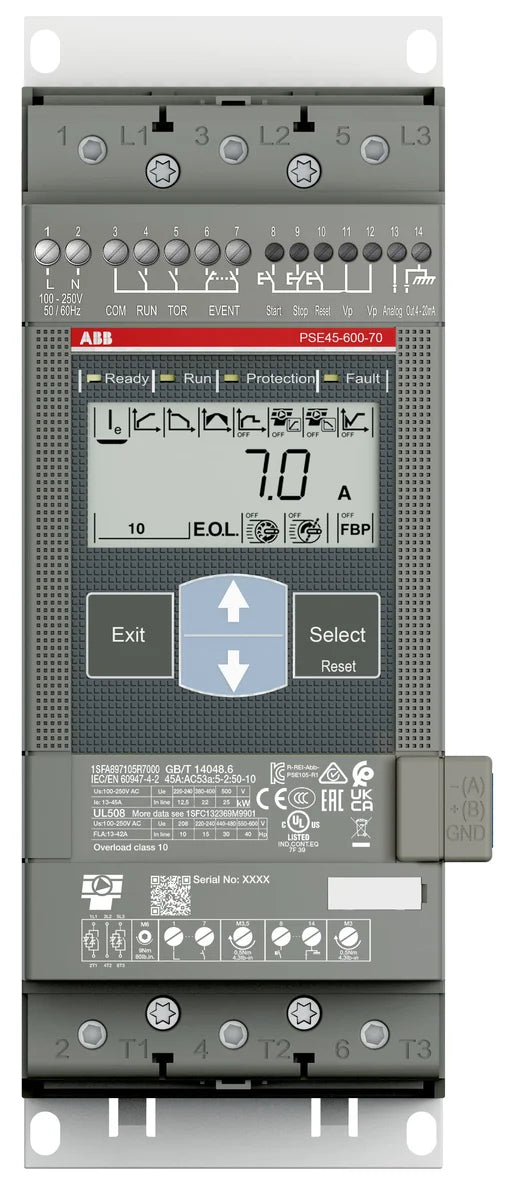

ABB 1SFA897105R7000 PSE45-600-70 45A 208-600V AC 3P 22kW Soft Starter

The ABB PSE45-600-70 soft starter (SKU 1SFA897105R7000) is a 45 A, 3-phase electronic soft starter rated for 208–600 V AC supply voltage, delivering smooth motor starting and stopping for 22 kW loads in industrial automation and control panel applications. Part of ABB's proven PSE series, the PSE45-600-70 accepts a wide control voltage range of 110–250 V, making it compatible with global installation standards.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60529: Degrees of protection provided by enclosures (IP Code)
• EN 60529: European adoption of the IEC 60529 IP protection standard
• CSA: Canadian Standards Association certification for North American markets
• CCC: China Compulsory Certification for the Chinese market
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• RoHS II: Updated RoHS Directive compliance, including Annex II substances
• REACh / REACH: Compliance with EU Regulation on Registration, Evaluation, Authorisation and Restriction of Chemicals
• WEEE: Waste Electrical and Electronic Equipment Directive compliance for end-of-life recycling

Applications & Use Cases

The ABB PSE45-600-70 is designed for engineers and plant operators who require controlled motor acceleration and deceleration to reduce mechanical stress, inrush current, and energy consumption. Typical applications include pumps, fans, compressors, conveyors, and other three-phase motor-driven machinery in manufacturing, water treatment, HVAC, and process automation environments. Its wide supply voltage range (208–600 V AC) and broad control voltage acceptance (110–250 V) make the PSE45-600-70 suitable for both European and North American installations without hardware modification.

Frequently Asked Questions

• What motor size does the PSE45-600-70 support? The PSE45-600-70 is rated for motors up to 22 kW at the appropriate supply voltage within the 208–600 V AC range.
• What control voltage does the PSE45-600-70 accept? The control circuit accepts 110–250 V, covering both 120 V and 230 V control supply standards.
• Is the ABB PSE45-600-70 suitable for use in North America? Yes. The PSE45-600-70 carries CSA certification and supports 208–600 V AC supply, making it compatible with North American electrical standards.
• What is the weight of the PSE45-600-70? The unit weighs 3.2 kg.
