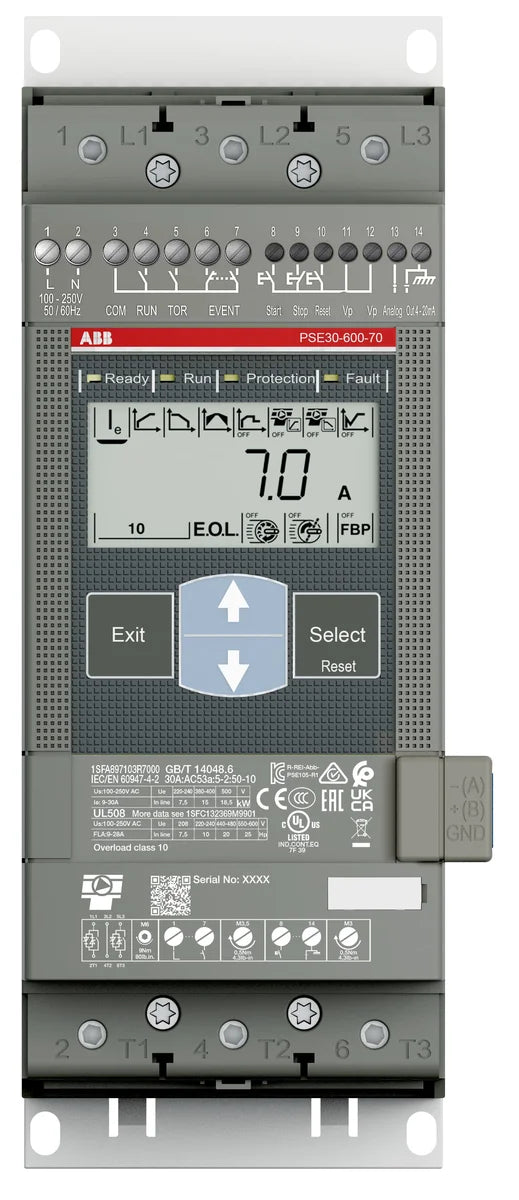

ABB 1SFA897103R7000 PSE30-600-70 30A 208-600V AC 3P 15kW Soft Starter

The ABB PSE30-600-70 (SKU: 1SFA897103R7000) is a 30 A, 3-phase electronic soft starter from the ABB PSE Series, designed to provide smooth motor starting and stopping across a wide supply voltage range of 208–600 V AC. Rated for 15 kW motor loads with a control voltage of 110–250 V, this compact unit measures 90 × 245 × 184 mm and weighs just 2.5 kg, making it suitable for integration into standard industrial control panels and motor control centres.

Technical Specifications

Certifications & Standards

• CE: Compliant with European Union low-voltage and EMC directives
• IEC 60947-1: General rules for low-voltage switchgear and controlgear
• IEC 60529 / EN 60529: Degrees of protection provided by enclosures (IP rating standard)
• CSA: Certified to Canadian Standards Association requirements for North American markets
• CCC: China Compulsory Certification for the Chinese market
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• RoHS II: Compliant with the updated RoHS 2011/65/EU directive
• REACh / REACH: Compliant with EU Registration, Evaluation, Authorisation and Restriction of Chemicals regulation
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Soft starting and stopping of three-phase AC induction motors in pumps, fans, compressors, and conveyors
• Reduction of mechanical stress and inrush current during motor start-up in industrial automation systems
• Integration into motor control centres (MCC), control panels, and process automation equipment
• Applications requiring wide supply voltage compatibility across 208–600 V AC networks
• Global deployments requiring multi-market certification (CE, CSA, CCC)
