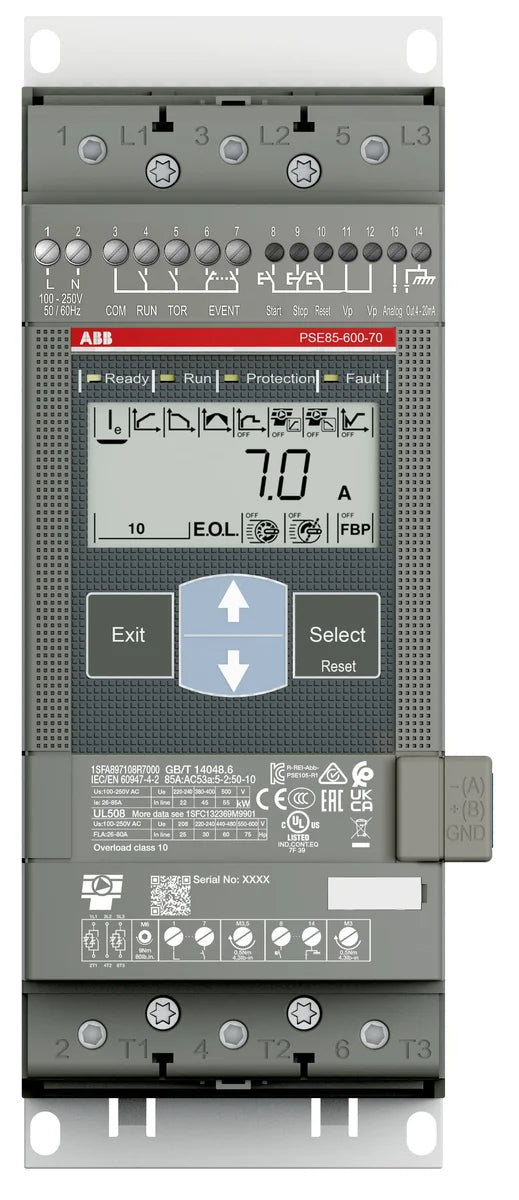

ABB 1SFA897108R7000 PSE85-600-70 85A 208-600V AC 3P 45kW Soft Starter

The ABB PSE85-600-70 soft starter (SKU: 1SFA897108R7000) is a 3-pole, 85A electronic motor soft starter rated for 208–600V AC supply voltage, delivering smooth motor starting and stopping for up to 45kW loads in demanding industrial automation environments. Part of ABB's trusted PSE series, this unit features a compact 90mm × 245mm × 184mm footprint, a control voltage range of 110–250V, and comprehensive certification coverage including CE, CSA, CCC, and IEC 60947-1 compliance.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU safety, health, and environmental requirements
• CSA: Canadian Standards Association — certified for use in North American markets
• CCC: China Compulsory Certification — approved for the Chinese market
• IEC 60947-1: International standard for low-voltage switchgear and controlgear — general rules
• IEC 60529 / EN 60529: International and European standard for degrees of protection (IP ratings)
• RoHS: Restriction of Hazardous Substances — compliant with EU directive on restricted materials
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU chemical safety compliance
• WEEE: Waste Electrical and Electronic Equipment directive — responsible end-of-life recycling compliance

Applications & Use Cases

The ABB PSE85-600-70 is engineered for applications where controlled motor acceleration and deceleration are critical. Typical use cases include pumps, fans, compressors, conveyors, and other rotating machinery in industrial plants, water treatment facilities, HVAC systems, and process automation. Its wide voltage range (208–600V AC) makes it suitable for both North American and European three-phase power systems, while the compact form factor facilitates integration into motor control centres (MCCs) and control panels. The PSE series soft starter reduces mechanical stress on driven equipment and cuts inrush current, extending both motor and mechanical system service life.

Frequently Asked Questions

What is the maximum motor power for the PSE85-600-70?
The PSE85-600-70 supports motors up to 45 kW at rated voltage.

What control voltage does the PSE85-600-70 require?
The unit accepts a control voltage in the range of 110–250V AC.

Is the ABB PSE85-600-70 suitable for global use?
Yes. With certifications including CE, CSA, CCC, and IEC 60947-1, the PSE85-600-70 is approved for use in European, North American, and Chinese markets.

What are the physical dimensions and weight?
The PSE85-600-70 measures 90mm (W) × 245mm (H) × 184mm (D) and weighs 2.6 kg.
