- Part number
- 1SFA619600R6306
- Model no
- CB1-630B
In stock · 15
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- UKCA
- CCC
- EAC
Description
About the CB1-630B
About the CB1-630B

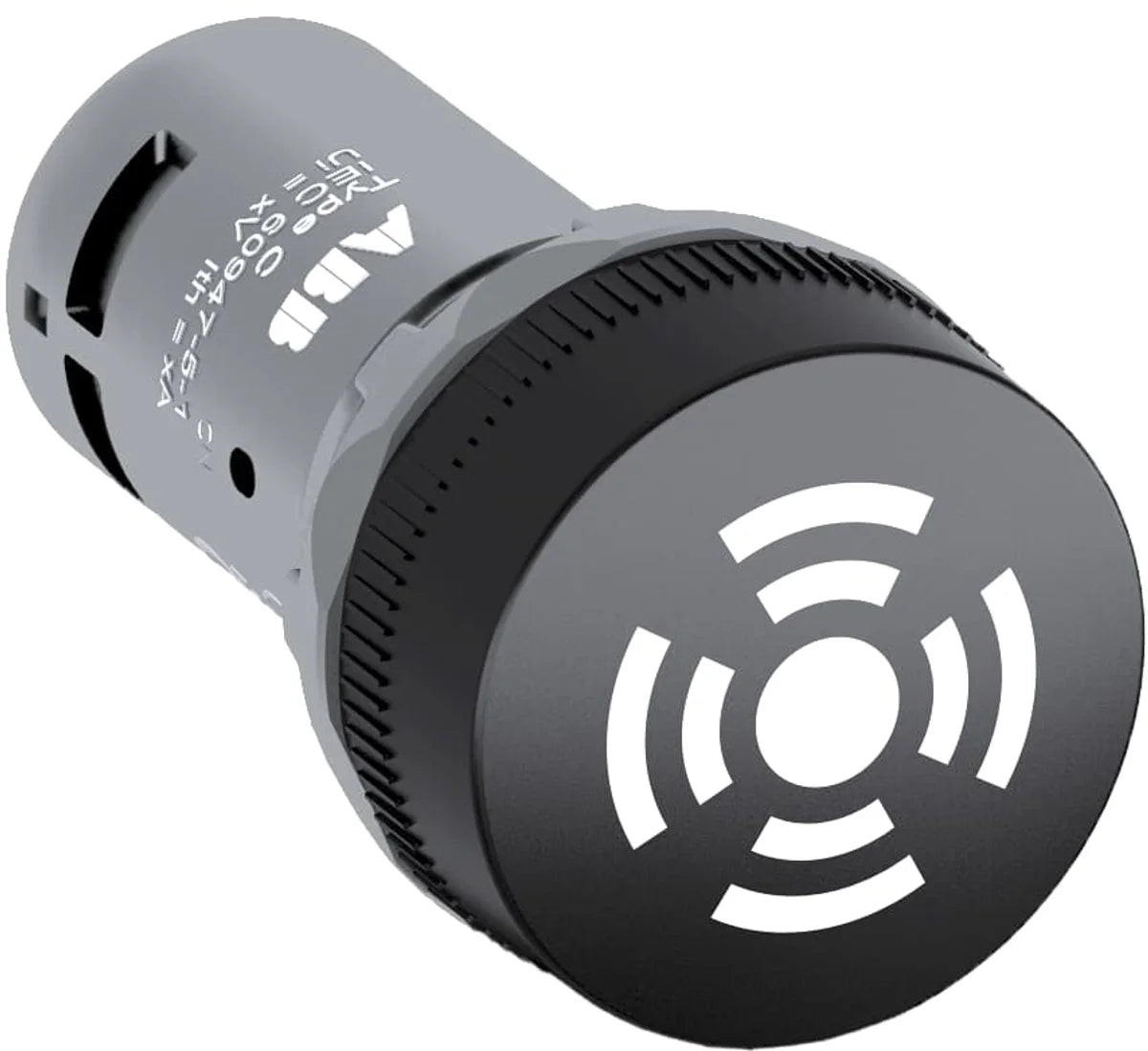

The ABB CB1-630B (SKU: 1SFA619600R6306) is a compact 24V AC/DC buzzer designed for industrial control panels and automation systems. Part of the ABB CB1 series, the CB1-630B delivers a reliable audible alert signal in a space-saving 30 x 30 x 55 mm housing weighing just 21 grams, making it ideal for integration into machine control enclosures where panel space is at a premium.
Certifications & Standards
- CE: Compliant with European Union safety, health, and environmental requirements
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
- CCC: China Compulsory Certification — approved for the Chinese market
- EAC: Eurasian Conformity — approved for the Eurasian Economic Union markets
- UKCA: UK Conformity Assessed — approved for the Great Britain market post-Brexit
Applications & Use Cases
- Audible alarm signalling in industrial control panels and enclosures
- Machine status indication in manufacturing and process automation
- Fault and warning alerts in motor control centres (MCCs)
- General-purpose buzzer for 24V DC control circuits
- Suitable for use with ABB pilot devices and control station assemblies
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.021 kg |
Technical 15
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Illumination | Non-illuminated |
| Function | Pulsating sound without light |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Supply Circuit 24 V AC/DC |
| Power Loss | Maximum 1.7 W |
| Sound dB (A) | 90 dB |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 52 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619600R6306 |
|---|---|
| Type designation | CB1-630B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500556924 |
| eCl@ss | 27371214 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001026 - Acoustic indicator |
|---|---|
| ETIM 7 | EC001026 - Acoustic indicator |
| eClass | V11.0 : 27371214 |
| UNSPSC | 46171607 |
| E-Number (Sweden) | 3705044 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 125 mm |
| Package Level 1 Gross Weight | 0.214 kg |
| Package Level 1 EAN | 7320500402061 |
| Shipping weight | 0.214 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619600R6306 11
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SFC151007C02__
Data Sheet, Technical Information 1SFC151007C02__
-
Manual
ProductDownload PDF: Instructions and Manuals 1SFC151011M0201
Instructions and Manuals 1SFC151011M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006479
REACH Declaration 2CMT2022-006479
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006498
RoHS Declaration 2CMT2022-006498
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2CMT2015-005451
Declaration of Conformity - CE 2CMT2015-005451
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2CMT2020-006121
Declaration of Conformity - UKCA 2CMT2020-006121
-
Certificate
ProductDownload PDF: CB Certificate CQC_CN_CN50749
CB Certificate CQC_CN_CN50749
-
Certificate
ProductDownload PDF: CCC Certificate 2024010305654692
CCC Certificate 2024010305654692
-
Certificate
ProductDownload PDF: CQC Certificate CQC2003010305054693
CQC Certificate CQC2003010305054693
-
Certificate
ProductDownload PDF: cURus Certificate UL_E496500-20171020
cURus Certificate UL_E496500-20171020
-
Certificate
ProductDownload PDF: DNV GL Certificate 9AKK107046A3749
DNV GL Certificate 9AKK107046A3749
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CB1-630B
Which supply voltage is CB1-630B rated for?
The rated operational voltage of CB1-630B is 24–DC V DC.
What is the HS code of CB1-630B for customs?
The tariff (HS) code on file for CB1-630B is 85369001.
What is the EAN of CB1-630B?
The EAN (GTIN) of CB1-630B is 7320500556924.
Where does CB1-630B ship from, and how fast?
CB1-630B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
