- Part number
- 1SFA619600R6206
- Model no
- CB1-620B
Description
About the CB1-620B
About the CB1-620B

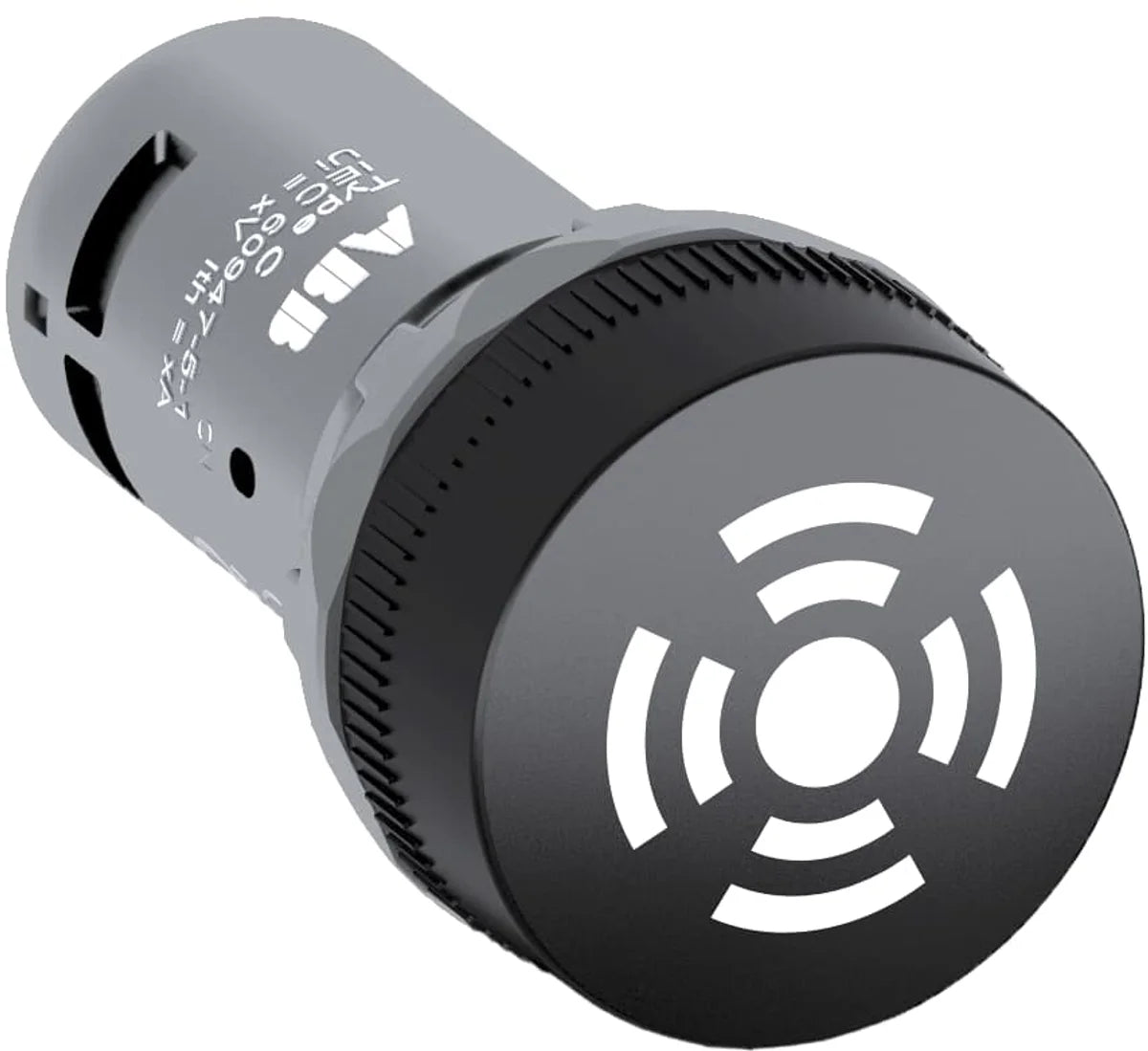

The ABB CB1-620B Buzzer (SKU: 1SFA619600R6206) is a compact 24V audible signalling device from the CB1 Compact Series, designed for industrial control panels, automation systems, and machine safety applications. Measuring just 30 x 30 x 55 mm and weighing 21 g, the CB1-620B delivers reliable audible alerts in demanding industrial environments where visual indication alone is insufficient.
Certifications & Standards
- CE: Conforms to European Union safety, health, and environmental protection requirements
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive — free from restricted materials
- REACH: Compliant with EU REACH regulation on chemical substance safety
- WEEE: Registered under EU Waste Electrical and Electronic Equipment Directive for responsible disposal
- CCC: China Compulsory Certification — approved for the Chinese market
- EAC: Eurasian Conformity mark — approved for the Eurasian Economic Union market
- UKCA: UK Conformity Assessed — approved for the Great Britain market post-Brexit
Applications & Use Cases
- Industrial control panels requiring audible fault or alarm signalling
- Machine automation systems where operator attention is critical
- Manufacturing and process control environments
- Building automation and HVAC control cabinets
- Safety interlock and alert systems on production lines
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.021 kg |
Technical 15
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Black |
| Illumination | Non-illuminated |
| Function | Continuous sound without light |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Supply Circuit 24 V AC/DC |
| Power Loss | Maximum 1.2 W |
| Sound dB (A) | 90 dB |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 52 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619600R6206 |
|---|---|
| Type designation | CB1-620B |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500556887 |
| eCl@ss | 27371214 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC001026 - Acoustic indicator |
|---|---|
| ETIM 7 | EC001026 - Acoustic indicator |
| eClass | V11.0 : 27371214 |
| UNSPSC | 46171607 |
| E-Number (Sweden) | 3705043 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 235 mm |
| Package Level 1 Height | 125 mm |
| Package Level 1 Gross Weight | 0.214 kg |
| Package Level 1 EAN | 7320500401743 |
| Shipping weight | 0.214 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619600R6206
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CB1-620B
Which supply voltage is CB1-620B rated for?
The rated operational voltage of CB1-620B is 24 V AC.
What is the HS code of CB1-620B for customs?
The tariff (HS) code on file for CB1-620B is 85369001.
What is the EAN of CB1-620B?
The EAN (GTIN) of CB1-620B is 7320500556887.
Where does CB1-620B ship from, and how fast?
CB1-620B ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
Reviews
Customer reviews
Series
ABB CB1 Compact
