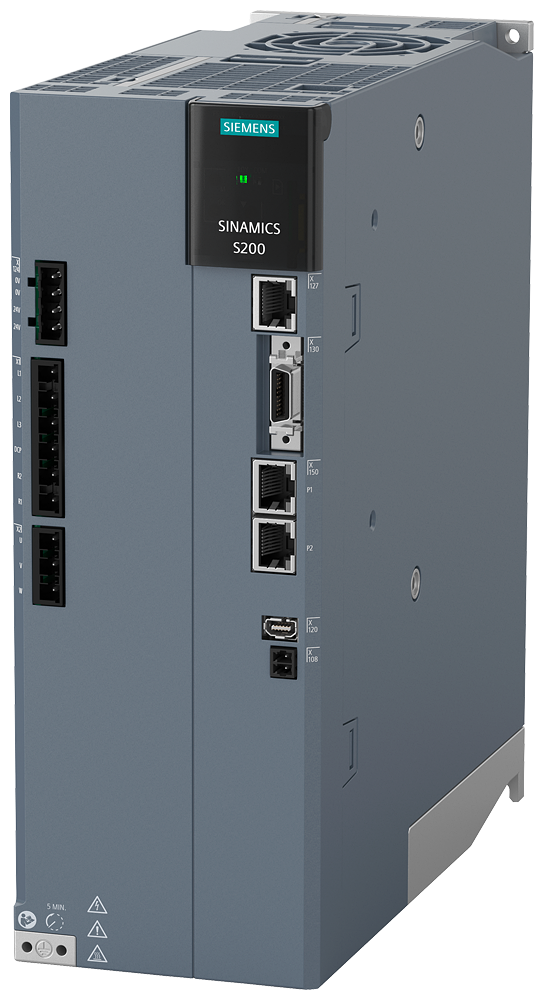

SINAMICS S200Siemens 6SL5510-1BE17-0AF0 SINAMICS S200 PN 7kW 400V PROFINET Servo Drive
SINAMICS S200 PN servo drive, 400V 3AC, 7kW, PROFINET, 13.2A rated.
Description
About the 6SL5510-1BE17-0AF0
About the 6SL5510-1BE17-0AF0
The Siemens 6SL5510-1BE17-0AF0 is a SINAMICS S200 servo drive with integrated PROFINET, sized for a 7 kW motor and taking a 380-480 V 3AC input rated 14.2 A. It delivers 13.2 A rated output current (37.4 A max.) at up to 550 Hz, in an IP20 Frame Size D enclosure measuring 95 x 260 x 230 mm.
Selection Notes
PN in the type designation marks the integrated PROFINET interface, which is what distinguishes this S200 variant from a pulse/analog-only version and lets it run cyclic motion control over the same network as the rest of a SIMATIC line without a separate fieldbus module. The 13.2 A rated / 37.4 A max. output sizes it to 7 kW servo motors, and full output is only guaranteed up to 45 C ambient before power derating applies above that toward the 55 C limit.
Applications
PROFINET-networked single-axis servo positioning at the 7 kW power level, such as extruder, winder, or high-torque conveyor axes coordinated from a SIMATIC controller.
Specification
Full specification
| Part number | 6SL5510-1BE17-0AF0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4034106445690 |
| Rated current | 13.2 A |
|---|---|
| Rated operational voltage | 380–480, 3AC V AC |
| Motor power | 7.0 kW |
| Communication | PROFINET |
| Protection type | IP20 |
| Shipping weight | 5.02 kg |
|---|---|
| Mounting | Panel |
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
| Series | SINAMICS S200 |
|---|---|
| Number of phases | 3 AC |
| Line voltage | 380-480 V, +10%/-15% |
| Line frequency | 45-66 Hz |
| Rated input current | 14.0 A |
| Rated power | 7.00 kW |
| Max. output current | 37.4 A |
| Pulse frequency | 8 kHz |
| Output frequency | 0-550 Hz |
| Electronics power supply | 20.4-28.8 V DC |
| Degree of protection | IP20 / UL open type |
| Dimensions (W x H x D) | 95 x 260 x 230 mm, Frame Size D |
| Installation altitude, max. | 1,000 m |
| Ambient temperature, operation | 0 to 55 C (no derating to 45 C) |
| Weight | 4.00 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL5510-1BE17-0AF0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5510-1BE17-0AF0
What is the rated current of 6SL5510-1BE17-0AF0?
The rated current of 6SL5510-1BE17-0AF0 is 13.2 A.
Which supply voltage is 6SL5510-1BE17-0AF0 rated for?
The rated operational voltage of 6SL5510-1BE17-0AF0 is 380–480, 3AC V AC.
What motor power is 6SL5510-1BE17-0AF0 rated for?
The rated motor power of 6SL5510-1BE17-0AF0 is 7.0 kW.
What is the HS code of 6SL5510-1BE17-0AF0 for customs?
The tariff (HS) code on file for 6SL5510-1BE17-0AF0 is 85044095.
What is the EAN of 6SL5510-1BE17-0AF0?
The EAN (GTIN) of 6SL5510-1BE17-0AF0 is 4034106445690.
Where does 6SL5510-1BE17-0AF0 ship from, and how fast?
6SL5510-1BE17-0AF0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
