Siemens 6SL3130-7TE28-0AA3 SINAMICS S120 Active Line Module 80kW 133A Booksize Drive Module

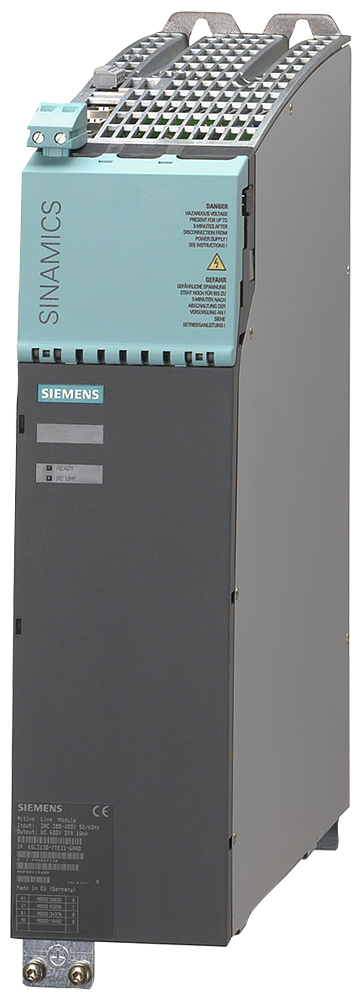

The Siemens 6SL3130-7TE28-0AA3 is a SINAMICS S120 Active Line Module (booksize) that rectifies a 3AC 342-528 V line into a regulated 600 V DC link, rated 80 kW / 133 A continuous with a 131 kW / 218 A overload capability. It is IP20 / UL open type, internally air-cooled, and includes the DRIVE-CLiQ cable.

Technical Specifications

Selection Notes

As an Active Line Module rather than a Basic (diode) Line Module, this unit regulates the DC link to 1.35x line voltage in Smart Mode and can feed regenerative braking energy back to the line — pick it over a Basic Line Module whenever the connected Motor Modules need braking energy recovery instead of a braking resistor. The 65 kA short-circuit strength rating and IP20/UL open-type protection fit standard cabinet installation. Size selection is set by the 80 kW / 133 A rated output versus the 131 kW / 218 A 60-second overload — the combined continuous load of the downstream Motor Modules on this DC link segment must stay within the 133 A rating.

Applications

Line supply and DC-link regulation for a booksize SINAMICS S120 multi-axis drive group where regenerative braking recovery is required, such as high-inertia winding, hoisting, or frequent deceleration applications.
