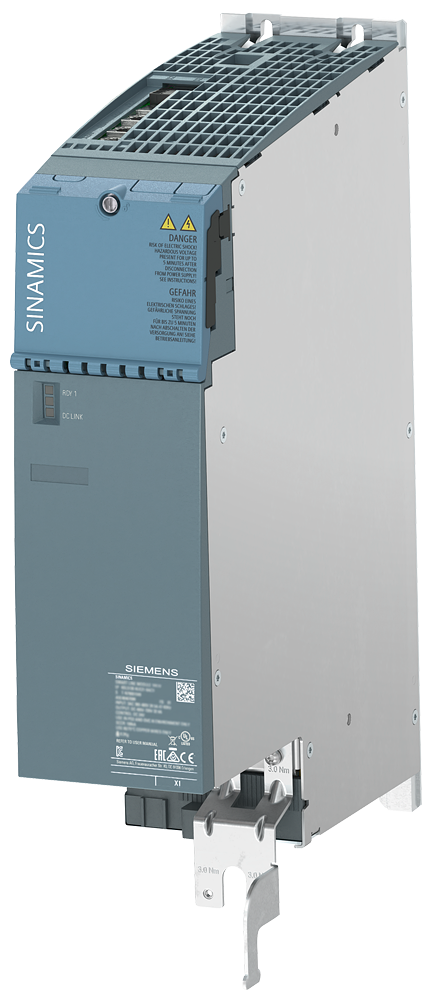

SINAMICS S200Siemens 6SL5130-6UE22-4AC0 SINAMICS S220 Smart Line Module 380-480V 24kW Booksize Drive Module
SINAMICS S220 Smart Line Module, 380-480V 3AC 43A in, 495-720VDC 24kW out, booksize C, IP20
Description
About the 6SL5130-6UE22-4AC0
About the 6SL5130-6UE22-4AC0
The Siemens 6SL5130-6UE22-4AC0 is a SINAMICS S220 Smart Line Module that supplies the DC link of a modular drive system, taking 380-480 V 3 AC at up to 43 A in and delivering 495-720 V DC out at 24 kW. Built in booksize C-type design with IP20 protection and internal air cooling, it requires firmware V5.2 SP3 HF10 or later.
Selection Notes
Select the 24 kW rating when the connected axis modules on the shared DC link need up to 43 A of line-side current, more headroom than the lower-current variant of this Smart Line Module offers; the firmware floor of V5.2 SP3 HF10 means older SINAMICS S200 control units must be updated before this module can be commissioned. The booksize C-type form factor sets the mechanical footprint for mounting next to matching axis modules on the same DC bus.
Specification
Full specification
Rated data 13
| Input: Number of phases | 3 AC |
|---|---|
| Input: Line voltage | 380 ... 480 V |
| Input: Line frequency | 47 ... 63 Hz |
| Input: Short-circuit strength 1) | 100 kA |
| Input: Rated current | 42.8 A |
| Input: Maximum current | 85.5 A |
| DC link capacitance: of the Line Module | 940 µF |
| Output: Rated voltage | 380 V / 400 V |
| Rated power: 24.0 kW | 25.3 kW |
| Maximum power | 48.0 kW / 51.0 kW |
| Rated current | 49.0 A |
| Maximum current | 97.0 A |
| for electronics power supply at | 24 V DC |
Electrical data 2
| Electronics power supply | DC 24 V (-15 % / 20 %) |
|---|---|
| Current consumption, max. | 0.70 A |
General technical specifications 3
| Line power factor: Fundamental power factor, minimal | 0.98 |
|---|---|
| Sound pressure level | 70 dB |
| Overvoltage category | IEC 61800-5-1:OVC III |
Show all 50 specifications ↓ Show less ↑32 more values in Identification, Ambient conditions, Connections, Mechanical data, Certificates, Logistics.
Identification 7
| Part number | 6SL5130-6UE22-4AC0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| Lifecycle status | Discontinued by the manufacturer |
| EAN | 4034106441098 |
Ambient conditions 5
| Ambient temperature in operation | -10 ... 55 °C (14 ... 131 °F) |
|---|---|
| Cooling air throughput | 77.000 m³/h (0.755 ft³/s) |
| Installation altitude | 1,000 m (3,281.00 ft) |
| Type of cooling | 4) / air cooling with integrated fan |
| RI suppression | Standard: No radio interference suppression; With line filter: Category C2b according to EN 61800-3 Total cable length up to 750 m (shielded) |
Connections 5
| Line side: Design | Plug connector with screw or push-in connection |
|---|---|
| Line side: Conductor cross-section | 6.0 ... 16 mm² (AWG 10 ... AWG 6) |
| PE conductor | M5 screw/ power connector |
| Line length, max.: Shielded | 1,000 m (3,281.00 ft) |
| Line length, max.: Unshielded | 1,200 m (3,937.00 ft) |
Mechanical data 6
| Degree of protection | IP20 |
|---|---|
| 480 V | Type of construction / Booksize |
| Dimensions | 61.0 kW |
| Dimensions: Width | 100 mm (3.94 in) |
| Dimensions: Depth | 270 mm (10.63 in) |
| Dimensions: Height | 380 mm (14.96 in) CE, KC, cULus (UL 61800-5-1, CSA 22.2 |
Certificates 3
| Certificate of suitability | 1) in conjunction with the recommended Class J fuse, or circuit breaker according to UL489 / CSA No. 274), EAC, UKCA, RCM |
|---|---|
| 22.2 No. 5-02 | 3) Power loss of the Smart Line Module with rated power including losses of the 24 V DC |
| electronics power supply | 4) Power units with intensified air cooling thanks to integrated fan |
Logistics 6
| Net weight | 8.2 kg |
|---|---|
| Country of origin | DE |
| Shipping weight | 9.2 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6SL5130-6UE22-4AC0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5130-6UE22-4AC0
What is the rated current of 6SL5130-6UE22-4AC0?
The rated current of 6SL5130-6UE22-4AC0 is 43 A.
Which supply voltage is 6SL5130-6UE22-4AC0 rated for?
The rated operational voltage of 6SL5130-6UE22-4AC0 is 380–480 V AC.
What motor power is 6SL5130-6UE22-4AC0 rated for?
The rated motor power of 6SL5130-6UE22-4AC0 is 24 kW.
What is the HS code of 6SL5130-6UE22-4AC0 for customs?
The tariff (HS) code on file for 6SL5130-6UE22-4AC0 is 85044087.
What is the EAN of 6SL5130-6UE22-4AC0?
The EAN (GTIN) of 6SL5130-6UE22-4AC0 is 4034106441098.
Where does 6SL5130-6UE22-4AC0 ship from, and how fast?
6SL5130-6UE22-4AC0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
