- Part number
- 6SL3130-7TE31-2AA3

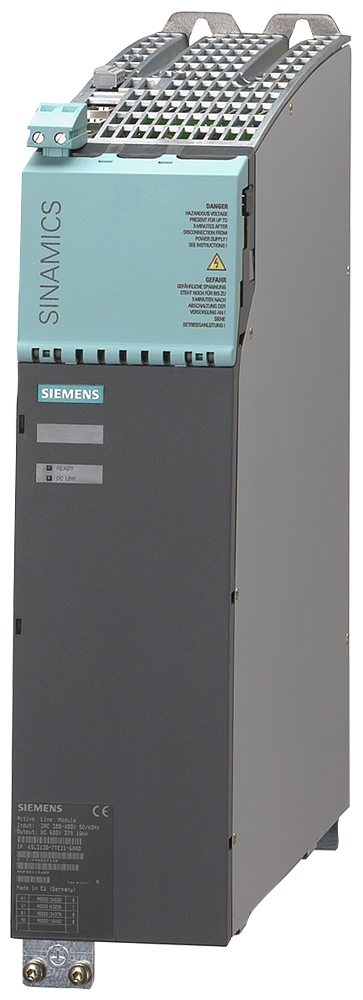

SINAMICS S120Siemens 6SL3130-7TE31-2AA3 SINAMICS S120 Active Line Module 200A 120kW Drive Module
Siemens SINAMICS S120 Active Line Module, 3AC 380-480V input, DC 600V/200A/120kW output, booksize frame.
Description
About the 6SL3130-7TE31-2AA3
About the 6SL3130-7TE31-2AA3
The Siemens 6SL3130-7TE31-2AA3 is a SINAMICS S120 Active Line Module rectifying a 3 AC 342-528 V line to a DC 600 V link, rated 120 kW (200 A output) with a 292 A / 175 kW short-term maximum, built in the booksize frame with a 65 kA short-circuit strength rating. It works with an Active Interface Module to draw a near-sinusoidal line current and to feed regenerative energy back to the supply.
Selection Notes
Paired with a matching Active Interface Module, this Active Line Module draws sinusoidal line current and feeds regenerative braking energy back to the supply — choose it over a Smart Line Module when the installation must meet strict line-harmonic limits or when the process needs continuous four-quadrant operation rather than occasional regenerative braking. At 120 kW rated / 175 kW short-term with a 292 A maximum, it covers combined motor-module loads beyond the smaller Line Module frame sizes in the same booksize range.
Specification
Full specification
Electrical data 11
| Input: Number of phases | 3 AC |
|---|---|
| Input: Line voltage | 342 ... 528 V |
| Input: Line frequency | 47 ... 63 Hz |
| Input: Short-circuit strength 1) | 65 kA |
| Fundamental power factor cos phi | 1 2) |
| Total | 1.00 1.00 0.96 |
| Overvoltage category | Class III |
| DC link voltage 3): at 380 V ... 400 V AC, factory setting | 600 V |
| DC link voltage 3): at 400 V ... 415 V AC, factory setting | 625 V |
| DC link voltage 3): DC-link voltage | 1.35 x line voltage (Smart Mode) |
| Electronics power supply with DC | 24 V (-15 % / 20 %) |
Connections 5
| Line side: Design | M8 bolt (X1) |
|---|---|
| Line side: Conductor cross-section | 2.50 ... 120.00 mm² (AWG 14 ... AWG - 3) |
| PE conductor | M8 Screw |
| Line length, max.: Shielded | 1,000 m (3,280.84 ft) |
| Line length, max.: Unshielded | 1,500 m (4,921.26 ft) |
Mechanical data 5
| Degree of protection | IP20 / UL open type |
|---|---|
| Type of construction | Booksize |
| Dimensions: Width | 300 mm (11.81 in) |
| Dimensions: Height | 629 mm (24.76 in) |
| Dimensions: Depth | 270 mm (10.63 in) |
Show all 59 specifications ↓ Show less ↑38 more values in Identification, Rated data, General technical specifications, Ambient conditions, Standards, Logistics.
Identification 6
| Part number | 6SL3130-7TE31-2AA3 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4025515005476 |
Rated data 18
| Infeed power: Rated value | 120 kW (150 hp) |
|---|---|
| Infeed power: for S6 duty | 145 kW |
| Infeed power: Maximum | 175 kW |
| Regenerative feedback power: Rated value | 120 kW (150 hp) |
| Regenerative feedback power: for S6 duty | 145 kW |
| Regenerative feedback power: Maximum | 175 kW |
| DC-link current: at 600 V DC | 200 A |
| DC-link current: for S6 duty | 244 A |
| DC-link current: Maximum | 292 A |
| Input current: at 380 V AC 3-phase | 192 A |
| Input current: at 400 V AC 3-phase | 182 A |
| Input current: at 480 V AC 3-phase | 152 A |
| Input current: at 400 V S6 duty | 220 A |
| Input current: at 400 V, maximum | 267 A 2.5 A |
| for electronics power supply at | 24 V DC |
| for DC-link connection | 20 A 200 A |
| DC link capacitance: of the Active Line Module | 3,995 µF |
| DC link capacitance: of the drive system, maximum | 20,000 µF |
General technical specifications 2
| Sound pressure level | 73 dB |
|---|---|
| Losses 10) | 2.24 kW |
Ambient conditions 5
| Ambient temperature in operation | 0 ... 40 °C (32 ... 104 °F) |
|---|---|
| Cooling air throughput | 0.144 m³/s (5.085 ft³/s) |
| Installation altitude | 1,000 m (3,280.84 ft) |
| Type of cooling 11) | Internal air cooling |
| RI suppression | Active Line Module + Active Interface Module: Category C3 according to EN 61800-3 up to 350 m (1148 ft) total cable length. With line filter: Category C2 according to EN 61800-3 up to 350 |
Standards 2
| Compliance with standards | CE, cULus |
|---|---|
| Page 1 of 2 | Generated Sun Nov 1 04:07:33 CET 2026 |
Logistics 5
| Net weight | 23 kg |
|---|---|
| Shipping weight | 25.0 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 01 Nov 2026
Documents
Documents for 6SL3130-7TE31-2AA3
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL3130-7TE31-2AA3
What is the rated current of 6SL3130-7TE31-2AA3?
The rated current of 6SL3130-7TE31-2AA3 is 200 A.
Which supply voltage is 6SL3130-7TE31-2AA3 rated for?
The rated operational voltage of 6SL3130-7TE31-2AA3 is 380–480 V AC.
What motor power is 6SL3130-7TE31-2AA3 rated for?
The rated motor power of 6SL3130-7TE31-2AA3 is 120 kW.
What is the HS code of 6SL3130-7TE31-2AA3 for customs?
The tariff (HS) code on file for 6SL3130-7TE31-2AA3 is 85044083.
What is the EAN of 6SL3130-7TE31-2AA3?
The EAN (GTIN) of 6SL3130-7TE31-2AA3 is 4025515005476.
Where does 6SL3130-7TE31-2AA3 ship from, and how fast?
6SL3130-7TE31-2AA3 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
