- Part number
- 6SL5510-1BE17-0AA0

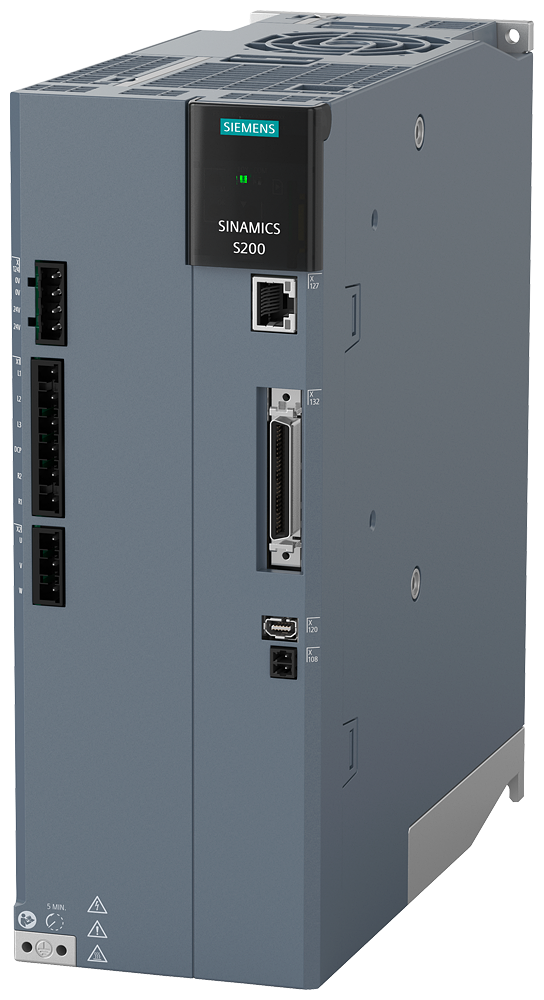

SINAMICS S200Siemens 6SL5510-1BE17-0AA0 SINAMICS S200 PTI 380-480V 3AC 7.0kW Servo Drive
SINAMICS S200 PTI servo drive, 7.0kW, 380-480V 3AC input, 13.2A rated / 37.4A max output, IP20 FSD.
Description
About the 6SL5510-1BE17-0AA0
About the 6SL5510-1BE17-0AA0
The Siemens 6SL5510-1BE17-0AA0 is a SINAMICS S200 PTI servo drive for a 7.0 kW motor, taking 3AC 380-480 V input at 45-66 Hz with pulse-train step/direction control. It delivers up to 37.4 A max output current at 0-550 Hz output frequency, in an IP20 / UL open frame FSD housing (95 x 260 x 230 mm) weighing 4.52 kg.
Selection Notes
The pulse-train input (PTI) variant takes step/direction commands directly, useful when the upstream controller has no fieldbus motion interface. At 7.0 kW rated power and 37.4 A max output current, this frame FSD unit is the largest S200 PTI model in this range - the 14.0 A rated input current and 95 x 260 x 230 mm housing are significantly larger than the small-frame variants, so confirm panel space and branch-circuit rating before substituting it for a smaller frame. It runs on 3AC 380-480 V only, matching a standard 400 V industrial supply.
Applications
Suited to higher-power single-axis motion on a 400 V 3-phase supply - main spindle or feed axes, large pick-and-place gantries, and winder drives - where step/direction control is preferred over a fieldbus motion interface.
Specification
Full specification
| Part number | 6SL5510-1BE17-0AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4034106445881 |
| Rated current | 13.2 A |
|---|---|
| Rated operational voltage | 380–480 V AC |
| Motor power | 7.00 kW |
| Communication | Pulse train (step/direction) |
| Protection type | IP20 |
| Shipping weight | 5.02 kg |
|---|
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SINAMICS S200 |
|---|---|
| Country of origin | CN |
| Input phases | 3 AC |
| Line voltage | 380 ... 480 V +10% |
| Line frequency | 45 ... 66 Hz |
| Rated input current (3-phase) | 14.0 A |
| Inrush current | 3.0 A |
| Max. output current | 37.4 A |
| Pulse frequency | 8 kHz |
| Output frequency | 0 ... 550 Hz |
| Electronics power supply | 20.4 ... 28.8 V DC |
| Max. current demand (24V) | 0.7 A |
| Installation altitude | 1,000 m |
| Operating temperature | 0 ... 55 C (45 C max without derating) |
| Transport temperature | -40 ... 70 C |
| Storage temperature | -40 ... 70 C |
| Max. operating humidity | 95% |
| Degree of protection | IP20 / UL open |
| Frame size | FSD |
| Dimensions (W x H x D) | 95 x 260 x 230 mm |
| Net weight | 4.52 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL5510-1BE17-0AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5510-1BE17-0AA0
What is the rated current of 6SL5510-1BE17-0AA0?
The rated current of 6SL5510-1BE17-0AA0 is 13.2 A.
Which supply voltage is 6SL5510-1BE17-0AA0 rated for?
The rated operational voltage of 6SL5510-1BE17-0AA0 is 380–480 V AC.
What motor power is 6SL5510-1BE17-0AA0 rated for?
The rated motor power of 6SL5510-1BE17-0AA0 is 7.00 kW.
What is the HS code of 6SL5510-1BE17-0AA0 for customs?
The tariff (HS) code on file for 6SL5510-1BE17-0AA0 is 85044095.
What is the EAN of 6SL5510-1BE17-0AA0?
The EAN (GTIN) of 6SL5510-1BE17-0AA0 is 4034106445881.
Where does 6SL5510-1BE17-0AA0 ship from, and how fast?
6SL5510-1BE17-0AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
