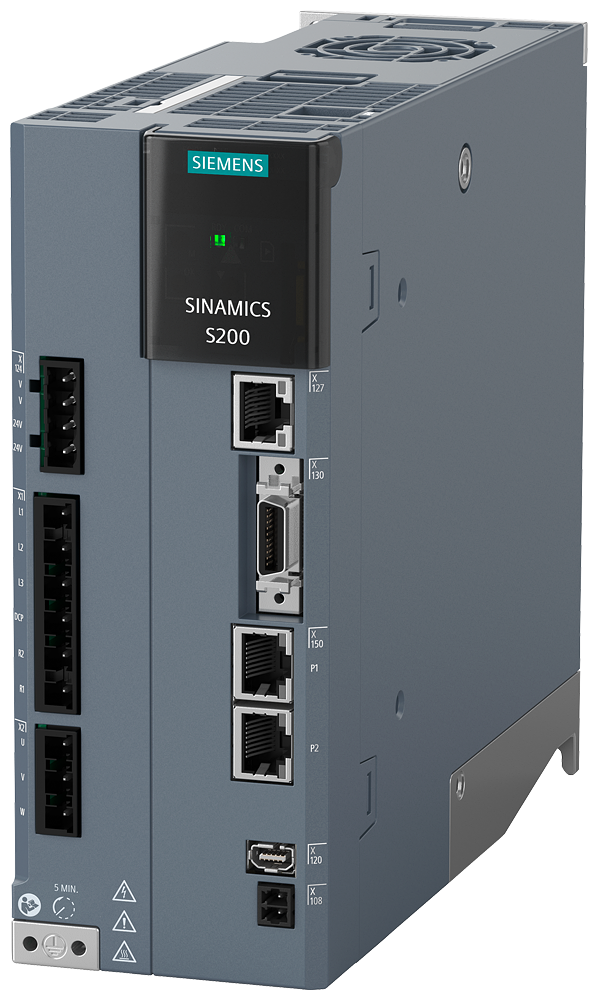

Siemens 6SL5510-1BE11-5AA0 SINAMICS S200 PTI 3AC 400V 1.75kW Servo Drive

The Siemens SINAMICS S200 6SL5510-1BE11-5AA0 is a pulse-train-input (PTI) servo drive rated for 3 AC 380-480 V supply and 1.75 kW motor power, delivering 5.3 A rated output current up to 550 Hz. It accepts step/direction pulse commands directly, removing the need for a separate motion controller in point-to-point positioning applications. The FSC frame (90 x 180 x 200 mm) housing carries an IP20 / UL open rating.

Technical Specifications

Selection Notes

This PTI (pulse-train input) variant of SINAMICS S200 accepts pulse/direction command signals directly from a motion controller or PLC pulse output, which suits retrofit or simple point-to-point axes that do not need a fieldbus motion protocol. At 1.75 kW rated power and 5.3 A output, this unit fits light-to-medium servo axes; higher-power S200 variants in the same frame cover higher-inertia or higher-torque loads. The FSC frame IP20 / UL open enclosure is intended for installation inside a control cabinet, not direct field mounting.

Applications

Typical uses include point-to-point positioning axes such as pick-and-place stages, indexing tables, and simple conveyor positioning where the host controller issues pulse/direction commands rather than a fieldbus motion profile. The 1.75 kW / 5.3 A rating covers small to mid-size servo motors on machine tools, packaging equipment, and material-handling stations.
