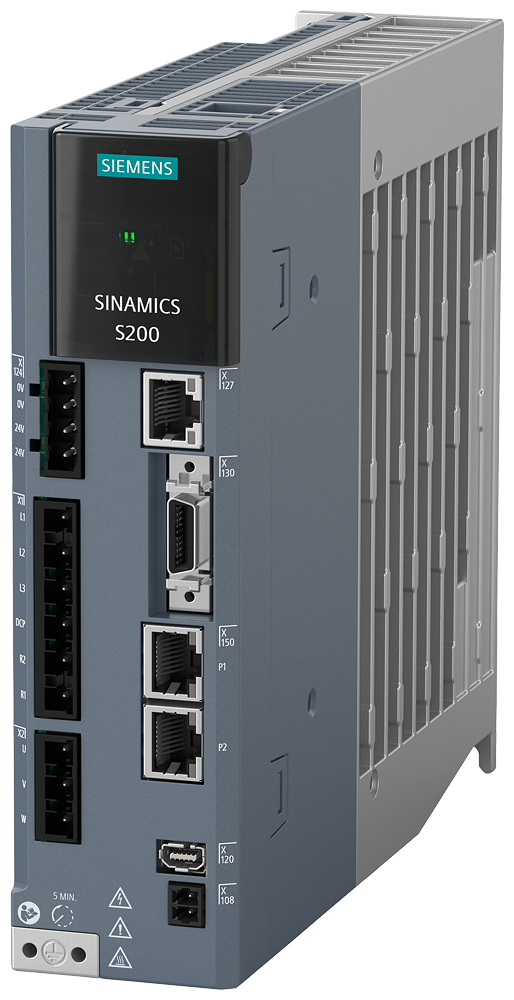

Siemens 6SL5510-1BE10-2AF0 SINAMICS S200 PN 400V 0.2kW IP20 Servo Drive

The Siemens SINAMICS S200 PN servo drive 6SL5510-1BE10-2AF0 is a single-axis PROFINET drive rated for a 0.2 kW servo motor, with 3AC 380-480V input, 1.3A rated input current, and a 5.1A maximum output current. Housed in frame size FSA at IP20 / UL open type protection, it supports output frequencies up to 550 Hz and integrates directly into a PROFINET motion network.

Technical Specifications

Selection Notes

At 0.2 kW rated power and a 5.1A output ceiling, this is the entry-power frame FSA variant of the S200 line; move up to a higher-current FSA or FSB frame variant when the servo motor's rated current exceeds this module's 1.3A input / 5.1A output rating. The integrated PROFINET interface lets the drive join a motion-control network directly, without a separate communication module, which simplifies commissioning on machines already standardized on PROFINET for the rest of the line.

Applications

Fits single-axis positioning tasks on small servo motors at the low end of the power range: pick-and-place stations, small indexing tables, and machine modules where PROFINET is the plant's chosen fieldbus.
