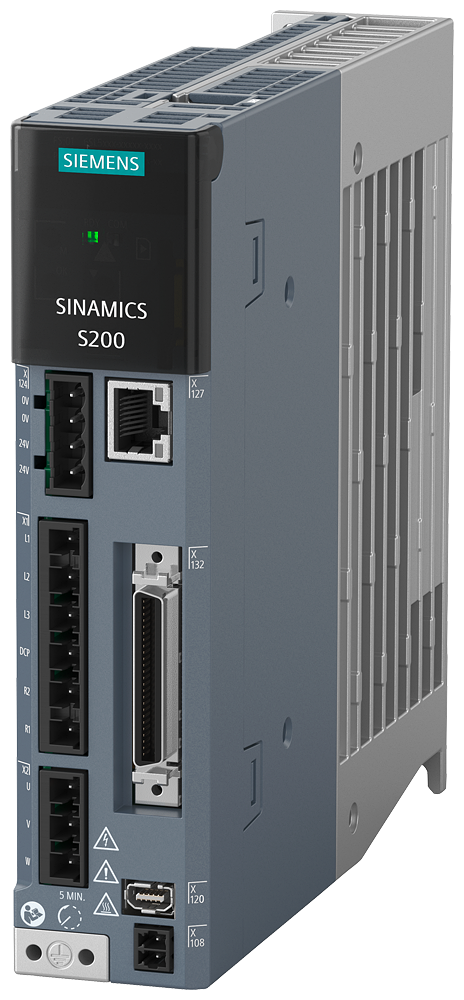

Siemens 6SL5510-1BB10-4AA0 SINAMICS S200 PTI 200V 0.4kW Servo Drive

The Siemens 6SL5510-1BB10-4AA0 is a SINAMICS S200 servo drive with pulse-train input, rated for 1/3 AC 200-240 V supply and a 0.40 kW motor output at 2.4 A rated current, with a maximum output current of 9.2 A and IP20 protection in the FSB frame size. It switches at an 8 kHz pulse frequency and covers an output frequency range of 0 to 550 Hz.

Technical Specifications

Selection Notes

The 4AA0 variant sits at 0.40 kW / 2.4 A in the SINAMICS S200 PTI lineup, four times the rated power of the smallest PN model in this series, and uses pulse-train/direction input instead of PROFINET, so it suits machines controlled by a stepper-style pulse output from the host controller rather than an industrial Ethernet PLC. Its FSB frame is one size up from the smallest S200 frame, giving more heatsink area for the higher continuous current. Choose this over the lower-power S200 variants when the driven axis needs sustained torque above roughly 0.1-0.2 kW.

Applications

Used for single-axis motion on machines with pulse/direction motion controllers, such as indexing tables, small pick-and-place arms, and labeling or wrapping equipment, where a PROFINET network isn't part of the control architecture.
