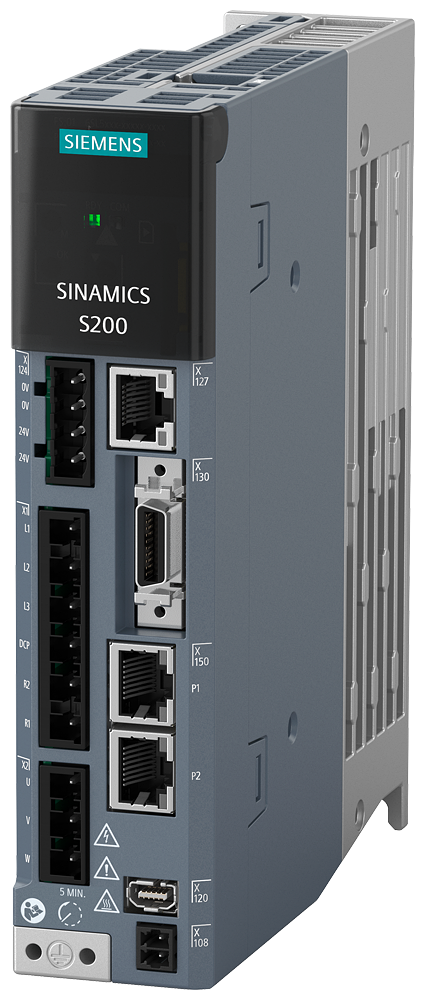

SINAMICS S200Siemens 6SL5510-1BB10-1AF0 SINAMICS S200 PN 200V 0.1kW Servo Drive
SINAMICS S200 PN servo drive, 200-240V, 0.10kW, 0.8A, IP20 FSA frame.
Description
About the 6SL5510-1BB10-1AF0
About the 6SL5510-1BB10-1AF0
The Siemens 6SL5510-1BB10-1AF0 is a SINAMICS S200 servo drive with PROFINET, rated for 1/3 AC 200-240 V supply and a 0.10 kW motor output at 0.8 A rated current, with a maximum output current of 3.3 A and IP20 protection in the FSA frame size. It switches at an 8 kHz pulse frequency and covers an output frequency range of 0 to 550 Hz.
Selection Notes
The 1AF0 variant is the 0.1 kW / 0.8 A entry point in the SINAMICS S200 PN lineup, sized for small single-axis motion tasks such as small conveyors or pick-and-place actuators where the 3.3 A maximum output current is enough headroom for the driven load. Its FSA frame is the smallest S200 footprint, so it suits panels with tight motor-drive spacing. For loads above roughly 0.1 kW, the higher-power S200 PN variants in the same family carry more rated and maximum output current.
Applications
Fits single-axis servo positioning in packaging, pick-and-place, and small conveyor stations where the machine control communicates over PROFINET and the driven motor stays within the 0.8 A / 0.10 kW rating.
Specification
Full specification
| Part number | 6SL5510-1BB10-1AF0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4034106445515 |
| Rated current | 0.8 A |
|---|---|
| Rated operational voltage | 200–240 V AC |
| Motor power | 0.10 kW |
| Communication | PROFINET |
| Protection type | IP20 |
| Shipping weight | 1.26 kg |
|---|
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
| Series | SINAMICS S200 |
|---|---|
| Number of Phases, Input | 1/3 AC |
| Line Voltage | 200 ... 240 V, +10% |
| Line Frequency | 45 ... 66 Hz |
| Rated Current, 1 Phase | 1.2 A |
| Rated Current, 3 Phases | 1.0 A |
| Inrush Current | 10.5 A |
| Number of Phases, Output | 3 AC |
| Max. Output Current | 3.3 A |
| Pulse Frequency | 8 kHz |
| Output Frequency | 0 ... 550 Hz |
| Control Voltage | 20.4 ... 28.8 V |
| Current Demand, max. | 0.7 A |
| Installation Altitude | 1,000 m (3,281 ft) |
| Operating Temperature | 0 ... 55 °C (32 ... 131 °F) |
| Max. Temp. without Power Reduction | 45 °C |
| Transport Temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage Temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Max. Operating Humidity | 95 % |
| Digital I/O Count | 4 / 2 |
| Net Weight | 0.76 kg |
| Country of Origin | CN |
| Frame Size | FSA, 40 x 170 x 135 mm (WxHxD) |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL5510-1BB10-1AF0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5510-1BB10-1AF0
What is the rated current of 6SL5510-1BB10-1AF0?
The rated current of 6SL5510-1BB10-1AF0 is 0.8 A.
Which supply voltage is 6SL5510-1BB10-1AF0 rated for?
The rated operational voltage of 6SL5510-1BB10-1AF0 is 200–240 V AC.
What motor power is 6SL5510-1BB10-1AF0 rated for?
The rated motor power of 6SL5510-1BB10-1AF0 is 0.10 kW.
What is the HS code of 6SL5510-1BB10-1AF0 for customs?
The tariff (HS) code on file for 6SL5510-1BB10-1AF0 is 85044095.
What is the EAN of 6SL5510-1BB10-1AF0?
The EAN (GTIN) of 6SL5510-1BB10-1AF0 is 4034106445515.
Where does 6SL5510-1BB10-1AF0 ship from, and how fast?
6SL5510-1BB10-1AF0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
