- Part number
- 6SL5510-1BB10-1AA0

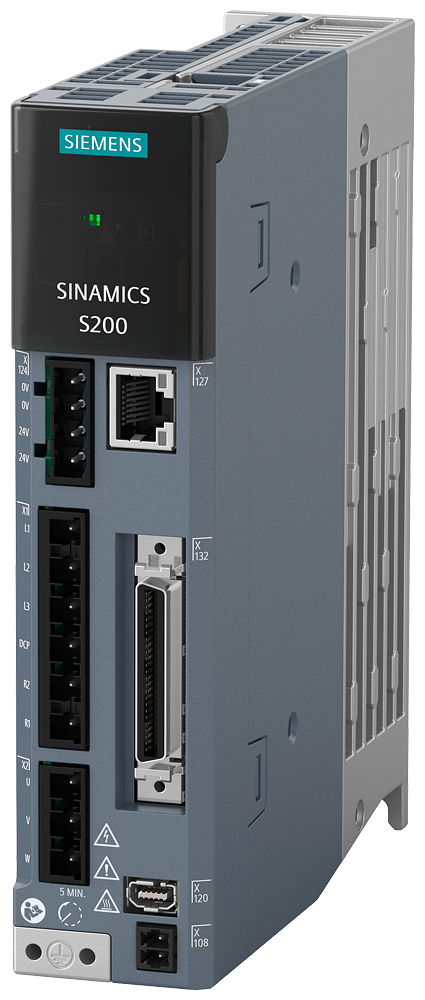

SINAMICS S200Siemens 6SL5510-1BB10-1AA0 SINAMICS S200 PTI 200-240V 1/3AC 0.1kW Servo Drive
SINAMICS S200 PTI servo drive, 0.1kW, 200-240V 1/3AC input, 0.8A rated / 3.3A max output, IP20 FSA.
Description
About the 6SL5510-1BB10-1AA0
About the 6SL5510-1BB10-1AA0
The Siemens 6SL5510-1BB10-1AA0 is a SINAMICS S200 PTI servo drive for a 0.1 kW motor, taking 1/3 AC 200-240 V input at 45-66 Hz with pulse-train step/direction control. It delivers up to 3.3 A max output current at 0-550 Hz output frequency, in an IP20 frame FSA housing (40 x 170 x 135 mm) weighing 0.76 kg.
Selection Notes
The pulse-train input (PTI) variant takes step/direction commands directly, useful when the upstream controller has no fieldbus motion interface. At 0.10 kW rated power and 3.3 A max output current, this is the smallest frame (FSA) in the S200 PTI range - move to a larger frame if the connected motor draws more than 3.3 A. Dual-rated for 1/3 AC 200-240 V input (1.2 A single-phase vs 1.0 A three-phase), it can run from either supply; size the branch circuit to the single-phase figure.
Applications
Fits small single-axis positioning tasks driven by step/direction commands - pick-and-place heads, small indexing tables, and retrofits of stepper-motor axes to a servo-grade SINAMICS S200 drive.
Specification
Full specification
| Part number | 6SL5510-1BB10-1AA0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4034106445706 |
| Rated current | 0.8 A |
|---|---|
| Rated operational voltage | 200–240 V AC |
| Motor power | 0.10 kW |
| Communication | Pulse train (step/direction) |
| Protection type | IP20 |
| Shipping weight | 1.26 kg |
|---|
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SINAMICS S200 |
|---|---|
| Country of origin | CN |
| Input phases | 1/3 AC |
| Line voltage | 200 ... 240 V +10% |
| Line frequency | 45 ... 66 Hz |
| Rated input current (1-phase) | 1.2 A |
| Rated input current (3-phase) | 1.0 A |
| Inrush current | 10.5 A |
| Max. output current | 3.3 A |
| Pulse frequency | 8 kHz |
| Output frequency | 0 ... 550 Hz |
| Electronics power supply | 20.4 ... 28.8 V DC |
| Max. current demand (24V) | 0.7 A |
| Installation altitude | 1,000 m |
| Operating temperature | 0 ... 55 C (45 C max without derating) |
| Transport temperature | -40 ... 70 C |
| Storage temperature | -40 ... 70 C |
| Max. operating humidity | 95% |
| Frame size | FSA |
| Dimensions (W x H x D) | 40 x 170 x 135 mm |
| Net weight | 0.76 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL5510-1BB10-1AA0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5510-1BB10-1AA0
What is the rated current of 6SL5510-1BB10-1AA0?
The rated current of 6SL5510-1BB10-1AA0 is 0.8 A.
Which supply voltage is 6SL5510-1BB10-1AA0 rated for?
The rated operational voltage of 6SL5510-1BB10-1AA0 is 200–240 V AC.
What motor power is 6SL5510-1BB10-1AA0 rated for?
The rated motor power of 6SL5510-1BB10-1AA0 is 0.10 kW.
What is the HS code of 6SL5510-1BB10-1AA0 for customs?
The tariff (HS) code on file for 6SL5510-1BB10-1AA0 is 85044095.
What is the EAN of 6SL5510-1BB10-1AA0?
The EAN (GTIN) of 6SL5510-1BB10-1AA0 is 4034106445706.
Where does 6SL5510-1BB10-1AA0 ship from, and how fast?
6SL5510-1BB10-1AA0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
