- Part number
- 6SL5310-1BB10-4CF0

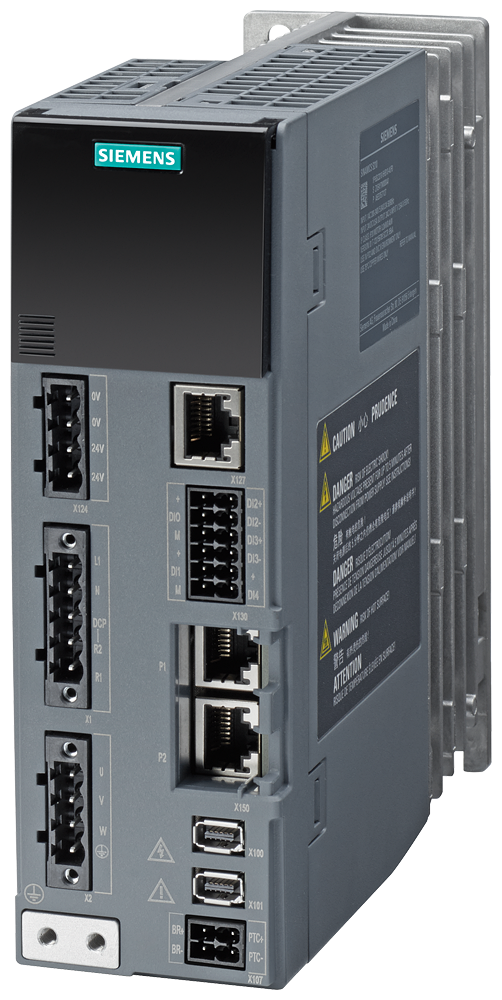

SINAMICS S210Siemens 6SL5310-1BB10-4CF0 SINAMICS S210 1AC 200-240V 0.4kW Servo Drive
SINAMICS S210 servo drive, 0.4kW, 200-240V 1AC input, 2.4A rated / 8.7A max output, IP20 frame B.
Description
About the 6SL5310-1BB10-4CF0
About the 6SL5310-1BB10-4CF0
The Siemens 6SL5310-1BB10-4CF0 is a SINAMICS S210 servo drive for a 0.4 kW motor, taking 1AC 200-240 V input at 45-66 Hz and rated for 5.0 A input current. It delivers up to 8.7 A max output current at 0-550 Hz output frequency, in an IP20 frame B housing (55 x 170 x 170 mm) weighing 1.3 kg.
Selection Notes
At 0.40 kW and 8.7 A max output current, this frame B model sits above the 0.2 kW frame A unit and below the 0.75 kW frame C unit in the single-phase S210 line - pick it when the connected servo motor's current draw exceeds frame A's 4.8 A ceiling but stays under frame C's rating. The 5.0 A rated input current at 200-240 V 1AC still runs from a standard single-phase supply, avoiding a 3-phase feed for this power class.
Applications
Fits single-axis motion tasks in the 0.3-0.5 kW range - conveyor drives, small indexing tables, and packaging-line actuators - where single-phase supply is available but a stepper motor lacks the required torque or positioning accuracy.
Specification
Full specification
| Part number | 6SL5310-1BB10-4CF0 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4034106441326 |
| Rated current | 2.4 A |
|---|---|
| Rated operational voltage | 200–240 V AC |
| Motor power | 0.40 kW |
| Protection type | IP20 |
| Shipping weight | 1.8 kg |
|---|
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
| Series | SINAMICS S210 |
|---|---|
| Country of origin | CN |
| Input phases | 1 AC |
| Line voltage | 200 ... 240 V ±10% |
| Line frequency | 45 ... 66 Hz |
| Rated input current | 5.0 A |
| Inrush current | 8.0 A |
| Output phases (motor) | 3 AC |
| Max. output current | 8.7 A |
| Pulse frequency | 8 kHz |
| Output frequency for servo control | 0 ... 550 Hz |
| Electronics power supply | 24 V DC (-15% ... +20%) |
| Max. current demand (24V) | 0.8 A |
| Installation altitude | 1,000 m |
| Operating temperature | -10 ... 50 C |
| Climatic class, operation | Better than 3K3 (per EN) |
| Transport temperature | -40 ... 70 C (class 2K4, EN 60721-3-2) |
| Storage temperature | -25 ... 55 C (class 1K4, EN 60721-3-1) |
| Max. operating humidity | 95% |
| Max. transport humidity | 95% |
| Frame size | B |
| Dimensions (W x H x D) | 55 x 170 x 170 mm |
| Net weight | 1.3 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL5310-1BB10-4CF0
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL5310-1BB10-4CF0
What is the rated current of 6SL5310-1BB10-4CF0?
The rated current of 6SL5310-1BB10-4CF0 is 2.4 A.
Which supply voltage is 6SL5310-1BB10-4CF0 rated for?
The rated operational voltage of 6SL5310-1BB10-4CF0 is 200–240 V AC.
What motor power is 6SL5310-1BB10-4CF0 rated for?
The rated motor power of 6SL5310-1BB10-4CF0 is 0.40 kW.
What is the HS code of 6SL5310-1BB10-4CF0 for customs?
The tariff (HS) code on file for 6SL5310-1BB10-4CF0 is 85044095.
What is the EAN of 6SL5310-1BB10-4CF0?
The EAN (GTIN) of 6SL5310-1BB10-4CF0 is 4034106441326.
Where does 6SL5310-1BB10-4CF0 ship from, and how fast?
6SL5310-1BB10-4CF0 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
