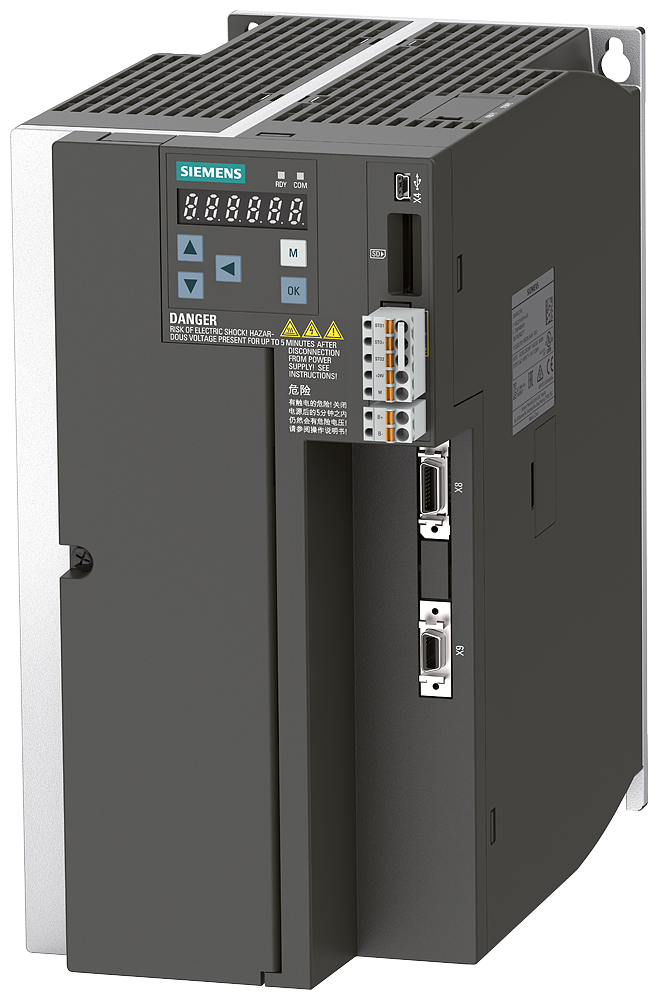

Siemens 6SL3210-5FE13-5UF0 SINAMICS V90 PROFINET 400V 3.5kW Servo Drive

The Siemens SINAMICS V90 (6SL3210-5FE13-5UF0) is a PROFINET servo drive rated 380-480 V 3-phase input (13.8 A, 45-66 Hz) with a 3.5 kW output stage delivering 0-330 Hz to the matched servo motor. It ships in an IP20 size C enclosure (140 x 260 x 240 mm) for panel mounting, with PROFINET providing cyclic motion data exchange to the controlling PLC.

Technical Specifications

Selection Notes

This 3.5 kW, size C unit sits mid-range in the V90 power line; check the driven axis's continuous torque and reflected inertia against the 13.8 A input current rating before stepping up or down a frame size. The PROFINET variant (this order number) exchanges cyclic setpoint and actual-value telegrams directly over the machine's PROFINET network, so no separate pulse-train or analog wiring is needed between controller and drive.

Applications

Servo positioning axes in packaging, winding, and pick-and-place cells where the 3.5 kW / 0-330 Hz output covers mid-size motor loads. The IP20 size C footprint (140 x 260 x 240 mm) fits standard panel layouts, and PROFINET networking lets multiple V90 axes share the same machine controller bus as the rest of the automation system.
