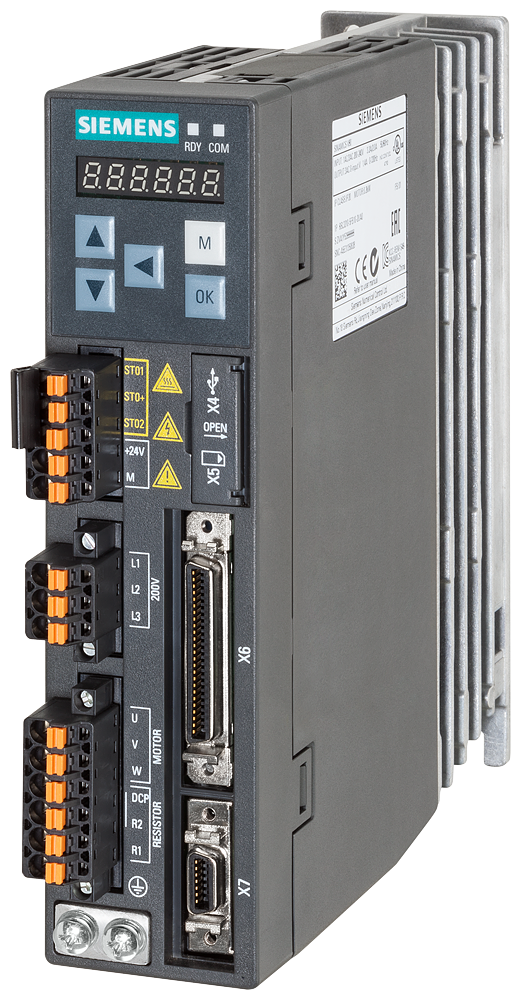

SINAMICS V90Siemens 6SL3210-5FB10-2UA2 SINAMICS V90 200-240V 0.2kW Servo Drive
SINAMICS V90 servo drive, 200-240V 1/3AC, 0.2kW, 1.4A, IP20 Size A.
Description
About the 6SL3210-5FB10-2UA2
About the 6SL3210-5FB10-2UA2
The Siemens SINAMICS V90 6SL3210-5FB10-2UA2 is a Size A servo drive built for a 1/3-phase 200-240 V AC supply and a 0.2 kW servo motor, delivering 1.4 A rated output current across a 0-330 Hz output frequency range. It runs a matching SIMOTICS S-1FL6 servo motor for compact single-axis positioning in an IP20, 45 x 170 x 170 mm housing.
Selection Notes
This is the smallest frame in the SINAMICS V90 range covered here, sized for a 0.2 kW motor rather than the multi-kilowatt variants in the same series. The dual-rated 1/3-phase 200-240 V input lets it run from a single-phase supply where a three-phase feed isn't available at the machine, a flexibility the 380-480 V-only variants in the range don't have. Choose this frame for light single-axis positioning axes rather than main-spindle or heavy-load work, which needs the higher-current variants.
Applications
Suited to single-axis point-to-point positioning on packaging and small material-handling machines, label applicators, and similar equipment where the servo motor draws up to 0.2 kW and the panel can supply single- or three-phase 200-240 V.
Specification
Full specification
| Part number | 6SL3210-5FB10-2UA2 |
|---|---|
| Brand | Siemens |
| Condition | New, factory sealed |
| Source | Siemens and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4042948692202 |
| Rated current | 1.4 A |
|---|---|
| Rated operational voltage | 200–240 V AC |
| Motor power | 0.2 kW |
| Protection type | IP20 |
| Shipping weight | 1.6 kg |
|---|
| HS code | 85044095 |
|---|---|
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Critical stock |
| Series | SINAMICS V90 |
|---|---|
| Country of Origin | CN |
| Input Voltage | 200-240 V, 1/3 AC, -15%/+10% |
| Rated Input Current | 3.0 A (1-phase) / 1.8 A (3-phase) |
| Line Frequency | 45-66 Hz |
| Output Frequency | 0-330 Hz |
| Frame Size | A |
| Dimensions (W x H x D) | 45 x 170 x 170 mm |
| Net Weight | 1.1 kg |
From the manufacturer description; the values above take precedence.
Documents
Documents for 6SL3210-5FB10-2UA2
No documents are on file for this part yet.
Ask us for the datasheet
Quick answers
Questions about the 6SL3210-5FB10-2UA2
What is the rated current of 6SL3210-5FB10-2UA2?
The rated current of 6SL3210-5FB10-2UA2 is 1.4 A.
Which supply voltage is 6SL3210-5FB10-2UA2 rated for?
The rated operational voltage of 6SL3210-5FB10-2UA2 is 200–240 V AC.
What motor power is 6SL3210-5FB10-2UA2 rated for?
The rated motor power of 6SL3210-5FB10-2UA2 is 0.2 kW.
What is the HS code of 6SL3210-5FB10-2UA2 for customs?
The tariff (HS) code on file for 6SL3210-5FB10-2UA2 is 85044095.
What is the EAN of 6SL3210-5FB10-2UA2?
The EAN (GTIN) of 6SL3210-5FB10-2UA2 is 4042948692202.
Where does 6SL3210-5FB10-2UA2 ship from, and how fast?
6SL3210-5FB10-2UA2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
