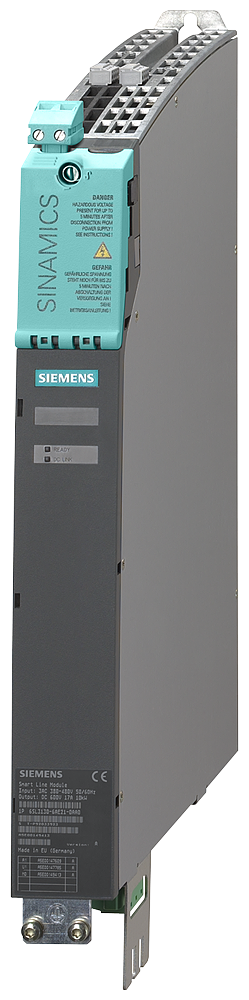

Siemens 6SL3130-6AE21-0AB1 SINAMICS S120 Smart Line Module 10kW Drive Module

The Siemens 6SL3130-6AE21-0AB1 is a SINAMICS S120 Smart Line Module rated 10 kW, converting a 3 AC 380-480 V line supply into a regulated 600 VDC link at up to 17 A for the S120 modular drive system. Built in Bookize format with internal air cooling, it operates from 342-528 V at 47-63 Hz and provides 65 kA short-circuit strength, with the DC-link voltage tracking 1.35 times the line voltage.

Technical Specifications

Selection Notes

At 10 kW rated power (20 kW for short-term overload) and 17 A DC output (33.2 A peak), the 6SL3130-6AE21-0AB1 sizes the DC link for a single-axis or small multi-axis SINAMICS S120 Bookize group; the 65 kA short-circuit strength rating covers protection coordination with upstream fusing. The 24 V DC electronics supply is separate from the line input, so control power stays available during a line-side fault. Choose a higher-rated Smart Line Module in the same Bookize series when the connected Motor Modules' combined DC-link current demand exceeds the 17 A continuous rating.

Applications

Used as the line infeed for SINAMICS S120 Bookize drive line-ups in multi-axis machinery - packaging machines, printing presses, and machine tools - where several Motor Modules share a common 600 VDC bus fed from a single 3 AC 380-480 V supply.
