Siemens 6SL3120-1TE23-0AD0 SINAMICS S120 Single Motor Module 30A 16.0kW D-Type Drive Module

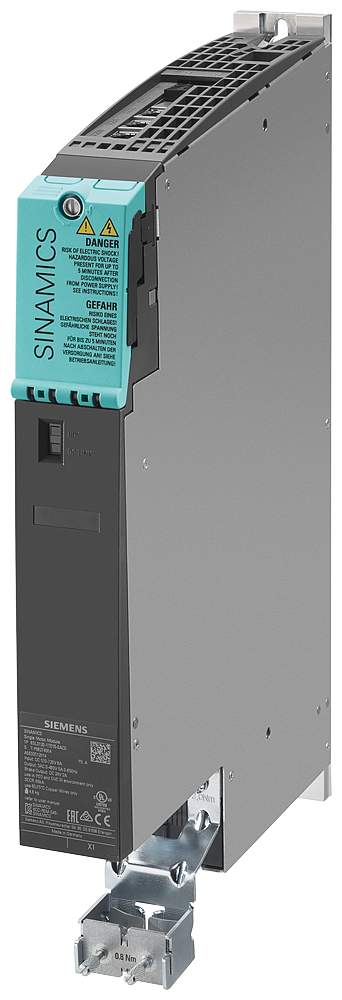

The Siemens SINAMICS S120 Single Motor Module (6SL3120-1TE23-0AD0) is a D-type booksize power module that converts a 510...720 V DC link into a 400 V 3 AC output rated for 30.0 A (IH 25.5 A, Imax 90.0 A), delivering 16.0 kW based on rated current. It includes a DRIVE-CLiQ cable and supports the extended Safety Integrated functions at a 4.00 kHz pulse frequency.

Technical Specifications

Selection Notes

At 30.0 A rated / 90.0 A peak and 16.0 kW (IN), this is the highest-current module in this D-type range - its 200 A DC-link busbar rating and 705 µF capacitance are sized for the larger current swing, roughly double the busbar rating used on the lower-current versions in the same series. It also draws more cooling air (0.015 m³/s) and weighs more (7.9 kg), so verify cabinet airflow and mounting depth before substituting it into a panel built for a lower-current module.

Applications

Drives a single servo or induction motor axis from a SINAMICS S120 DC link in machine tools, packaging, and material-handling equipment, using the extended Safety Integrated functions built into this module for integrated safe torque off and safe motion.
