Siemens 6SL3100-0BE23-6AB0 SINAMICS S120 Active Interface Module 36kW 380-480V Drive Module

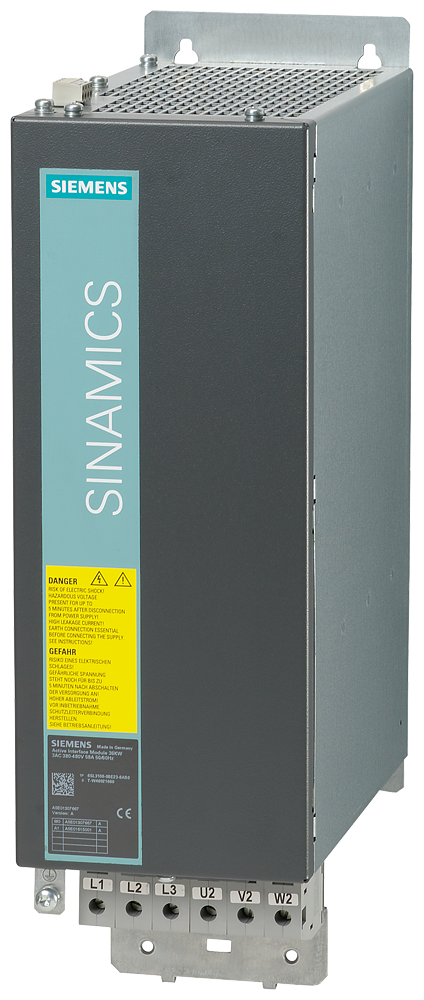

The Siemens 6SL3100-0BE23-6AB0 is a SINAMICS S120 Active Interface Module sized for the 36 kW Active Line Module, accepting a 3 AC 380-480 V, 50/60 Hz supply at up to 58 A input current. It provides the line-side filtering and decoupling reactance the Active Line Module needs for regenerative, sinusoidal-current operation in book-size drive configurations.

Selection Notes

This 36 kW-rated Active Interface Module is matched to its corresponding Active Line Module size — pick it when the line-side current stays within the 58 A rating rather than oversizing to the next frame. Its internal air cooling and 0.340 kW loss figure set the minimum enclosure airflow needed at 0.040 m³/s; undersized cabinet cooling raises the risk of thermal derating on the connected Active Line Module.

Applications

The 50 mm² conductor cross-section and 150 mm x 380 mm x 270 mm footprint keep this module compact for book-size cabinets where panel width is limited. Its 60 dB sound pressure level is a relevant figure for enclosure noise budgets in panels sited near operator stations.
