Siemens 6SL3055-0AA00-5KA3 SINAMICS SME125 Sensor Module EnDat PTC KTY IP67 VFD Accessory

% $-662.60

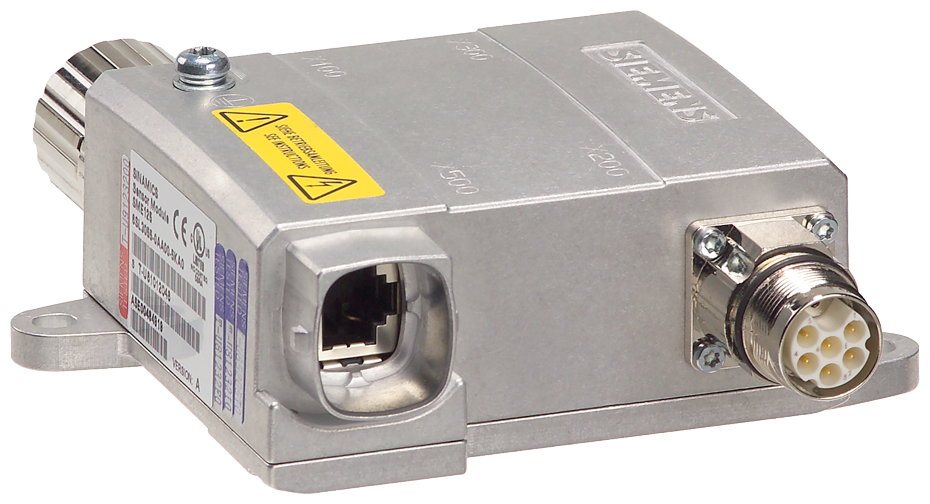

Siemens 6SL3055-0AA00-5KA3 SINAMICS SME125 sensor module - EnDat absolute encoder, PTC/KTY, IP67
Siemens 6SL3055-0AA00-5KA3 SINAMICS SME125 sensor module - EnDat absolute encoder, PTC/KTY, IP67

Siemens 6SL3055-0AA00-5KA3 SINAMICS SME125 Sensor Module EnDat PTC KTY IP67 VFD Accessory

Brand: Siemens
Reference No: 6SL3055-0AA00-5KA3
Catalog No: 6SL3055-0AA00-5KA3
Series: SINAMICS S120
Tariff Code (HS): 85049090
Rated Current: 0.16 A
Communication: DRIVE-CLiQ
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$662.60

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6SL3055-0AA00-5KA3 is a SINAMICS SME125 external sensor module for an EnDat absolute encoder with sin/cos 1 Vpp signals, a 100 kBaud SSI baud rate, and PTC/KTY temperature-sensor inputs with secure electrical isolation, rated IP67. It uses a 17-pin M23 measuring-system connector plus a separate 6-pin M17 temperature connector, drawing 0.16 A at 24 V DC; it is supplied without a DRIVE-CLiQ cable.

Technical Specifications

SKU / Order Number (MLFB) 6SL3055-0AA00-5KA3
Brand Siemens
Series SINAMICS S120
EAN 4042948662854
Encoder type EnDat absolute, sin/cos 1 Vpp signals, with PTC/KTY inputs (secure electrical isolation)
Encoder frequency, max. 500 kHz
SSI baud rate 100 kBaud
Measuring system connector 17-pin M23 circular connector
Temperature sensor connector 6-pin M17 circular connector
Output connector IP67 DRIVE-CLiQ connector
Degree of protection IP67
Power requirement (24 V DC) 0.16 A
Encoder interface voltage 5 V DC
Power loss, max. 4.5 W
Max. cable length to measuring system 3 m (9.84 ft)
Max. cable length to drive control 100 m (328.08 ft)
Net weight 0.70 kg (1.54 lb)
Width 117.6 mm (4.63 in)
Height 43.1 mm (1.70 in)
Depth 127.0 mm (5.00 in)
Country of Origin DE

Selection Notes

Choose the SME125 over the SME120 when the motor needs absolute position feedback (EnDat, SSI) instead of incremental sin/cos, and over the smaller SME25 when winding-temperature monitoring through the dedicated 6-pin M17 connector is also required. The SME125 is the only module in this sensor-module line-up combining EnDat absolute feedback with PTC/KTY isolation.

Technical Details

Short Description
SINAMICS SME125 sensor module, EnDat absolute encoder, PTC/KTY isolated inputs, IP67, 0.16 A at 24 V DC.
Rated Current (Ampere)
0.16 A
Protection Type
IP67
Catalog No
6SL3055-0AA00-5KA3
Delivery Date (Days)
10-15 days
Model Number
6SL3055-0AA00-5KA3
Tariff Code
85049090
